Description:

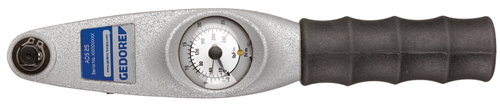

Enhance your industrial manufacturing processes with this precision torque wrench, offering controlled tightening and accurate measurement across a wide range of 08 - 200 Nm (7 lbf·in - 160 lbf·ft) Featuring a dual scale for easy reading, this dial-indicating wrench includes a slave pointer for enhanced functionality Choose from a 1/4", 3/8", or 1/2" double square drive with a reliable ball lock mechanism for both clockwise and counterclockwise operations.
Models No ADS 4 to No ADS 40 come integrated with a ratchet function, facilitating precise screw tightening and torque evaluations The tool boasts an impressive display accuracy of +/- 4% in accordance with DIN EN ISO 6789 standards, ensuring compliance with national benchmarks Its user-friendly double-tinted face presents dual scaling in Nm as well as lbf·in or lbf·ft, complemented by built-in overload protection: a mechanical stop that safeguards against 25% overload of the maximum value.
Constructed from lightweight and durable special aluminum, the wrench is finished in a sleek silver-grey and is equipped with black non-slip rubber grips for comfortable handling Additionally, this model complies with EPA standards, making it suitable for use in electrostatically sensitive environments and accompanied by a test certificate in line with DIN EN ISO 6789.
Features and Benefits:
•Dial-indicating torque wrench with dual scale and slave pointer.
•1/4", 3/8", or 1/2" double square drive with ball lock for both clockwise and anticlockwise tightening.
•Models No. ADS 4 to No. ADS 40 have integrated ratchet function.
•Display accuracy: +/- 4 % tolerance of the indicated value.
•Compliant with DIN EN ISO 6789, traceable to national standards.
•Built-in overload protection - mechanical stop up to 25% overload of maximum value.
•Aluminium housing with black non-slip rubber handgrips.
•EPA compliant for electrostatically sensitive applications.
•Production.
•Quality control.
•Maintenance and repair.
Specifications:
| Total height [mm] | 69 mm |
| Total length [mm] | 244 mm |
| Drive type/drive | Double square |
| Drive connector square [metric] | 10 mm |
| Drive square inch | 3/8" |
| Torque (min.) [lbf·in] | 360 lbf·in |
| Torque (max.) [lbf·in] | 72 lbf·in |
| Torque (max.) [Nm] | 40 Nm |
| Torque (min.) [Nm] | 8 Nm |
| Measurement accuracy | +/- 4% tolerance of the indicated value |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Graduation [lbf·in] | 10 lbf·in |
| Scale division [Nm] | 1 Nm |
