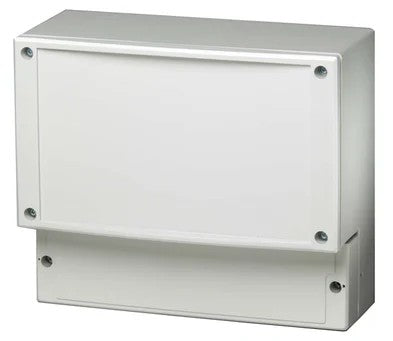

7520241 Opaque screw cover

Name: 7520241 Opaque screw cover
Brand: FIBOX
SKU: PC 25/22-FC3
Price: 11794.00 USD
Availability: InStock

SKU: SKU: PC 25/22-FC3 Download PDF

SET THE QTY:

Qty:

Now $11,794.00 Web pricing policy

~~BEFORE~~ Now $11,794.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Resources

Description:

The product is an opaque screw cover designed for various applications It is compliant with UL Type 1, 4, 4X, 12, and 13 The cover boasts an IP66 and IP67 ingress protection rating, signifying its suitability for demanding environments The casing is made from polycarbonate material, available in light grey (RAL 7035) for both the base and cover The product features a polyurethane gasket, ensuring reliable sealing against environmental factors.

It operates effectively within a temperature range of -40 to 175 °F (-40 to 80 °C) The design includes ratings for electrical insulation, impact resistance (IK07), and flammability grade rating UL94-5VA (f1).

Features and Benefits:

•IP66 and IP67 ingress protection rating.

•Impact resistance rating IK07.

•Made from durable polycarbonate material.

•Temperature range: -40 to 175 °F (-40 to 80 °C).

•UL Type ratings ensure compliance for various applications.

Specifications:

Dimensions (inches)	10.1 x 8.6 x 5.3
Dimensions (mm)	257 x 219 x 135
Material	Polycarbonate
Base color	RAL 7035 - light grey
Cover color	RAL 7035 - light grey
Gasket material	Polyurethane
Temperature °F (continuous)	-40 … 175
Temperature °C (continuous)	-40 … 80
UL/cUL Type	Type 1, 4, 4X, 12, and 13
Ingress Protection (EN 60529)	IP66; IP67
Impact Resistance (EN 62262)	IK07
Electrical insulation	Totally insulated
Halogen free	No
UV resistance	UL 508
Flammability Rating	UL94-5VA (f1)/ Cover: UL94-V0 (f1)
Glow Wire Test (IEC 60695)	960 °C
