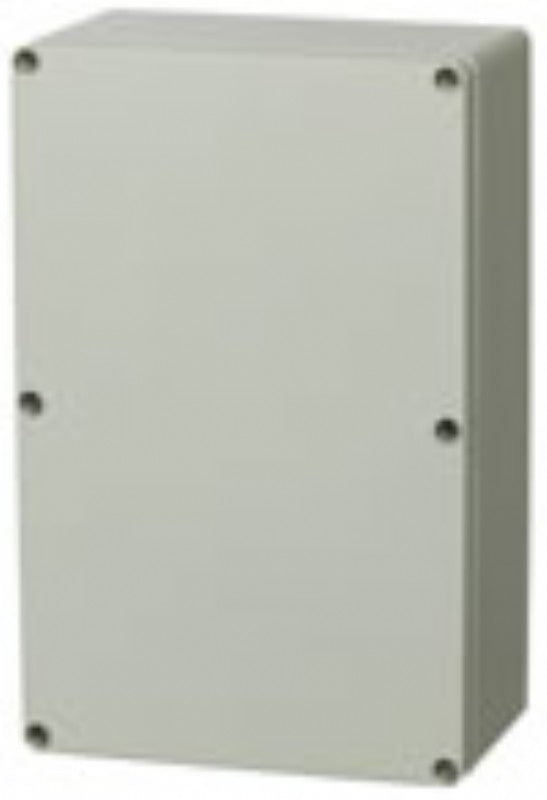

7032810 Enclosure, PC

7032810 Enclosure, PC

SKU: UL PC 162409 Download PDF

Now $11,974.00
BEFORE   Now $11,974.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Enclosure, PC Grey cover UL Type NEMA Type 1, 4, 4X, 12 and 13; IP66 IP67; IK07 IK08 Including: Base with screws for mounting plate/DIN-rail cover with PUR gasket and stainless steel cover screws.

Specifications:

 Dimensions (inches) 9.6 x 6.5 x 3.5
 Dimensions (mm) 244 x 164 x 90
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (°F, continuous) -40 … 175
 Temperature (°C, continuous) -40 … 80
 UL/cUL Type UL/cUL Type 1, 4, 4X, 12 and 13
 Ingress Protection IP66 IP67
 Impact Resistance IK07 IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL 746C 5
 Glow Wire Test 960 °C
