7032610 Enclosure, PC

7032610 Enclosure, PC

SKU: UL PC 081209   Download PDF

Qty:
Now $5,083.00   Web pricing policy
BEFORE   Now $5,083.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

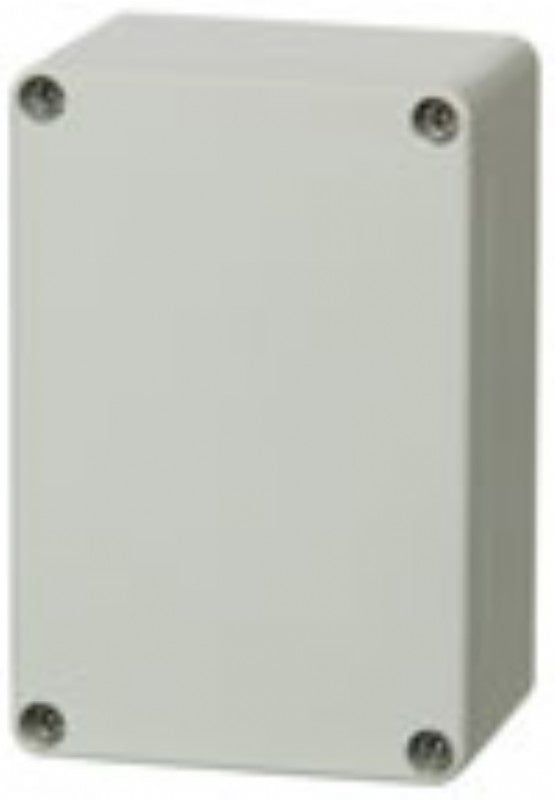

Enclosure, PC features a grey cover and is manufactured from polycarbonate It is designed to comply with UL/cUL Types 1, 4, 4X, 12, and 13, providing IP66 and IP67 ingress protection, along with IK07 and IK08 impact resistance The enclosure is equipped with a base that includes screws for mounting on a plate or DIN rail, and a cover that has a polyurethane gasket and stainless steel cover screws.

Specifications:

 Dimensions (Height): 4.7 inches (120 mm)
 Dimensions (Width): 3.1 inches (80 mm)
 Dimensions (Depth): 3.5 inches (90 mm)
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: RAL 7035 - light grey
 Gasket material: Polyurethane
 Temperature (continuous °F): -40 … 175
 Temperature (continuous °C): -40 … 80
 UL/cUL Type: UL/cUL Type 1, 4, 4X, 12 and 13
 Ingress Protection: IP66IP67
 Impact Resistance: IK07IK08
 Electrical insulation: Totally insulated
 Halogen free: No
 UV resistance: UL 508
 Flammability Rating: UL 746C 5
 Glow Wire Test: 960 °C
