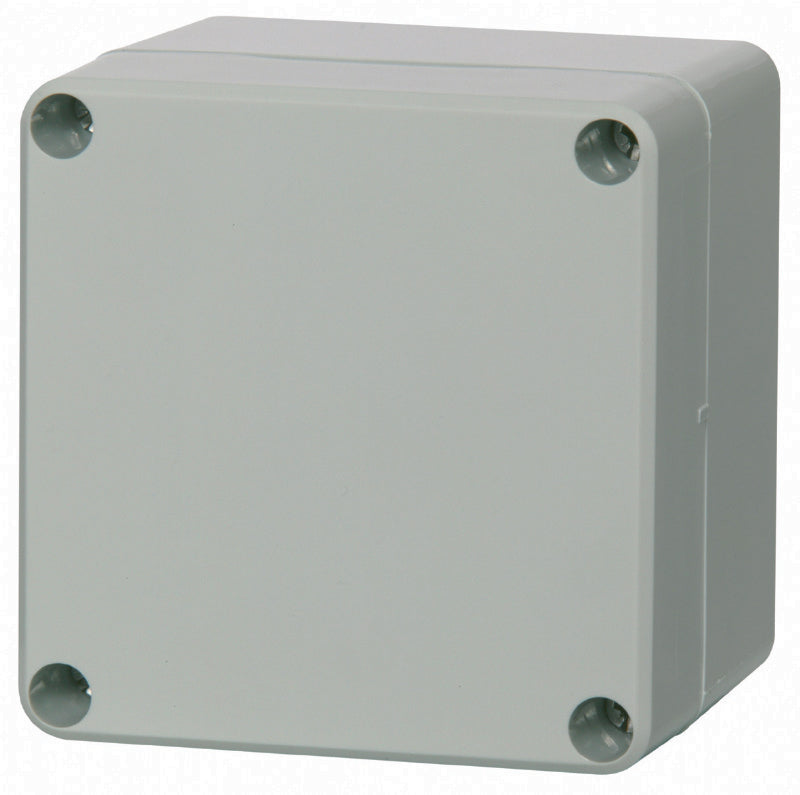

7032550 Enclosure, PC

7032550 Enclosure, PC

SKU: UL PC 080809 Download PDF

Now $4,707.00
BEFORE   Now $4,707.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product is a polycarbonate enclosure designed for various environments It features a grey cover, providing reliable protection and durability for enclosed components With a height of 32 inches, width of 31 inches, and depth of 33 inches, it offers ample space for housing equipment The enclosure is compatible with UL/cUL Type 1, 4, 4X, 12, and 13, and has an Ingress Protection rating of IP66 and IP67, ensuring excellent resistance to water and dust.

It is rated IK07 and IK08 for impact resistance, demonstrating its robustness The operating temperature ranges from -40 to 175°F, suitable for a variety of applications.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •Ingress Protection rated IP66 and IP67 forwater and dust resistance.

    •Impact Resistant with IK07 and IK08 ratings.

    •Suitable for a wide temperature range from -40 to 175°F.

    •UL/cUL Type 1, 4, 4X, 12, and 13 compliant for various applications.

    •Grey cover color with light grey base color for easy integration.

Specifications:

 Dimensions (inches): 3.2 x 3.1 x 3.3
 Dimensions (mm): 82 x 80 x 85
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: RAL 7035 -light grey
 Gasket material: Polyurethane
 Temperature (continuous °F): -40 … 175
 Temperature (continuous °C): -40 … 80
 UL/cUL Type: Type 1, 4, 4X, 12 and 13
 Ingress Protection: IP66, IP67
 Impact Resistance: IK07, IK08
 Electrical insulation: Totally insulated
 Halogen free: No
 UV resistance: UL 508
 Flammability Rating: UL 746C 5
 Glow Wire Test: 960 °C
