7022771 Enclosure, PC

7022771 Enclosure, PC

SKU: UL PCT 122009 Download PDF

Now $9,155.00
BEFORE   Now $9,155.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

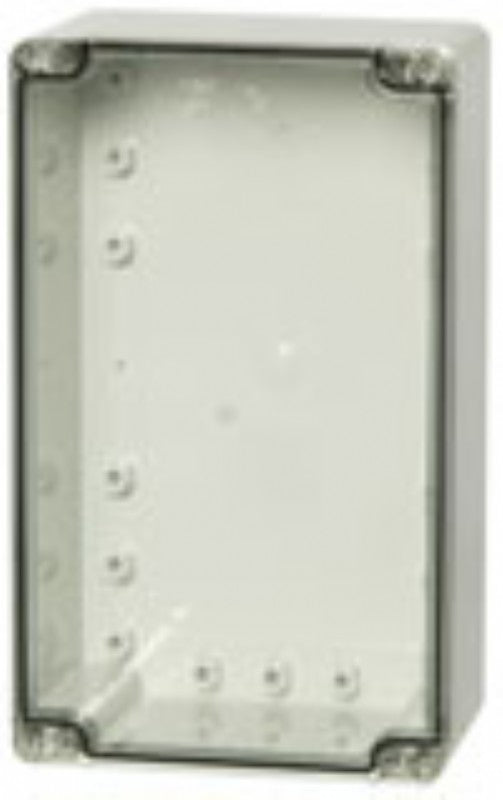

Enclosure, PC with clear cover The enclosure is suitable for various environmental conditions, meeting multiple UL Type standards including NEMA Type 1, 4, 4X, 12 and 13 It features a base with screws for mounting plate/DIN-rail and a cover with PUR gasket and stainless steel cover screws.

Specifications:

 Height (inch) 7.9
 Width (inch) 4.7
 Depth (inch) 3.5
 Height (mm) 200
 Width (mm) 120
 Depth (mm) 90
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Clear
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL Type 1, 4, 4X, 12 and 13
 Ingress Protection (EN 60529) IP66IP67
 Impact Resistance (EN 62262) IK07IK08
 Electrical insulation Totally insulated
 Halogen free (DIN/VDE 0472, Part 815) No
 UV resistance UL 508
 Flammability Rating UL 746C 5
 Glow Wire Test (IEC 60695) 960 °C
