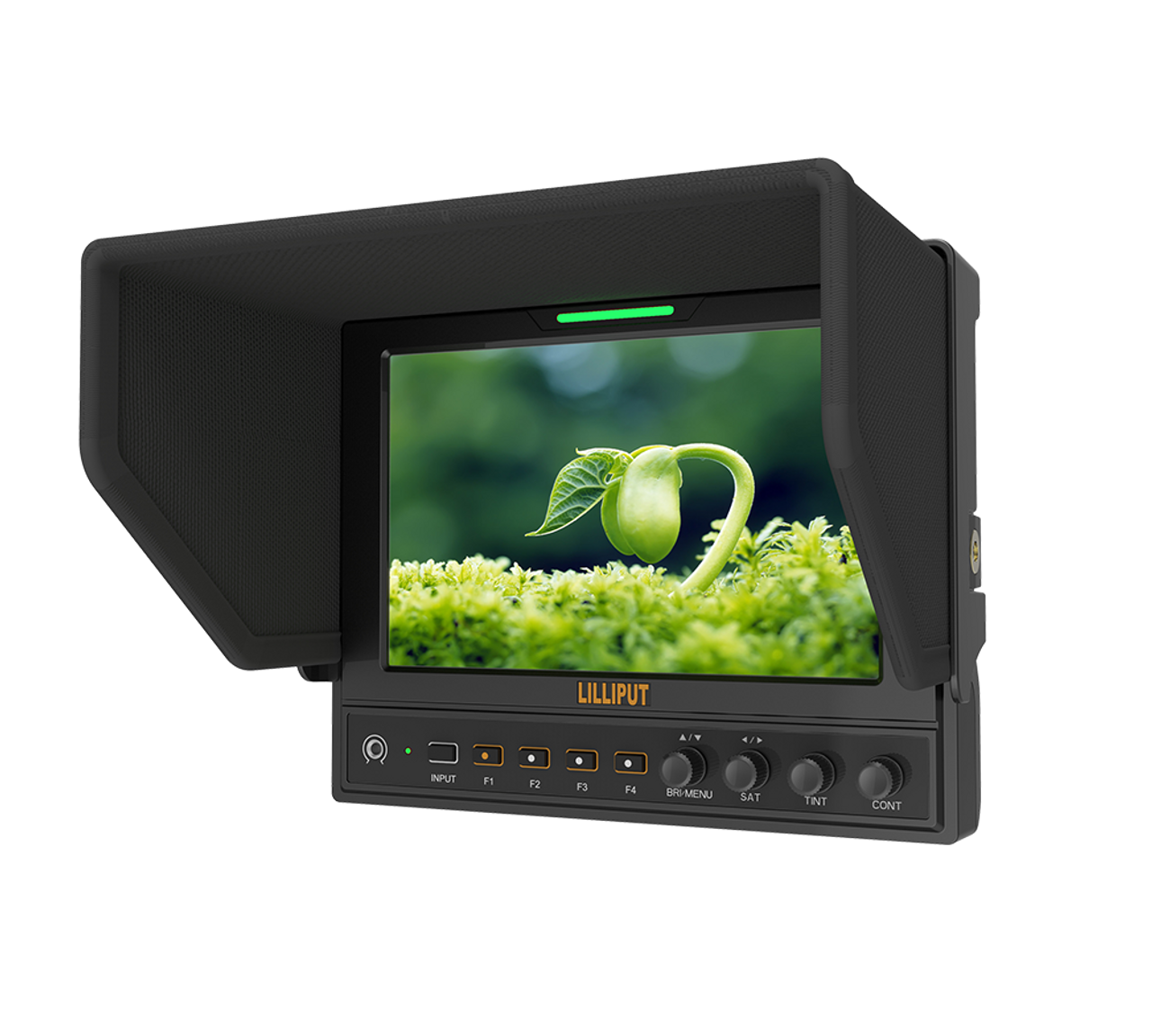

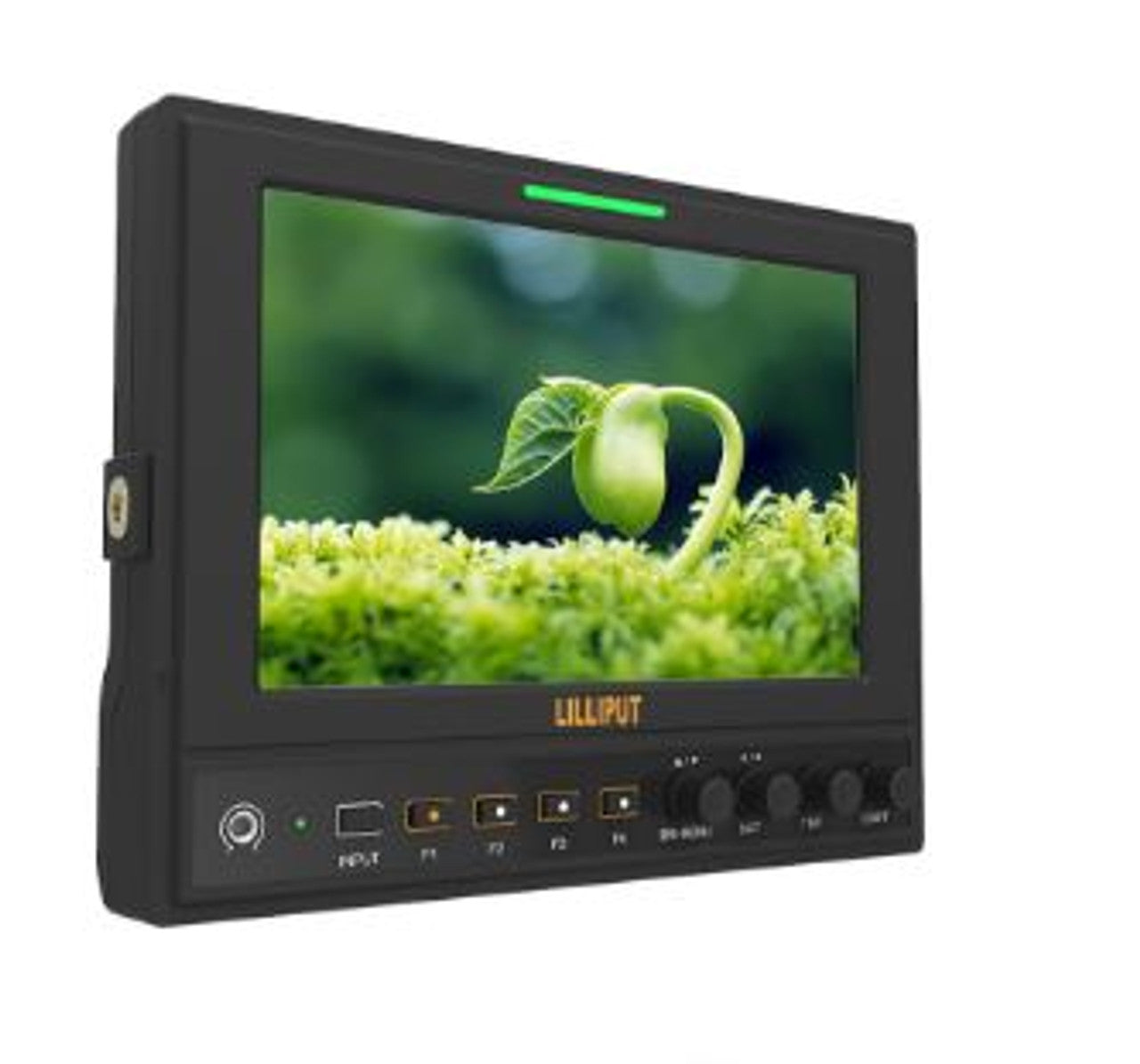

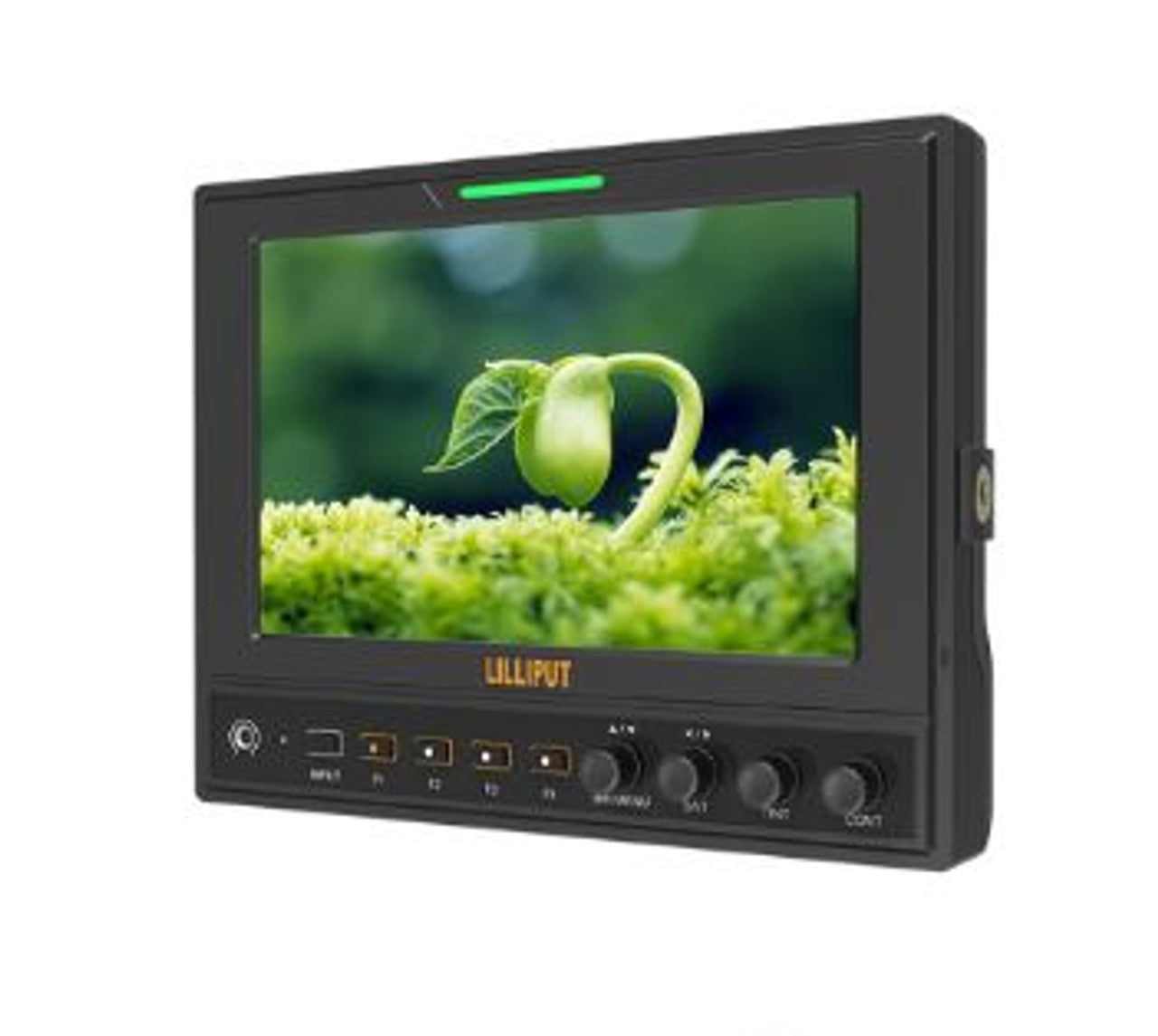

662/S 7 inch camera top monitor
662/S 7 inch camera top monitor
SKU: SKU: 662/S
Couldn't load pickup availability
Description:
The Lilliput 662/S is a 7 inch 16:9 metal framed LED field monitor with SDI & HDMI cross conversion The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output The Lilliput 662/S monitor has a 1280×800 resolution, 7″ IPS panel, perfect combination for use and the ideal size to fit neatly in a camera bag.
Compact size and peaking functionality are the perfect complements to your Full HD Camcorder’s features Customers frequently asked Lilliput how to prevent their monitor’s LCD from getting scratched, especially in transit Lilliput responded by designing 662′s smart screen protector that folds out to become a sun hood This solution provides protection for the LCD and saves space in the customers camera bag.
662/S includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor – no annoying HDMI splitters required The second monitor can be any size and picture quality will not be affected 662/S uses the latest IPS LED-backlit display panels that feature higher physical resolutions, providing higher levels of detail and image accuracy The 800:1 contrast ratio produces colours that are vivid, rich – and importantly – accurate.
Since Lilliput introduced the complete range of HDMI monitors, numerous requests from customers were made for enhancements to improve the offering Some features have been included as standard on 662/S, allowing users to customize the 4 programmable function buttons (namely F1, F2, F3, F4) for shortcut operation according to different needs With a stunning 178 degrees viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing.
Features and Benefits:
•SDI and HDMI cross conversion.
•7 inch monitor with 1280×800 resolution.
•3G-SDI, HDMI, and component & composite through BNC connectors.
•Optimised for Full HD Camcorders.
•Foldable sunhood to protect screen during transit.
•HDMI video output for easy duplication on a second monitor.
•High resolution with IPS LED-backlit display panels.
•Super-high contrast ratio of 800:1.
•Customizable function buttons for various operations.
•178 degrees viewing angle for vivid picture.
•Compact size for easy transport.
Specifications:
| Display Size: | 7 inches |
| Resolution: | 1280×800, supports up to 1920×1080 |
| Brightness: | 400 cd/m² |
| Aspect Ratio: | 16:10 |
| Contrast Ratio: | 800:1 |
| Viewing Angle: | 178°/178°(H/V) |
| Input HDMI: | 1 |
| Input 3G-SDI: | 1 |
| Input YPbPr: | 3(BNC) |
| Input VIDEO: | 1 |
| Input AUDIO: | 1 |
| Output HDMI: | 1 |
| Output 3G-SDI: | 1 |
| Output AUDIO: | 1 |
| Speaker: | 1(built-in) |
| Ear Phone Slot: | 1 |
| Current: | 900mA |
| Input Voltage: | DC7-24V(XLR) |
| Power Consumption: | ≤11W |
| Battery Plate: | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
| Operating Temperature: | -20℃ ~ 60℃ |
| Storage Temperature: | -30℃ ~ 70℃ |
| Dimension(LWD): | 191.5×152×31 / 141mm (with cover) |
| Weight: | 760g / 938g (with cover)/ 2160g (with suitcase) |
