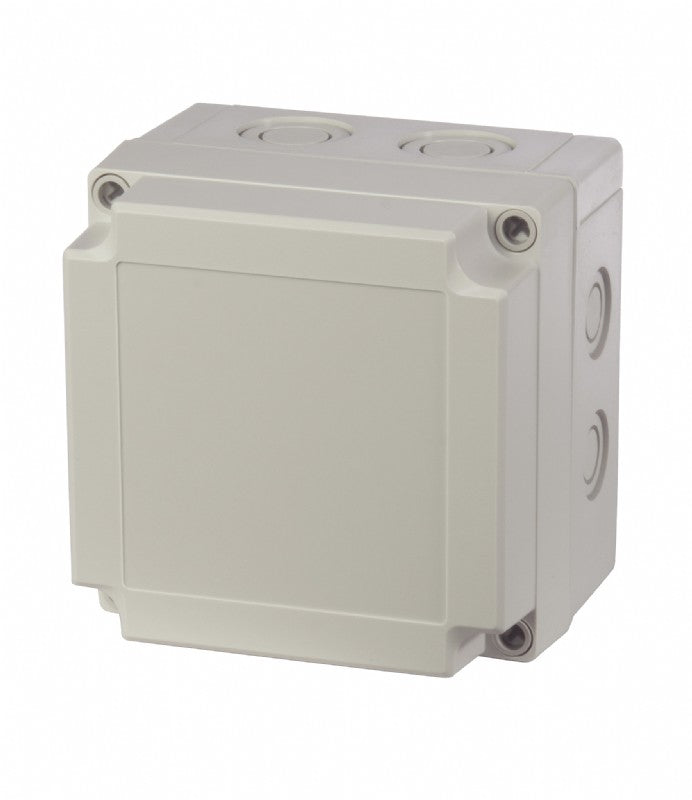

6416342 Polycarbonate Enclosure

6416342 Polycarbonate Enclosure

SKU: UL PCM 175/150 XG   Download PDF

Qty:
Now $11,573.00   Web pricing policy
BEFORE   Now $11,573.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

71 x 71 x 59 inch polycarbonate enclosure with gray cover and metric knock-out base This product is designed to provide robust protection with an ingress protection rating of IP66 and IP67 The enclosure is suitable for various applications including UL Type 1, 4, 4x and 6 environments, making it ideal for outdoor and industrial usage The material used is a high-quality polycarbonate, ensuring durability and UV resistance.

It is equipped with a polyurethane gasket that provides excellent sealing and protection against environmental factors The product dimensions are specifically designed to accommodate various installation needs while maintaining a compact form factor.

Specifications:

 Dimensions: 7.1 x 7.1 x 5.9 inch
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: RAL 7035 -light grey
 Gasket material: Polyurethane
 Temperature °F (continuous): -40 … 175
 Temperature °C (continuous): -40 … 80
 UL/cUL Type: 1, 4, 4x and 6;
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK08
 Electrical insulation: Totally insulated
 Halogen free (DIN/VDE 0472, Part 815): No
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
