6416336 UL PCM 150/150 XG

6416336 UL PCM 150/150 XG

SKU: UL PCM 150/150 XG   Download PDF

Qty:
Now $7,231.00   Web pricing policy
BEFORE   Now $7,231.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

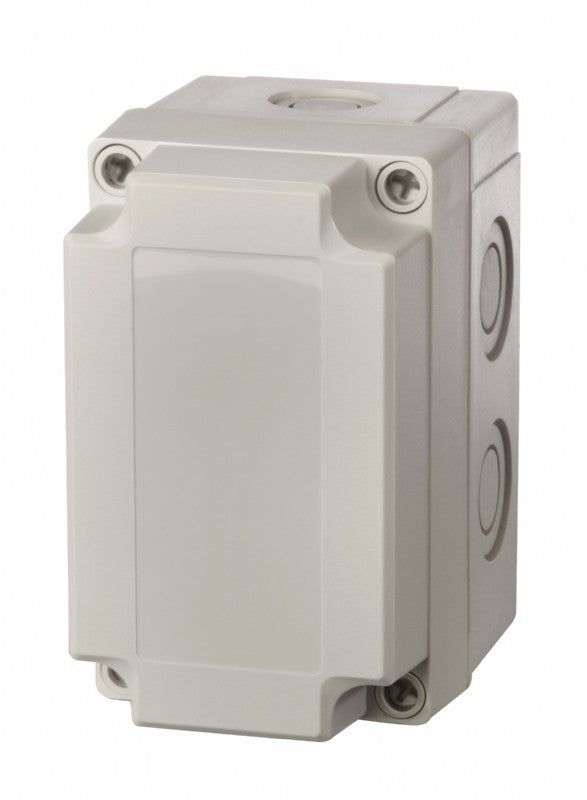

71 x 51 x 59 inch polycarbonate enclosure with gray cover and metric knock-out base.

Features and Benefits:

    •Base with PUR gasket..

    •Screws for mounting plate/DIN-rail and cover with polyamide cover screws..

    •Designed for multiple UL types 1, 4, 4x, and 6..

    •Ingress Protection (EN 60529) rated IP66 and IP67..

    •Impact Resistance (EN 62262) rated IK08..

Specifications:

 Dimensions (inch) 7.1 x 5.1 x 5.9
 Dimensions (mm) 180 x 130 x 150
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK08
 Electrical insulation Totally insulated
 Halogen free (DIN/VDE 0472, Part 815) No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
