Home / 6416335 - UL PCM 150/125 XG
1 1

6416335 - UL PCM 150/125 XG

6416335 - UL PCM 150/125 XG

SKU: UL PCM 150/125 XG Download PDF

Now $7,037.00
BEFORE   Now $7,037.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

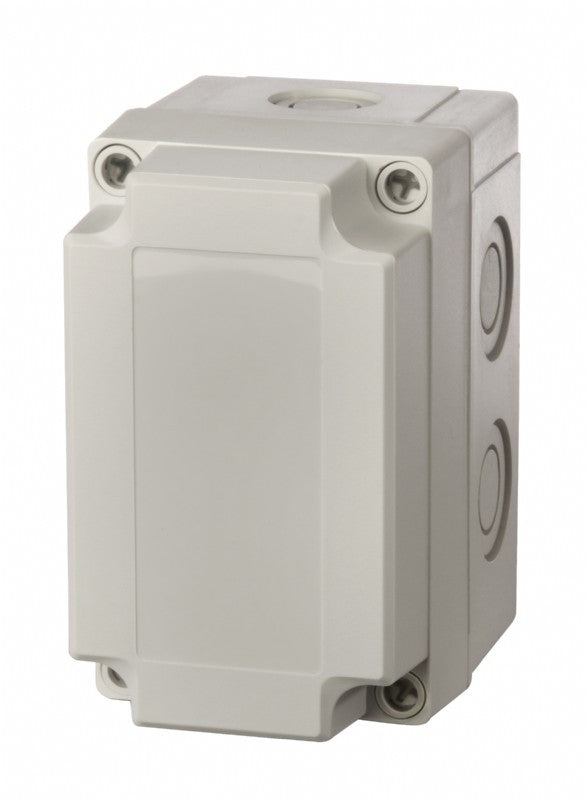

71 x 51 x 49 inch polycarbonate enclosure with gray cover and metric knock-out base.

Features and Benefits:

    •Base with PUR gasket.

    •Screws for mounting plate/DIN-rail.

    •Cover with polyamide cover screws.

    •UL Type ratings: 1, 4, 4x and 6.

    •Ingress protection rating: IP66 and IP67.

    •Impact resistance rating: IK08.

Specifications:

 Dimensions Height (inch) 7.1
 Dimensions Width (inch) 5.1
 Dimensions Depth (inch) 4.9
 Dimensions Height (mm) 180
 Dimensions Width (mm) 130
 Dimensions Depth (mm) 125
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (continuous) °F -40 … 175
 Temperature (continuous) °C -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
