6416322 - Polycarbonate Enclosure

6416322 - Polycarbonate Enclosure

SKU: UL PCM 175/125 G Download PDF

Now $8,727.00
BEFORE   Now $8,727.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

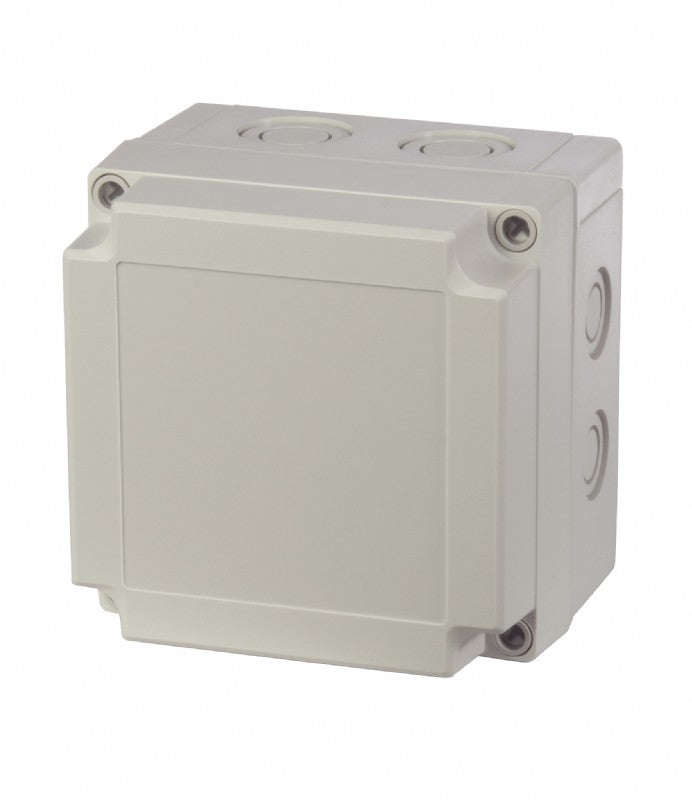

71 x 71 x 49 inch polycarbonate enclosure with gray cover and metric knock-out base This product includes base with PUR gasket, screws for mounting plate/DIN-rail and cover with polyamide cover screws.

Features and Benefits:

    •Dimensions are 7.1 x 7.1 x 4.9 inches.

    •Made from lightweight and durable polycarbonate.

    •Gray cover and metric knock-out base.

    •Includes screws for mounting and secure cover.

Specifications:

 Height (inch) 7.1
 Width (inch) 7.1
 Depth (inch) 4.9
 Height (mm) 180
 Width (mm) 180
 Depth (mm) 125
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
