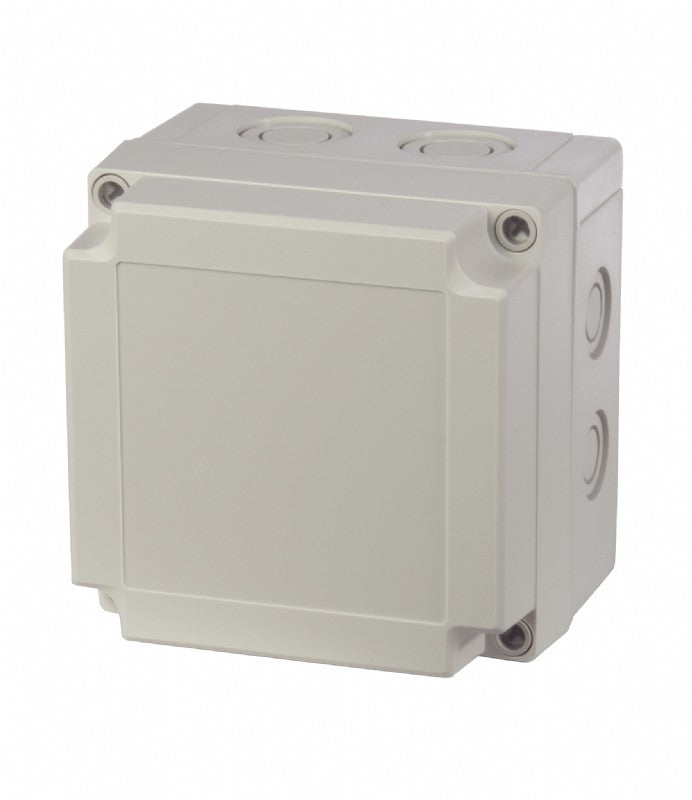

6416321 7.1 x 7.1 x 3.9 inch polycarbonate enclosure with gray cover and metric knock-out base

6416321 7.1 x 7.1 x 3.9 inch polycarbonate enclosure with gray cover and metric knock-out base

SKU: UL PCM 175/100 G   Download PDF

Qty:
Now $8,053.00   Web pricing policy
BEFORE   Now $8,053.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

71 x 71 x 39 inch polycarbonate enclosure with gray cover and metric knock-out base.

Features and Benefits:

    •Base with PUR gasket.

    •Screws for mounting plate/DIN-rail and cover with polyamide cover screws.

    •Grey Cover.

Specifications:

 Dimensions Height (inch): 7.1
 Dimensions Width (inch): 7.1
 Dimensions Depth (inch): 3.9
 Dimensions Height (mm): 180
 Dimensions Width (mm): 180
 Dimensions Depth (mm): 100
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: RAL 7035 -light grey
 Gasket material: Polyurethane
 Temperature °F (continuous): -40 … 175
 Temperature °C (continuous): -40 … 80
 UL/cUL Type: 1, 4, 4x and 6
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK08
 Electrical insulation: Totally insulated
 Halogen free (DIN/VDE 0472, Part 815): No
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
