6416320 UL PCM 175/75 G

Name: 6416320 UL PCM 175/75 G
Brand: FIBOX
SKU: UL PCM 175/75 G
Price: 7816.00 USD
Availability: InStock

SKU: SKU: UL PCM 175/75 G Download PDF

SET THE QTY:

Qty:

Now $7,816.00 Web pricing policy

~~BEFORE~~ Now $7,816.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

Product Information

Resources

Description:

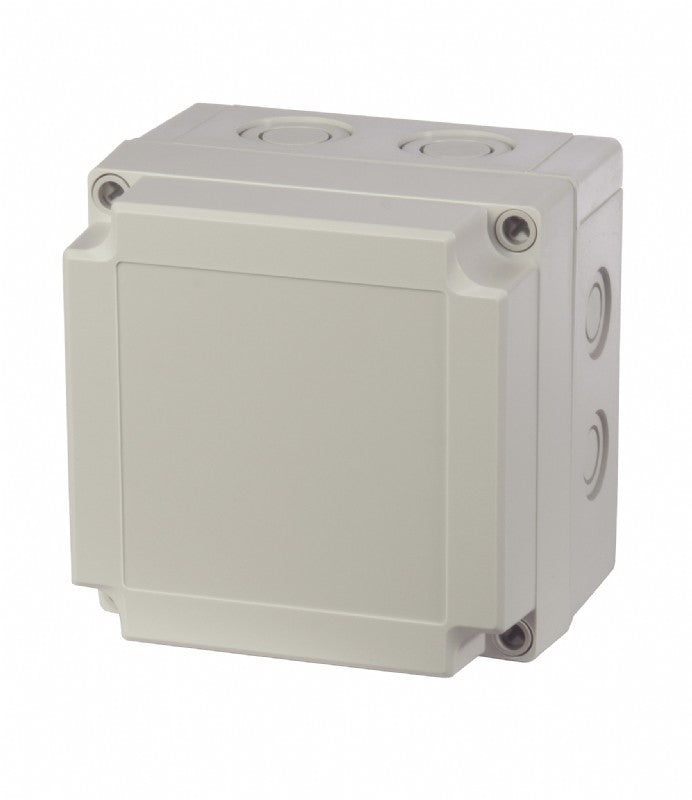

71 x 71 x 3 inch polycarbonate enclosure with gray cover and metric knock-out base.

Features and Benefits:

•Gray cover.

•Base with PUR gasket.

•Includes screws for mounting plate/DIN-rail and cover.

Specifications:

Dimensions	Height (inch): 7.1, Width (inch): 7.1, Depth (inch): 3, Height (mm): 180, Width (mm): 180, Depth (mm): 75
Material	Polycarbonate
Base color	RAL 7035 -light grey
Cover color	RAL 7035 -light grey
Gasket material	Polyurethane
Temperature (°F)	-40 … 175
Temperature (°C)	-40 … 80
UL/cUL Type	1, 4, 4x and 6
Ingress Protection (EN 60529)	IP66; IP67
Impact Resistance (EN 62262)	IK08
Electrical insulation	Totally insulated
Halogen free	No
UV resistance	UL 508
Flammability Rating	UL94-5VA (f1)
Glow Wire Test (IEC 60695)	960 °C
