6416319 UL PCM 175/60 G

6416319 UL PCM 175/60 G

SKU: UL PCM 175/60 G Download PDF

Now $7,811.00
BEFORE   Now $7,811.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

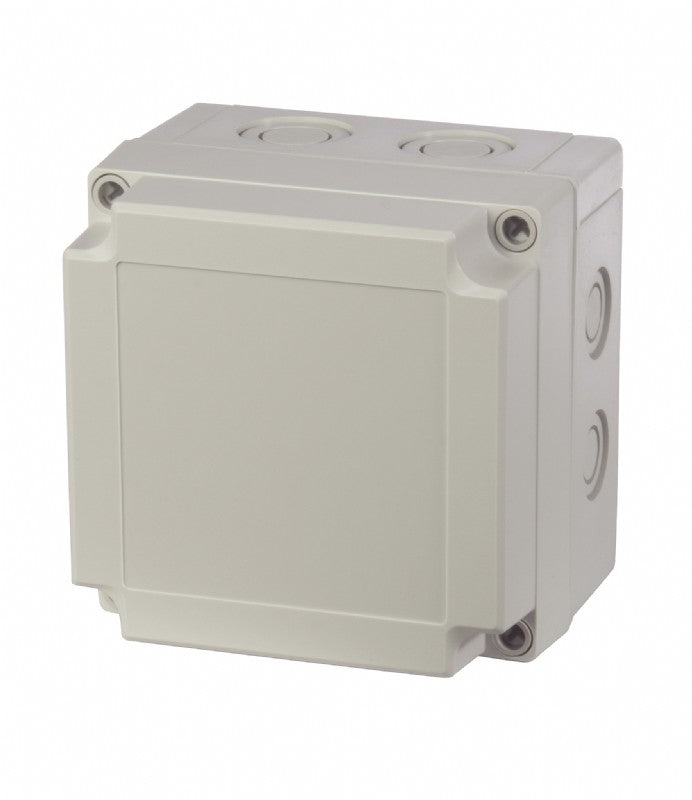

71 x 71 x 24 inch polycarbonate enclosure with gray cover and metric knock-out base.

Features and Benefits:

    •UL Type 1, 4, 4x and 6 rated.

    •Ingress Protection IP66 and IP67.

    •Impact Resistance IK08.

    •Totally insulated electrical insulation.

    •Halogen free.

Specifications:

 Dimensions: 7.1 x 7.1 x 2.4 inches
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: RAL 7035 -light grey
 Gasket material: Polyurethane
 Temperature °F (continuous): -40 … 175
 Temperature °C (continuous): -40 … 80
 UL/cUL Type: 1, 4, 4x and 6;
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK08
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
