6416316 UL PCM 150/125 G

6416316 UL PCM 150/125 G

SKU: UL PCM 150/125 G   Download PDF

Qty:
Now $6,543.00   Web pricing policy
BEFORE   Now $6,543.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

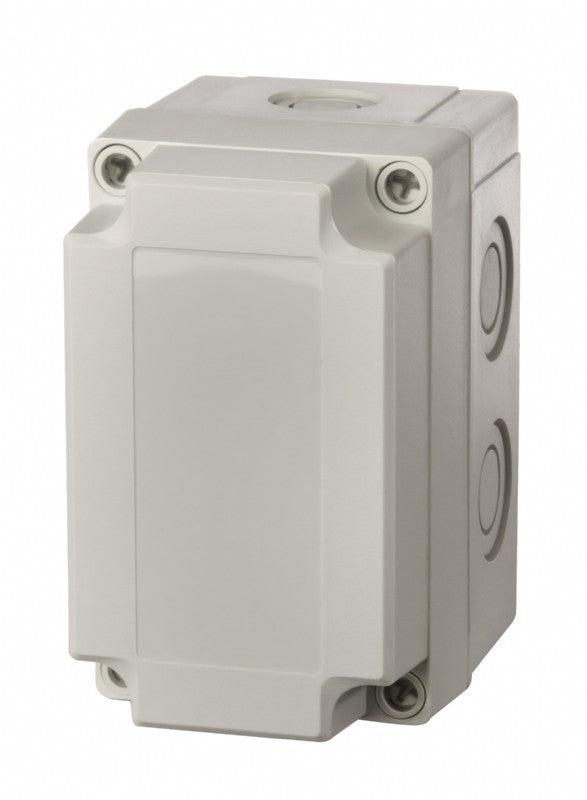

71 x 51 x 49 inch polycarbonate enclosure with gray cover and metric knock-out base.

Features and Benefits:

    •7.1 x 5.1 x 4.9 inch size.

    •Polycarbonate material.

    •Ingress protection rated IP66 and IP67.

    •Impact resistance rated IK08.

    •Temperature range from -40 to 175 ºF.

    •Totally insulated electrical design.

    •Halogen free.

    •UV resistance per UL 508.

    •Flammability rating UL94-5VA (f1).

    •Glow wire test at 960 ºC.

Specifications:

 Dimensions (inches) Height: 7.1, Width: 5.1, Depth: 4.9
 Dimensions (mm) Height: 180, Width: 130, Depth: 125
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature range (°F) -40 to 175
 Temperature range (°C) -40 to 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
