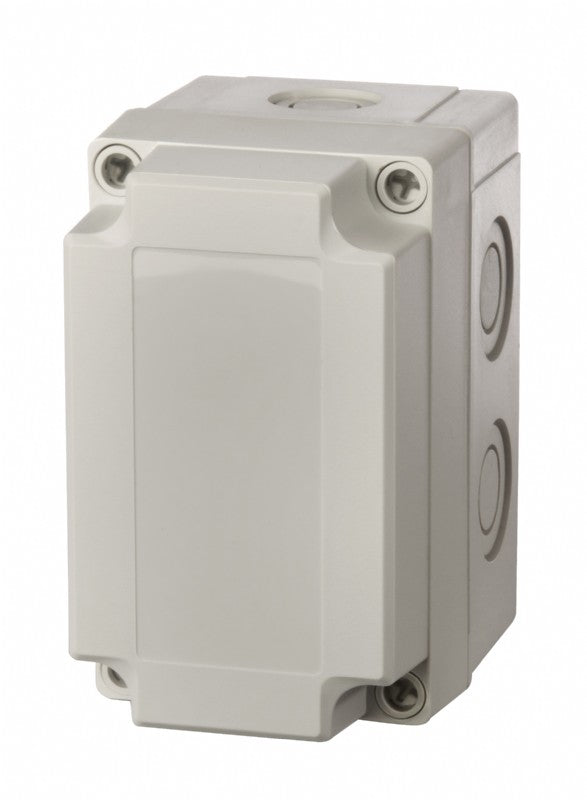

6416314 - 7.1 x 5.1 x 3 inch polycarbonate enclosure with gray cover and metric knock-out base

6416314 - 7.1 x 5.1 x 3 inch polycarbonate enclosure with gray cover and metric knock-out base

SKU: UL PCM 150/75 G   Download PDF

Qty:
Now $6,201.00   Web pricing policy
BEFORE   Now $6,201.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The product is a polycarbonate enclosure measuring 71 x 51 x 3 inches with a gray cover and a base that includes metric knock-outs It is designed for various outdoor and indoor electrical applications, providing durability and protection.

Features and Benefits:

    •Made from lightweight polycarbonate material.

    •Gray cover and base color RAL 7035 - light grey.

    •Suitable for UL/cUL Types 1, 4, 4x, and 6.

    •High ingress protection ratings: IP66 and IP67.

    •Impact resistant with IK08 rating.

    •Operational temperature range of -40 to 175 °F (-40 to 80 °C).

Specifications:

 Dimensions 7.1 x 5.1 x 3 inches
 Height (mm) 180
 Width (mm) 130
 Depth (mm) 75
 Material Polycarbonate
 Gasket material Polyurethane
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66, IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
