6415330 UL PCM 200/88 XG

6415330 UL PCM 200/88 XG

SKU: UL PCM 200/88 XG Download PDF

Now $14,326.00
BEFORE   Now $14,326.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

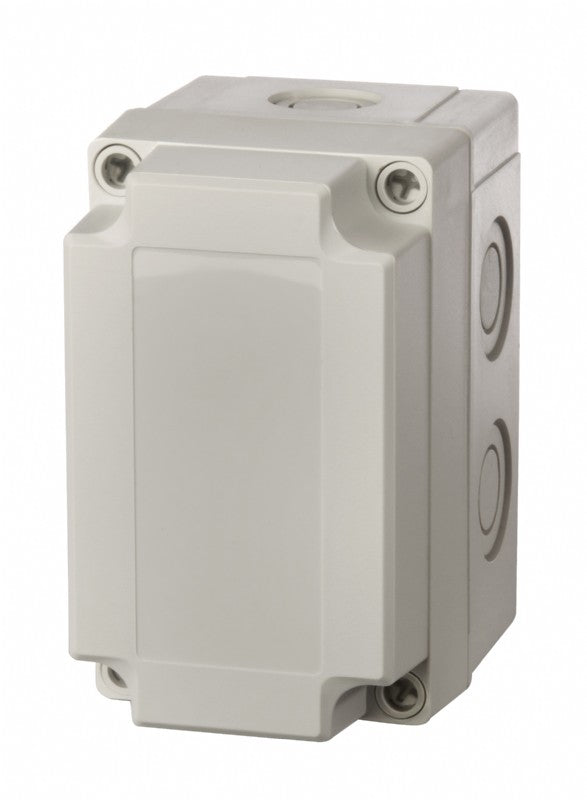

10 x 71 x 35 inch polycarbonate enclosure with gray cover and metric knock-out base.

Features and Benefits:

    •UL Type 1, 4, 4X, 6 & 6P: IP66; IP67; IK08.

    •Base with PUR gasket and screws for mounting plate/DIN-rail.

    •Constructed with polycarbonate for durability.

    •Light grey base and cover (RAL 7035).

    •Totally insulated electrical insulation.

    •UV resistance to UL 508 standards.

    •Flammability Rating UL94-5VA (f1).

Specifications:

 Dimensions (inch) 10 x 7.1 x 3.5
 Dimensions (mm) 255 x 180 x 88
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (°F): -40 … 175
 Temperature (°C): -40 … 80
 UL/cUL Type 1, 4, 4X, 6 & 6P
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Halogen free No
 Glow Wire Test 960 °C
