6413927 Polycarbonate Enclosure

6413927 Polycarbonate Enclosure

SKU: UL PC 200/125 XHT Download PDF

Now $14,091.00
BEFORE   Now $14,091.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

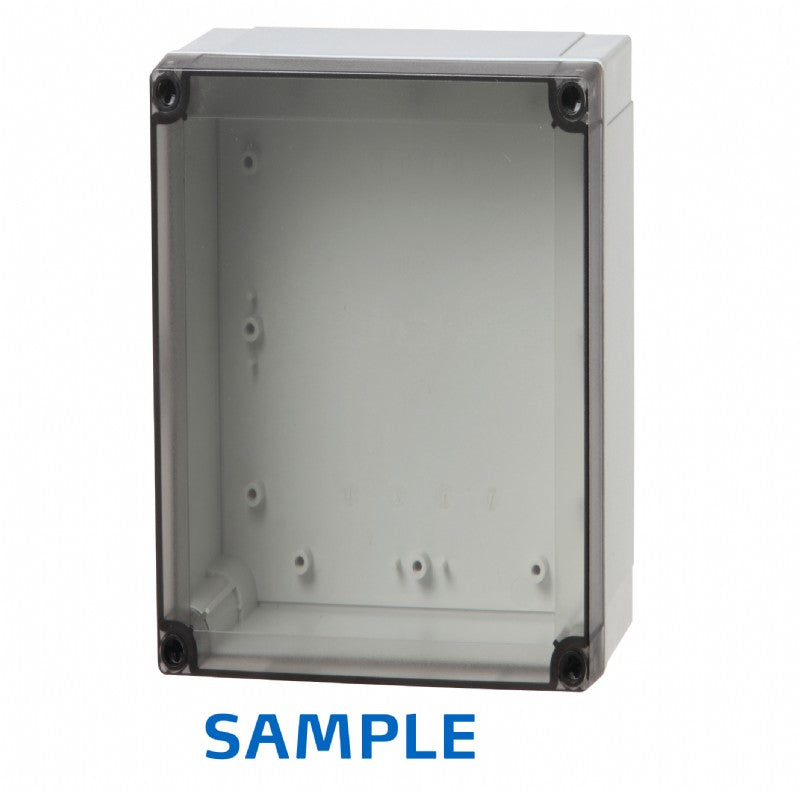

10 x 71 x 49 inch polycarbonate enclosure with grey cover The enclosure is designed to meet UL/cUL Type 1, 4, 4x, and 6 ratings and features IP66 and IP67 ingress protection It has a base with a PUR gasket, screws for mounting plate/DIN-rail, and cover with polyamide cover screws.

Features and Benefits:

    •Dimensions: 10 x 7.1 x 4.9 inches.

    •Material: Polycarbonate.

    •Base color: RAL 7035 - light grey.

    •Cover color: Transparent Grey.

    •Gasket material: Polyurethane.

    •Ingress Protection: IP66; IP67.

    •Impact Resistance: IK08.

    •Electrical insulation: Totally insulated.

    •UV resistance: UL 508.

    •Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1).

    •Glow Wire Test: 960 °C.

Specifications:

 Height (inch) 10
 Width (inch) 7.1
 Depth (inch) 4.9
 Height (mm) 255
 Width (mm) 180
 Depth (mm) 125
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Halogen free No
 Gasket material Polyurethane
