6413343 - Ultra Light Polycarbonate Enclosure

6413343 - Ultra Light Polycarbonate Enclosure

SKU: UL PC 175/175 XHG   Download PDF

Qty:
Now $11,747.00   Web pricing policy
BEFORE   Now $11,747.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

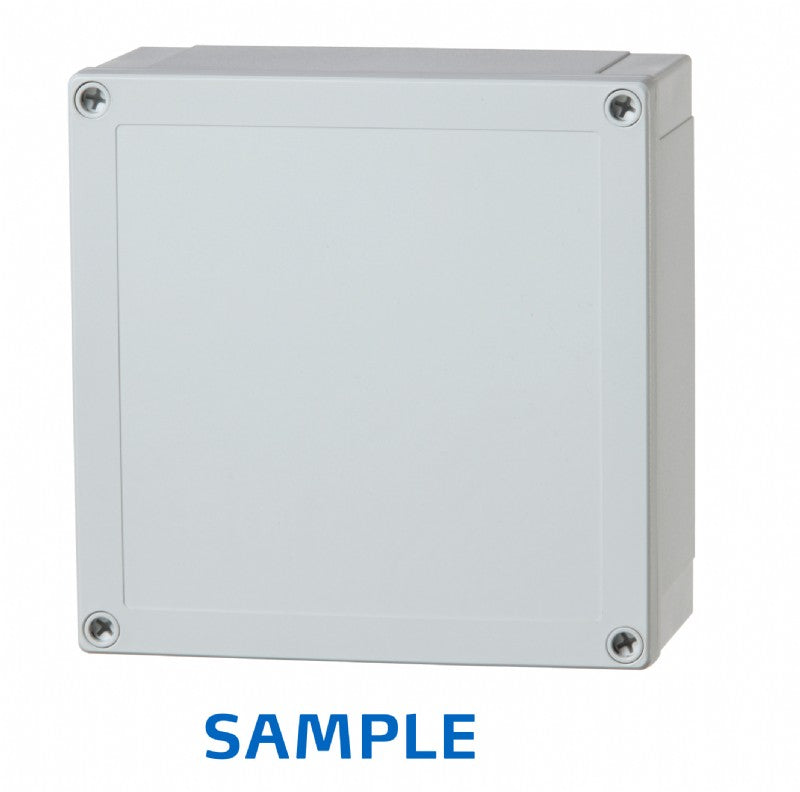

71 x 71 x 69 inch polycarbonate enclosure with grey cover This enclosure is designed to meet UL Type 1, 4, 4x and 6 with an ingress protection rating of IP66 and IP67 It includes a base with a PUR gasket, screws for mounting plate/DIN-rail and cover with polyamide cover screws.

Features and Benefits:

    •Polycarbonate construction for durability.

    •Light grey base and cover for a neutral appearance.

    •Includes mounting screws for convenience.

    •IP66 and IP67 rated for water and dust resistance.

    •Impact resistance rating of IK08.

    •Electrical insulation ensures safety.

    •Halogen free for environmental compliance.

    •UV resistance for prolonged outdoor use.

    •Flammability rating of UL94-5VA.

Specifications:

 Dimensions (inch): 7.1 x 7.1 x 6.9
 Dimensions (mm): 180 x 180 x 175
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: RAL 7035 - light grey
 Gasket material: Polyurethane
 Temperature (°F continuous): -40 … 175
 Temperature (°C continuous): -40 … 80
 UL/cUL Type: 1, 4, 4x and 6
 Ingress Protection (IP): IP66; IP67
 Impact Resistance (IK): IK08
 Electrical insulation: Totally insulated
 Halogen free: No
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test: 960 °C
