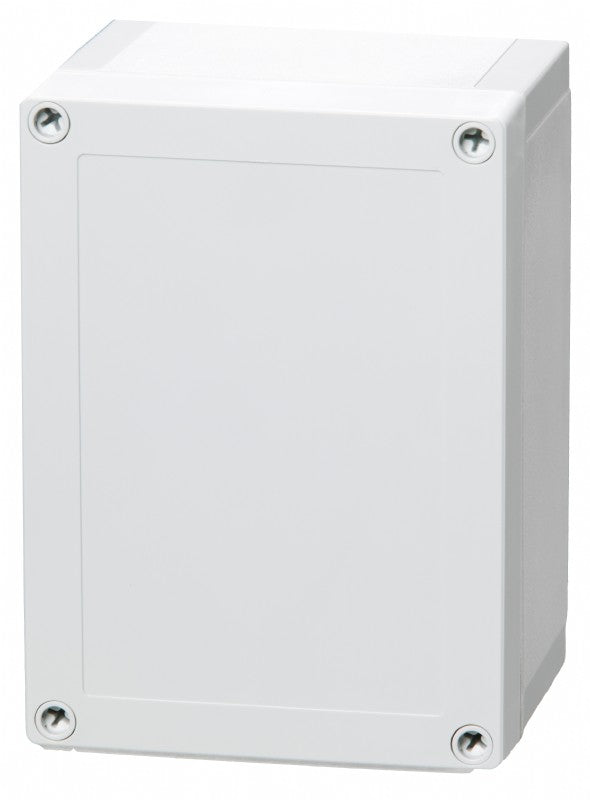

6413334 Polycarbonate Enclosure

6413334 Polycarbonate Enclosure

SKU: UL PC 150/100 XHG   Download PDF

Qty:
Now $6,673.00   Web pricing policy
BEFORE   Now $6,673.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

71 x 51 x 39 inch polycarbonate enclosure with grey cover.

Features and Benefits:

    •UL Type 1, 4, 4x and 6.

    •Ingress Protection IP66; IP67.

    •Impact Resistance IK08.

    •Totally insulated.

    •Halogen free.

    •UV resistance UL 508.

    •Flammability Rating UL94-5VA (f1).

    •Glow Wire Test 960 °C.

Specifications:

 Dimensions (inch) 7.1 x 5.1 x 3.9
 Height (inch) 7.1
 Width (inch) 5.1
 Depth (inch) 3.9
 Height (mm) 180
 Width (mm) 130
 Depth (mm) 100
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
