6413327 Polycarbonate Enclosure

6413327 Polycarbonate Enclosure

SKU: UL PC 200/125 XHG   Download PDF

Qty:
Now $13,878.00   Web pricing policy
BEFORE   Now $13,878.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

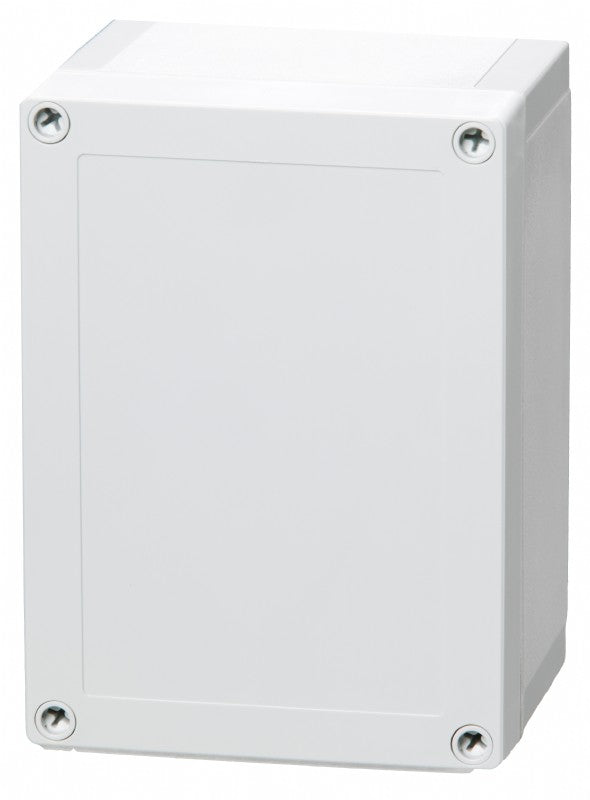

10 x 71 x 49 inch polycarbonate enclosure with grey cover.

Features and Benefits:

    •Dimensional versatility with a height of 10 inches, width of 7.1 inches, and depth of 4.9 inches.

    •Constructed from durable polycarbonate material.

    •Grey base and cover color (RAL 7035-light grey).

    •Includes a PUR gasket for sealing.

    •Screws for mounting plate/DIN-rail and cover provided.

    •Compatible with UL/cUL Type 1, 4, 4x, and 6.

    •Ingress Protection rated IP66 and IP67.

    •Impact resistance rated IK08.

    •Totally insulated for electrical safety.

Specifications:

 Height (inches) 10
 Width (inches) 7.1
 Depth (inches) 4.9
 Height (mm) 255
 Width (mm) 180
 Depth (mm) 125
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (°F, continuous) -40 … 175
 Temperature (°C, continuous) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK08
 Electrical insulation Totally insulated
 Halogen free (DIN/VDE 0472, Part 815) No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
