6412907 UL PC 125/35 LT Polycarbonate Enclosure

6412907 UL PC 125/35 LT Polycarbonate Enclosure

SKU: UL PC 125/35 LT   Download PDF

Qty:
Now $4,878.00   Web pricing policy
BEFORE   Now $4,878.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

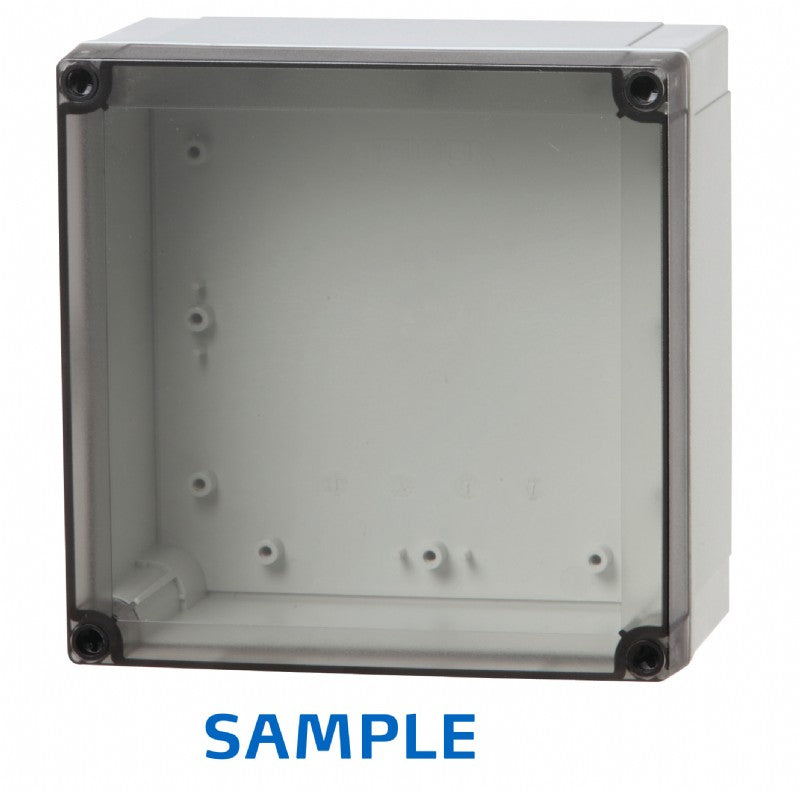

51 x 51 x 14 inch polycarbonate enclosure with grey cover.

Features and Benefits:

    •UL Type 1, 4, 4x and 6.

    •IP66; IP67 rated.

    •IK08 impact resistance.

    •Includes base with PUR gasket, screws for mounting plate/DIN-rail and cover with polyamide cover screws.

    •Totally insulated.

    •Halogen free material.

    •UV resistance.

    •UL 508 compliance.

    •Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1).

    •Glow Wire Test up to 960 °C.

Specifications:

 Dimensions (inches) 5.1 x 5.1 x 1.4
 Dimensions (mm) 130 x 130 x 35
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color Transparent Grey
 Gasket material Polyurethane
 Temperature (°F, continuous) -40 … 175
 Temperature (°C, continuous) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free (DIN/VDE 0472, Part 815) No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
