Home / 6412902 UL PC 100/50 LT Part # Enclosure
1 1

6412902 UL PC 100/50 LT Part # Enclosure

6412902 UL PC 100/50 LT Part # Enclosure

SKU: UL PC 100/50 LT Download PDF

Now $4,142.00
BEFORE   Now $4,142.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

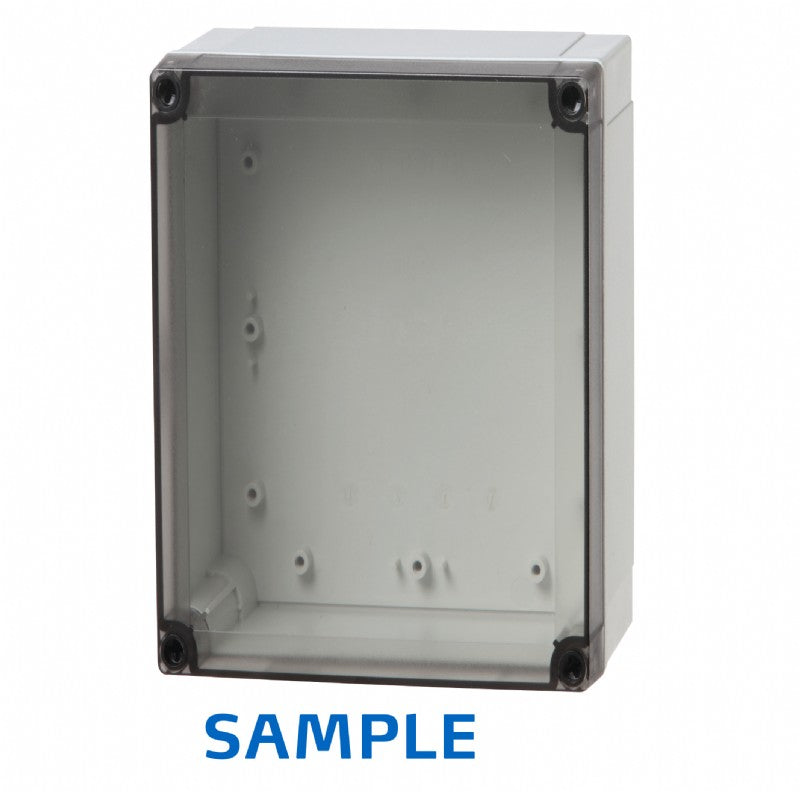

51 x 31 x 2 inch polycarbonate enclosure with grey cover.

Features and Benefits:

    •UL Type 1, 4, 4x and 6.

    •Ingress Protection IP66; IP67.

    •Impact Resistance IK08.

    •Base with PUR gasket.

    •Included screws for mounting plate/DIN-rail and cover screws.

Specifications:

 Dimensions (inch) 5.1 x 3.1 x 2
 Dimensions (mm) 130 x 80 x 50
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Transparent Grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
