6412901 UL PC 100/35 LT

6412901 UL PC 100/35 LT

SKU: UL PC 100/35 LT   Download PDF

Qty:
Now $4,085.00   Web pricing policy
BEFORE   Now $4,085.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

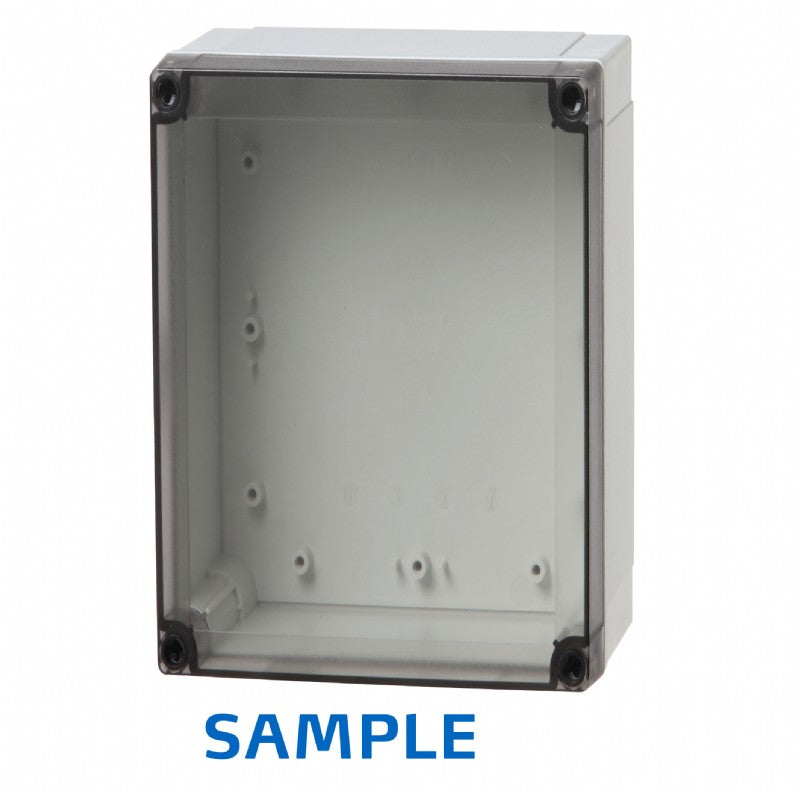

51 x 31 x 14 inch polycarbonate enclosure with grey cover Dimensions Height (inch): 51 Width (inch): 31 Depth (inch): 14 Height (mm): 130 Width (mm): 80 Depth (mm): 35 Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: Transparent Grey Gasket material: Polyurethane Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 Ratings UL/cUL Type: 1, 4, 4x and 6; Ingress Protection (EN 60529): IP66; IP67 Impact Resistance (EN 62262): IK08 Electrical insulation: Totally insulated Halogen free (DIN/VDE 0472, Part 815): No UV resistance: UL 508 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1) Glow Wire Test (IEC 60695): 960 °C.

Specifications:

 Dimensions: 5.1 x 3.1 x 1.4 inch
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: Transparent Grey
 Gasket material: Polyurethane
 Temperature (continuous °F): -40 … 175
 Temperature (continuous °C): -40 … 80
 UL/cUL Type: 1, 4, 4x and 6;
 Ingress Protection: IP66; IP67
 Impact Resistance: IK08
 Electrical insulation: Totally insulated
 Halogen free: No
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test: 960 °C
