6412307 Polycarbonate Enclosure

6412307 Polycarbonate Enclosure

SKU: UL PC 125/35 LG   Download PDF

Qty:
Now $4,759.00   Web pricing policy
BEFORE   Now $4,759.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

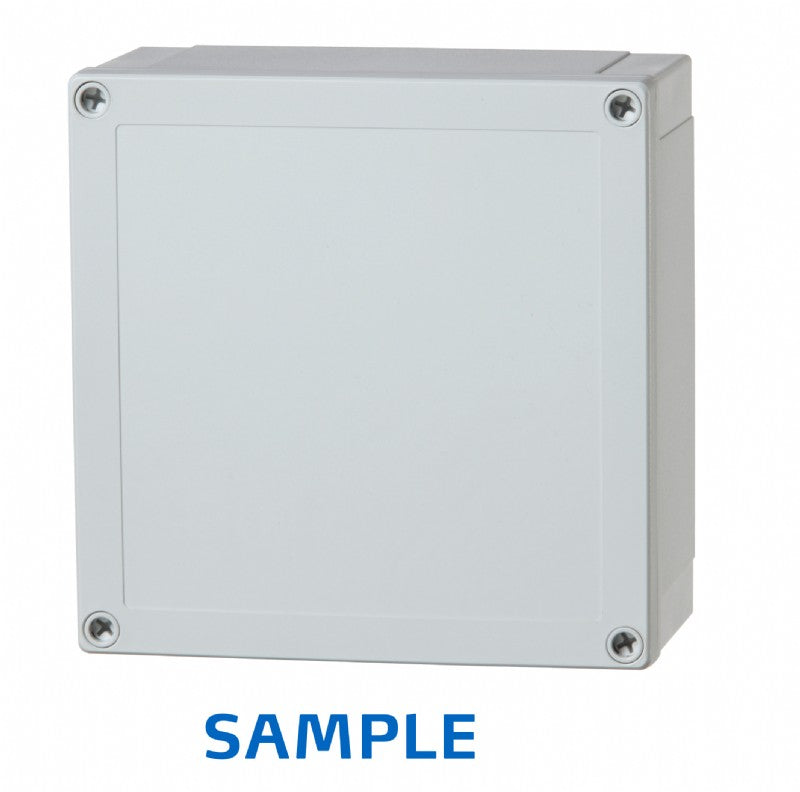

51 x 51 x 14 inch polycarbonate enclosure with grey cover.

Features and Benefits:

    •UL Type 1, 4, 4x and 6.

    •Ingress Protection (EN 60529): IP66; IP67.

    •Impact Resistance (EN 62262): IK08.

    •Totally insulated.

    •Halogen free (DIN/VDE 0472, Part 815): No.

    •UV resistance: UL 508.

    •Flammability Rating: UL94-5VA (f1).

    •Glow Wire Test (IEC 60695): 960 °C.

Specifications:

 Dimensions 5.1 x 5.1 x 1.4 inch
 Height (inch) 5.1
 Width (inch) 5.1
 Depth (inch) 1.4
 Height (mm) 130
 Width (mm) 130
 Depth (mm) 35
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
