6411921 Polycarbonate Enclosure

6411921 Polycarbonate Enclosure

SKU: UL PC 175/100 HT   Download PDF

Qty:
Now $7,852.00   Web pricing policy
BEFORE   Now $7,852.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

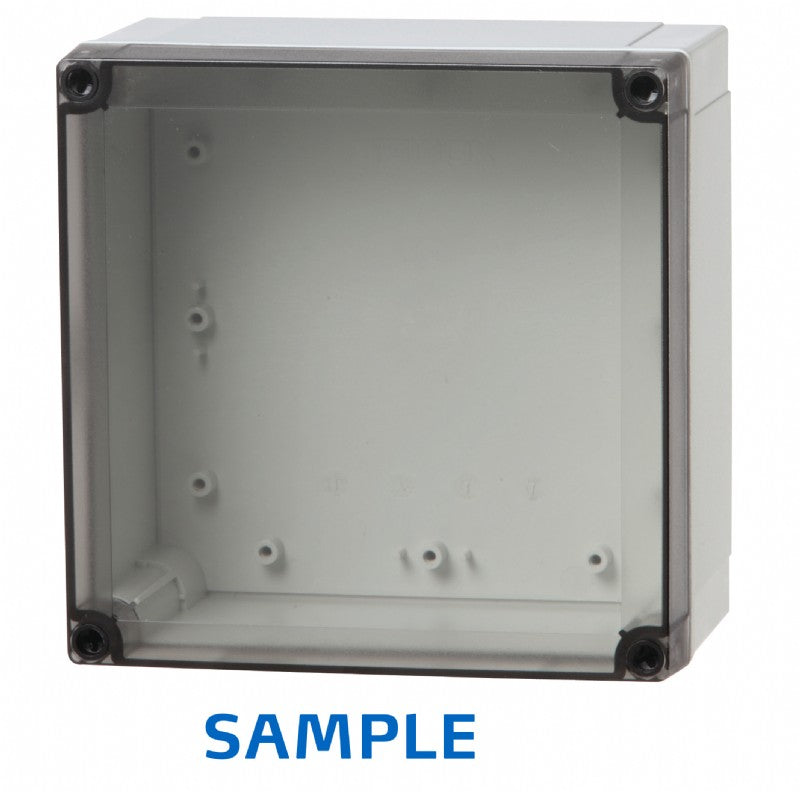

71 x 71 x 39 inch polycarbonate enclosure with grey cover.

Features and Benefits:

    •UL Type 1, 4, 4x and 6.

    •IP66; IP67; IK08.

    •Includes base with PUR gasket, screws for mounting plate/DIN-rail and cover with polyamide cover screws.

    •Material: Polycarbonate.

    •Base color: RAL 7035 - light grey.

    •Cover color: Transparent Grey.

    •Gasket material: Polyurethane.

Specifications:

 Dimensions (inch) 7.1 x 7.1 x 3.9
 Dimensions (mm) 180 x 180 x 100
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
