6411917 UL PC 150/150 HT

6411917 UL PC 150/150 HT

SKU: UL PC 150/150 HT   Download PDF

Qty:
Now $6,891.00   Web pricing policy
BEFORE   Now $6,891.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

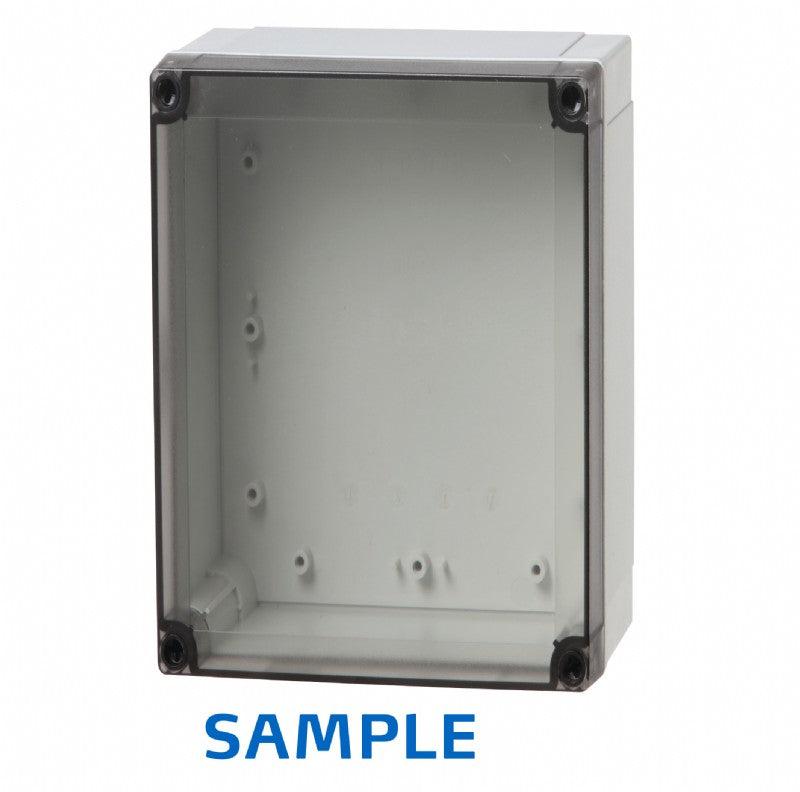

71 x 51 x 59 inch polycarbonate enclosure with grey cover.

Features and Benefits:

    •Constructed from polycarbonate material.

    •Includes base with PUR gasket, screws for mounting plate/DIN-rail and a cover with polyamide cover screws.

    •Light grey base color (RAL 7035) and transparent grey cover.

    •Rated for continuous temperatures from -40 °F to 175 °F (-40 °C to 80 °C).

    •Ingress Protection rated IP66 and IP67.

    •Impact resistance rated IK08.

    •Totally insulated for electrical insulation.

    •Halogen free.

    •UL certified with a flammability rating of UL94-5VA (f1) for the enclosure and UL94-V0 (f1) for the cover.

    •Glow wire test rating of 960 °C.

Specifications:

 Height (inch) 7.1
 Width (inch) 5.1
 Depth (inch) 5.9
 Height (mm) 180
 Width (mm) 130
 Depth (mm) 150
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color Transparent Grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK08
 Electrical insulation Totally insulated
 Halogen free (DIN/VDE 0472, Part 815) No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
