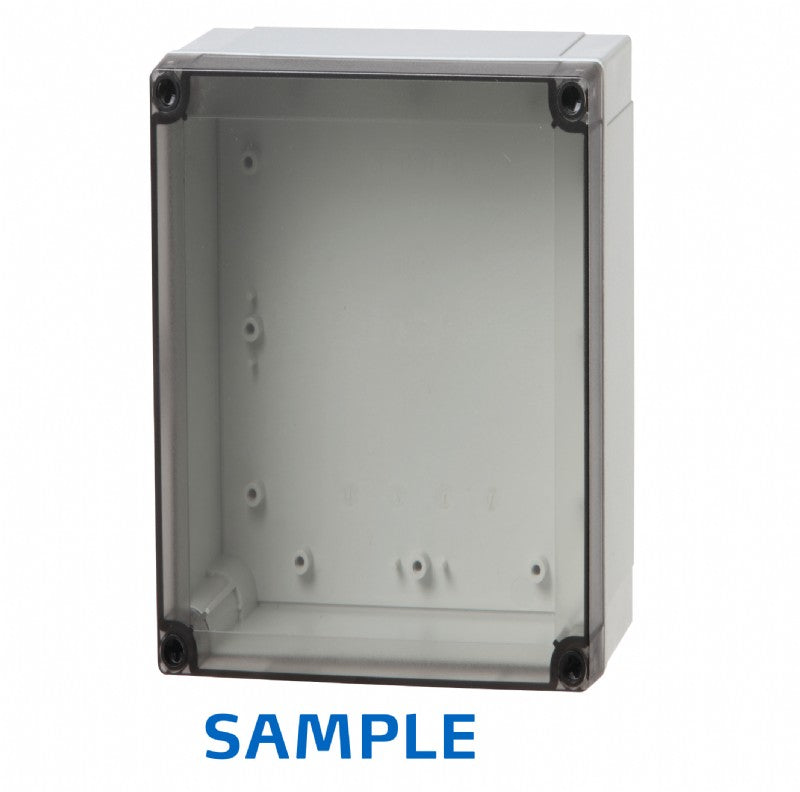

6411916 Polycarbonate Enclosure - 7.1 x 5.1 x 4.9 inch

6411916 Polycarbonate Enclosure - 7.1 x 5.1 x 4.9 inch

SKU: SKU: UL PC 150/125 HT   Download PDF

Qty:
Regular price Now $6,436.00   Web pricing policy
Regular price BEFORE   Sale price Now $6,436.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

71 x 51 x 49 inch polycarbonate enclosure with grey cover Dimensions Height (inch): 71 Width (inch): 51 Depth (inch): 49 Height (mm): 180 Width (mm): 130 Depth (mm): 125 Materials Material: Polycarbonate Base color: RAL 7035 -light grey Cover color: Transparent Grey Gasket material: Polyurethane Temperatures Temperature °F (continuous): -40 … 175 Temperature °C (continuous): -40 … 80 Ratings UL/cUL Type: 1, 4, 4x and 6; Ingress Protection (EN 60529): IP66; IP67 Impact Resistance (EN 62262): IK08 Electrical insulation: Totally insulated Halogen free (DIN/VDE 0472, Part 815): No UV resistance: UL 508 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1) Glow Wire Test (IEC 60695): 960 °C.

Features and Benefits:

    •Ingress Protection IP66 and IP67 ensures water and dust resistance.

    •Impact Resistance IK08 provides durability.

    •Designed for a wide range of temperatures from -40 to 175 °F.

    •Constructed from halogen-free materials for safety.

Specifications:

 Height (inch) 7.1
 Width (inch) 5.1
 Depth (inch) 4.9
 Height (mm) 180
 Width (mm) 130
 Depth (mm) 125
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Transparent Grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
