6411907 UL PC 125/60 HT Polycarbonate Enclosure

6411907 UL PC 125/60 HT Polycarbonate Enclosure

SKU: UL PC 125/60 HT Download PDF

Now $5,020.00
BEFORE   Now $5,020.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

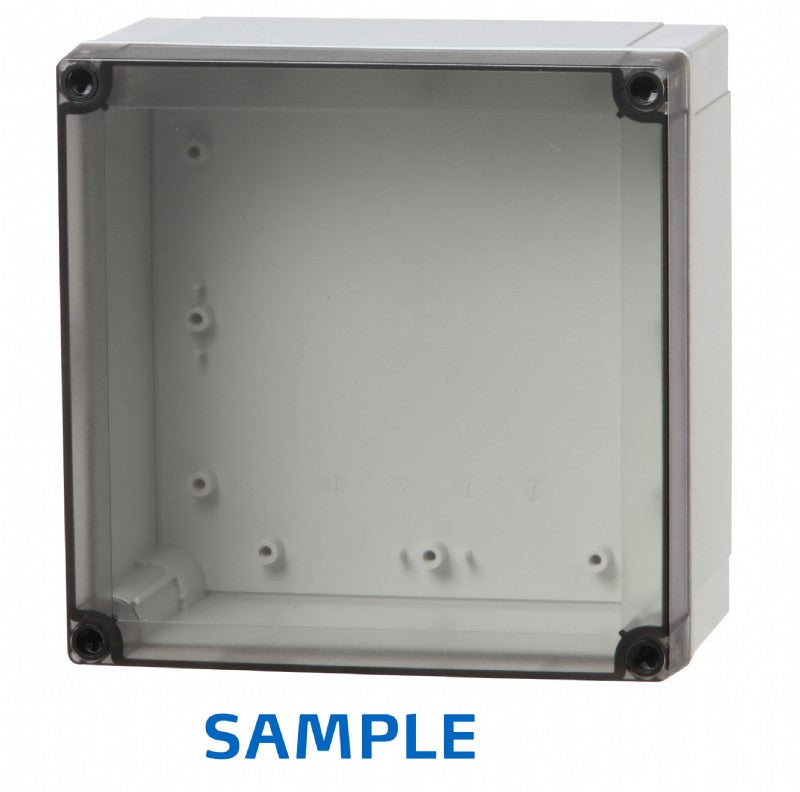

51 x 51 x 24 inch polycarbonate enclosure with grey cover It features dimensions of 51 x 51 x 24 inches with a base color of RAL 7035 -light grey and a transparent grey cover It is made of polycarbonate material and includes a polyurethane gasket.

Features and Benefits:

    •IP66 and IP67 rated for excellent protection against water and dust.

    •Impact resistance rating of IK08.

    •Totally insulated structure ensures electrical safety.

    •Halogen-free material complies with specific industry standards.

    •UV resistance according to UL 508 norms.

    •High flammability rating with UL94-5VA (f1) for the body and UL94-V0 (f1) for the cover.

    •Glow Wire Test compliance at 960 °C.

Specifications:

 Dimensions (inches) 5.1 x 5.1 x 2.4
 Materials Polycarbonate
 Base Color RAL 7035 -light grey
 Cover Color Transparent Grey
 Gasket Material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical Insulation Totally insulated
 Halogen Free No
 UV Resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
