Description:

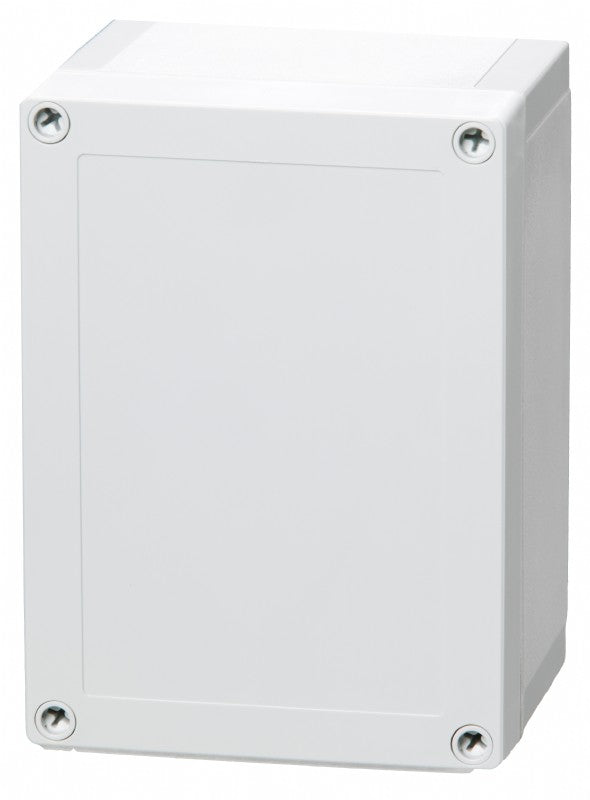

10 x 71 x 3 inch polycarbonate enclosure with grey cover.

Features and Benefits:

    •Made from polycarbonate material..

    •Base and cover are RAL 7035 - light grey..

    •Includes base with PUR gasket, screws for mounting plate/DIN-rail and cover with polyamide cover screws..

    •Totally insulated for electrical safety..

    •Halogen free..

    •UV resistance as per UL 508..

    •UL94-5VA (f1) flammability rating..

    •Impact resistance rated IK08..

Specifications:

 Dimensions (inches): 10 x 7.1 x 3
 Dimensions (mm): 255 x 180 x 75
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: RAL 7035 - light grey
 Gasket material: Polyurethane
 Temperature (°F): -40 … 175
 Temperature (°C): -40 … 80
 UL/cUL Type: 1, 4, 4x and 6
 Ingress Protection: IP66; IP67
 Impact Resistance: IK08
 Electrical insulation: Totally insulated
 Halogen free: No
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test: 960 °C
