6411307 UL PC 125/60 HG

6411307 UL PC 125/60 HG

SKU: UL PC 125/60 HG Download PDF

Now $4,898.00
BEFORE   Now $4,898.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

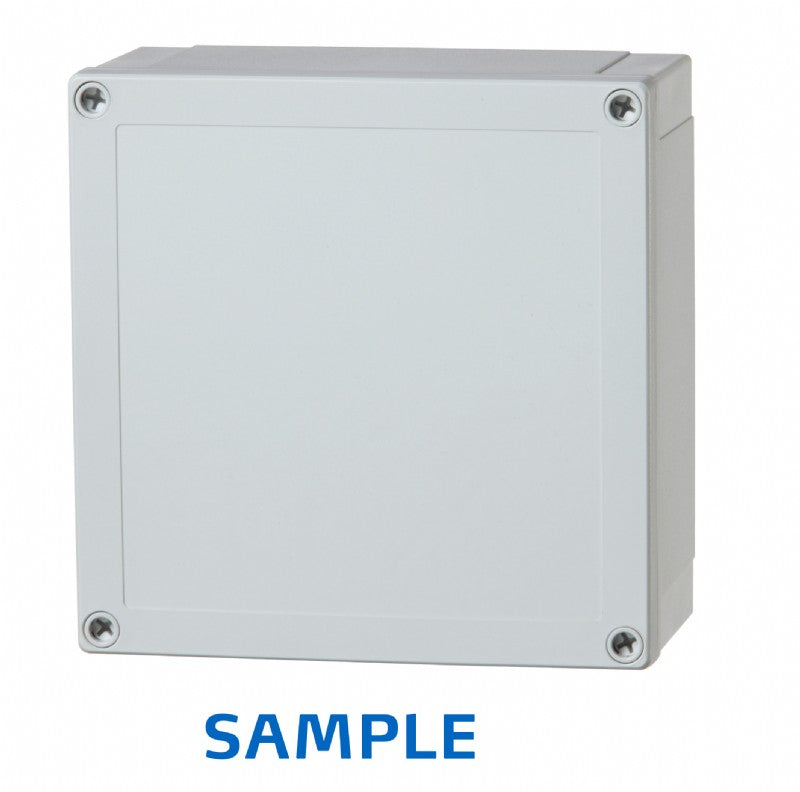

51 x 51 x 24 inch polycarbonate enclosure with grey cover.

Features and Benefits:

    •UL Type 1, 4, 4x and 6.

    •IP66.

    •IP67.

    •IK08.

    •Base with PUR gasket.

    •Screws for mounting plate/DIN-rail and cover with polyamide cover screws.

Specifications:

 Dimensions (inches) 5.1 x 5.1 x 2.4
 Dimensions (mm) 130 x 130 x 60
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (°F continuous) -40 … 175
 Temperature (°C continuous) -40 … 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
