Home / 6411302 UL PC 100/75 HG
1 1

6411302 UL PC 100/75 HG

6411302 UL PC 100/75 HG

SKU: UL PC 100/75 HG   Download PDF

Qty:
Now $4,172.00   Web pricing policy
BEFORE   Now $4,172.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

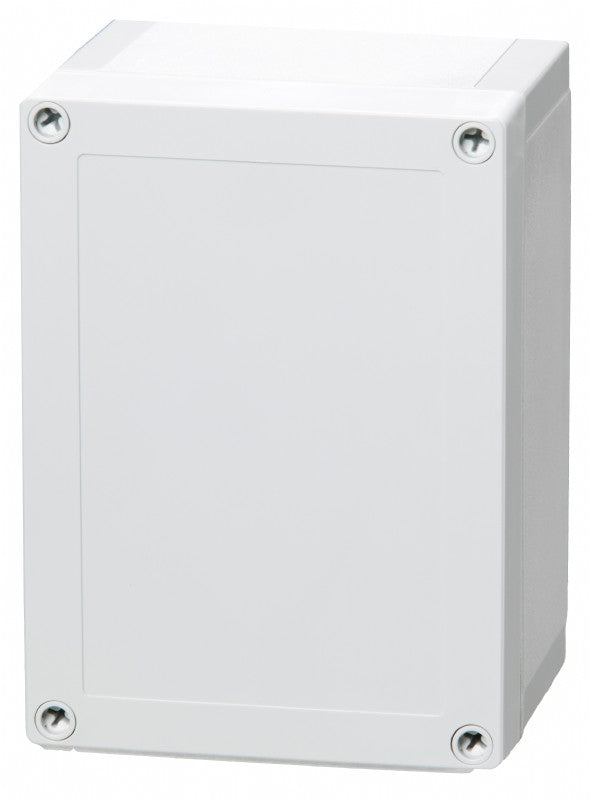

51 x 31 x 3 inch polycarbonate enclosure with grey cover.

Features and Benefits:

    •Base with PUR gasket.

    •Includes screws for mounting plate/DIN-rail and cover with polyamide cover screws.

    •Totally insulated.

    •Halogen free (DIN/VDE 0472, Part 815): No.

    •UV resistance: UL 508.

    •Flammability Rating: UL94-5VA (f1).

    •Glow Wire Test (IEC 60695): 960 °C.

Specifications:

 Dimensions: 5.1 x 3.1 x 3 inch
 Height (inch): 5.1
 Width (inch): 3.1
 Depth (inch): 3
 Height (mm): 130
 Width (mm): 80
 Depth (mm): 75
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: RAL 7035 -light grey
 Gasket material: Polyurethane
 Temperature °F (continuous): -40 … 175
 Temperature °C (continuous): -40 … 80
 UL/cUL Type: 1, 4, 4x and 6
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK08
 Electrical insulation: Totally insulated
