6228930 - Chrome-Plated Cross Key for Trucks, 750x750 mm
6228930 - Chrome-Plated Cross Key for Trucks, 750x750 mm
SKU: SKU: 6228930
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

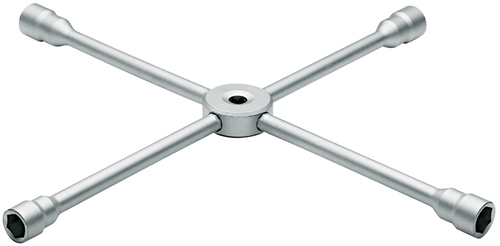

Designed for trucks and heavy machinery, this sturdy component is crafted from vanadium steel (31CrV3) and features a chrome-plated finish for added durability The turned center piece ensures exceptional stability With dimensions of 750 mm by 750 mm, it’s built to meet the demands of tough applications.
Features and Benefits:
•For trucks and heavy machines.
Specifications:
| Total width [mm]: | 750 mm |
| Total height [mm]: | 47 mm |
| Total length [mm]: | 755 mm |
| Insert-Ø: | 40,0 mm x 44,0 mm x 46,0 mm x 46,0 mm |
| Insert-Ø 1: | 40,0 mm |
| Insert-Ø 2: | 44,0 mm |
| Insert-Ø 3: | 46,0 mm |
| Insert-Ø 4: | 46,0 mm |
| Material: | 31CrV3 |
| Surface: | chrome-plated |
| Compliance: | compliant |
| Width across flats 1 [mm]: | 27 |
| Width across flats 2 [mm]: | 30 |
| Width Across Flat 3 [mm]: | 32 |
| Width Across Flat 4 [mm]: | 33 |
| Width across flats [mm]: | 27 x 30 x 32 x 33 |
