60700 - Chrome-Vanadium 1/4x5/16" Double Open Ended Spanner with Satin Finish
60700 - Chrome-Vanadium 1/4x5/16" Double Open Ended Spanner with Satin Finish
SKU: SKU: 60700
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience exceptional durability with this double open-ended spanner, crafted to meet stringent standards including DIN 3110, ISO 3318, ISO 1085, and ISO 10102 It features smooth flat heads finished with a satin surface to reduce glare Precision-ground jaws guarantee perfect contact for a reliable grip, complemented by a slim profile shaft for ease of use Any signs of overloading are clearly indicated by deformation.
Made from high-quality chrome-vanadium steel (31CrV3), this tool is built for enduring performance in tough environments.
Features and Benefits:
•Flat heads for easy access.
•Satin non-glare finish minimizes reflections.
•Precise jaws for optimal contact areas.
•Slim profile shaft for a secure grip.
•Indicates overloading through deformation.
•Made of durable chrome-vanadium steel.

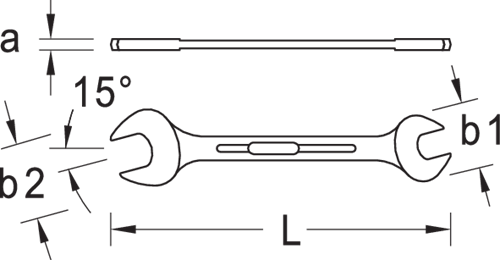

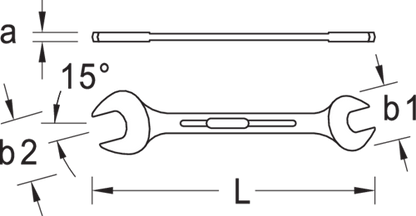

Specifications:
| Total width [mm] | 19 mm |
| Total height [mm] | 4 mm |
| Total length [mm] | 120 mm |
| Standard | similar to DIN 3110 ISO 3318 ISO 1085 ISO 10102 |
| Width of head 1 [mm] | 17.5 mm |
| Width of head 2 [mm] | 20 mm |
| Head height 1 [mm] | 3.7 mm |
| Material | 31CrV3 |
| Mouth position 1 | 15° |
| Surface | Matt chrome-plated |
| Compliance | compliant |
| Width across flats 1 [AF] | 1/4" |
| Width across flats 2 [AF] | 5/16" |
| Width across flats [AF] | 1/4"x5/16" |
