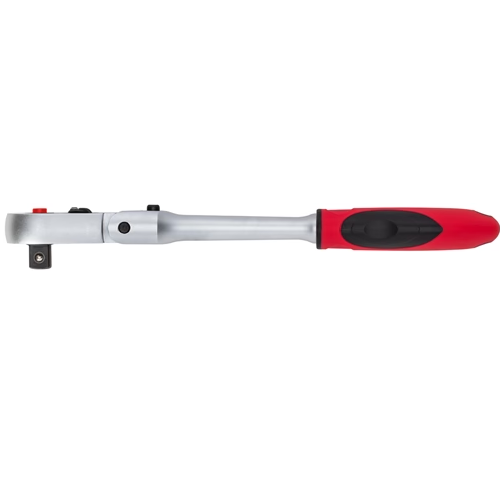

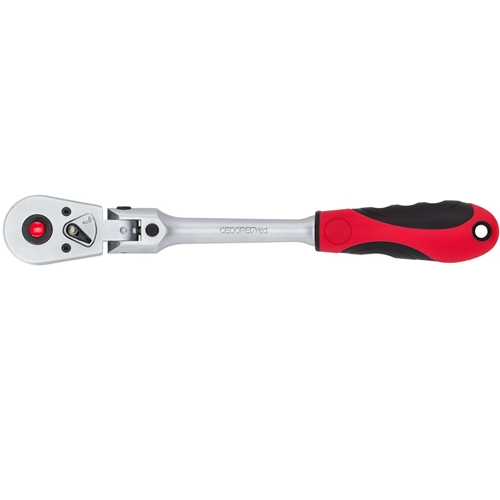

60120 - 180° Lockable Ratchet Head with Durable Handle and Reversible Function
60120 - 180° Lockable Ratchet Head with Durable Handle and Reversible Function
SKU: SKU: 60120
Couldn't load pickup availability

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience unparalleled flexibility with this ratchet head, designed to swivel a complete 180° and lock into five distinct positions for added convenience It features a lever allowing for easy reversing between clockwise and counterclockwise operations, complemented by a push-button release for efficient use Crafted for exceptional handling, the 2-component handle provides a comfortable grip and enhances the transfer of force.
The precision fine-toothed mechanism enables accurate adjustments, while the oval head is specifically made to work with sockets and accessories that have a square drive, adhering to the DIN 3120 - C 125 and ISO 1174 standards, and includes a durable ball retention groove Made from robust chromium vanadium steel, this tool promises durability and reliability for all your projects.
Features and Benefits:
•Ratchet head swivels through 180°.
•Lockable in 5 positions.
•Lever for reversible operation.
•Push-button release for easy use.
•2-component-handle for comfortable force transfer.
•Fine-toothed design for precision.
•Oval head compatible with square drive tools.
•Constructed from chromium vanadium steel.
Specifications:
| Total width [mm] | 41 mm |
| Total height [mm] | 40 mm |
| Total length [mm] | 290 mm |
| Drive connector square [metric] | 12.5 mm |
| Drive square inch | 1/2" |
| Number of teeth | 72 |
| Locking tool type | Ball locking device |
| Push-button release | Yes |
| Handle material | 2-components |
| Material | Chrome-vanadium steel |
| Surface | Matt chrome-plated |
| Compliance | compliant |
| Return angle | 5 ° |
| Switching type | Changeover lever |
