600 MCM XLP USE-2 RHH RHW-2 Copper Building Wire

600 MCM XLP USE-2 RHH RHW-2 Copper Building Wire

SKU: NES2568X Download PDF

Color:
gauge:
  • 600 MCM XLP USE-2 RHH RHW-2 Copper Building Wire
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $23.95 /FT
BEFORE   Now $23.95 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

600 XLP USE-2 RHH RHW-2 Copper Building Wire, 600 AWG Copper RHH Wire, 600 MCM Copper RHH Cable, 600 Direct Burial Electrical Cable, 600 Direct Burial Power Cable, 600 Direct Burial Service Entrance Cable, 600 Underground Service Entrance Cable.

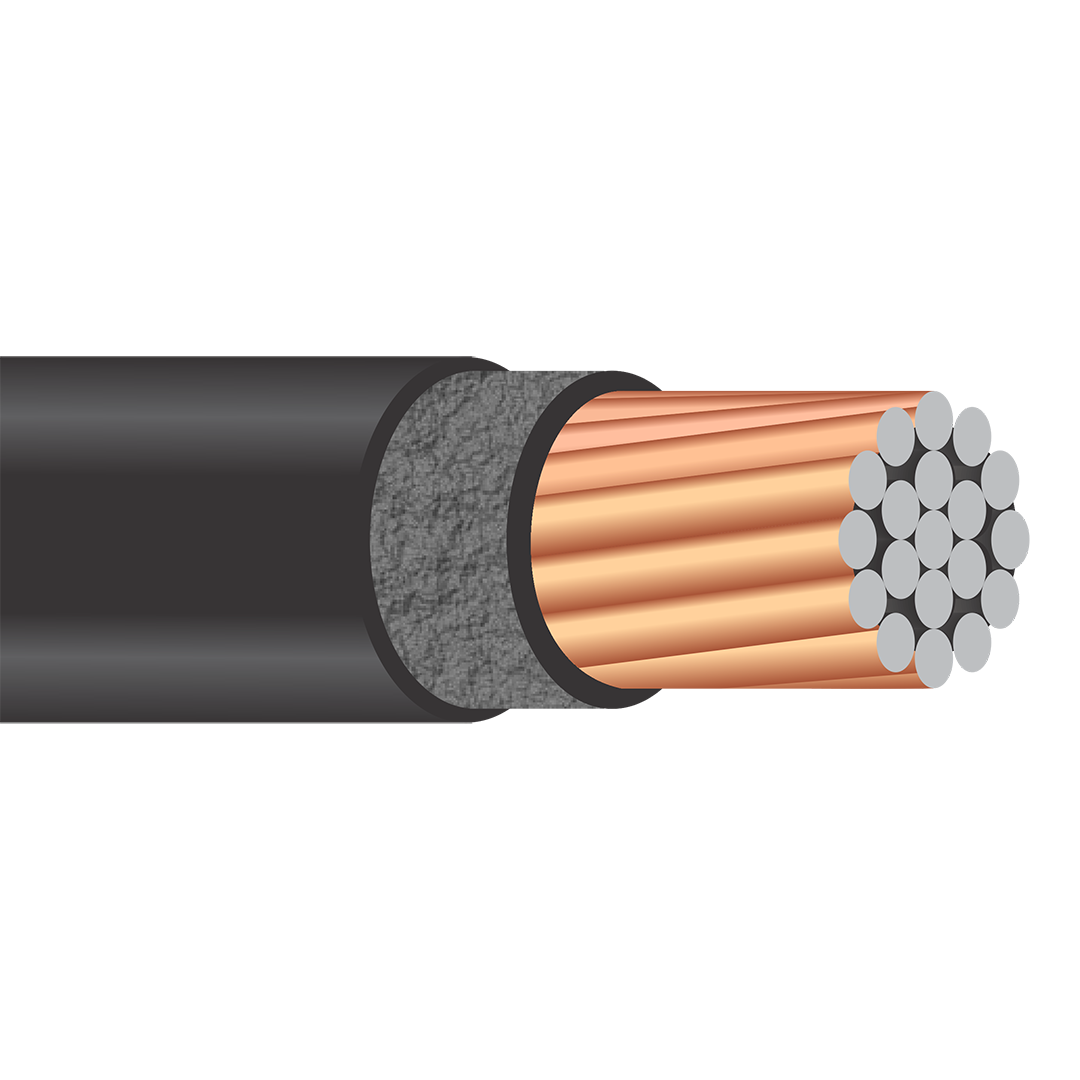

Construction:

Conductor:

RHH/RHW-2/USE-2 conductors are made of annealed soft copper. Compared to aluminum, this conductor performs better in smaller conduits.

Insulation:

The cable has an abrasion, heat, and moisture resistant cross-linked polyethylene insulation (XLPE). The insulation is durable in harsh conditions.

      Compatible with Manufacturer
      Houston Wire & Cable : Black : HW00360001
      Southwire : Black : 113605



      Resources
      Applications
      Type RHH/RHW-2/USE-2 is a versatile building wire suitable for a variety of applications. The cable is rated at 600V. It is used with conduit according to the specifications provided by NEC for lighting and power. Connecting photovoltaic modules is one of the typical applications of the cable. RHH/RHW-2 is also used in aerial applications and raceways. The wire can be applied differently according to each specification.

      As Type USE-2, the wire is used as an underground service entrance cable for direct burial. In this case, the temperatures should not exceed 90° C. The wire is used as RHH in dry locations with temperatures not exceeding 90°C. As RHW-2 or USE-2, the cable is used in wet and dry areas with temperatures not exceeding 90°C.
      Features
      Standards:

      • ASTM B-3 Soft Annealed Copper
      • ASTM B-8 Concentric Lay Stranded Conductors
      • ASTM B787 Uni-lay-Stranded Copper Conductors
      • UL Standard 44 Type RHH and RHW
      • UL Standard 854 Type USE-Service Entrance
      • Federal Specifications J-C-30B, ICEA S-66-524 , NEMA WC-7, A-A-59544
      • FAA Spec. L824 Type C Sizes 12-4 AWG as Airport lighting Cable
      • VW-1 available where flame retardancy required. 1/0 and larger rated for CT use.
      • VW-1 available on special request
      • RoHS Compliant

      Allowable Ampacity for Direct Burial: 475 ( 90°C Wet or Dry Conductor Temperature)

      Allowable Ampacity in Duct: 475 ( 90°C Wet or Dry Conductor Temperature)
      Specifications
      • Size AWG: 600
      • Weight per 1000 ft: 2012 lbs
      • Outside Diameter: 1.086 inches
      • Number of Strands: 61
      • Insulation: XLPE
      • Insulation Thickness: 0.110
