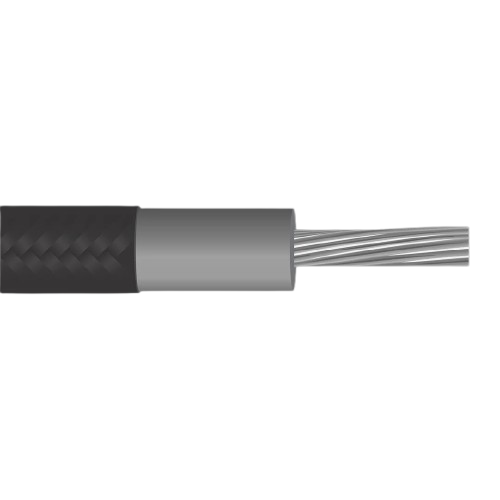

600 MCM 1C SRML High Temperature Motor Lead Wire 600V 200C
Application:
Used for leads to motors, transformers or other electrical equipment, also in equipment where hazardous, and/or high temperature, conditions exist requiring flexible heat resistant conductors at 600 volts
Also Known As:
600 MCM SRML wire, SRML motor lead wire 600V, 600 MCM High temp wire 200°C,600 MCM SRML wire 600 specs, 600 MCM SRML 600V 200C, 600 MCM Motor lead SRML 1C wire, 600 MCM heat-resistant wire, 600 MCM 200°C 600V motor wire, 600 MCM SRML high temp lead wire, 600 MCM single conductor SRML
Conductor:
Flexible stranded tinned, annealed copper per ASTM B33.
Sizes:
#18 AWG - 750 MCM.
Insulation:
Silicone Rubber. A fiberglass braid jacket is applied over the insulation, then treated with a high-temp finish. This product is available in a wide range of colors.
Approvals:
UL Style as listed. All sizes are recognized by CSA as appliance wire. 18 AWG - 6 AWG is CSA certified as equipment wire (SEWF-2); 4 AWG - 4/0 AWG is certified as equipment wire (SEW-2)
Specifications:
• Size: 600 MCM
• Stranding: 703/.0292
• Insulation Thick: 0.115
• Braid Thick: 0.025
• Nominal. O.D: 1.305
• UL Style: 3231
• Temp Rating: 200°C
• Approx Weight LBS/K FT : 2254
