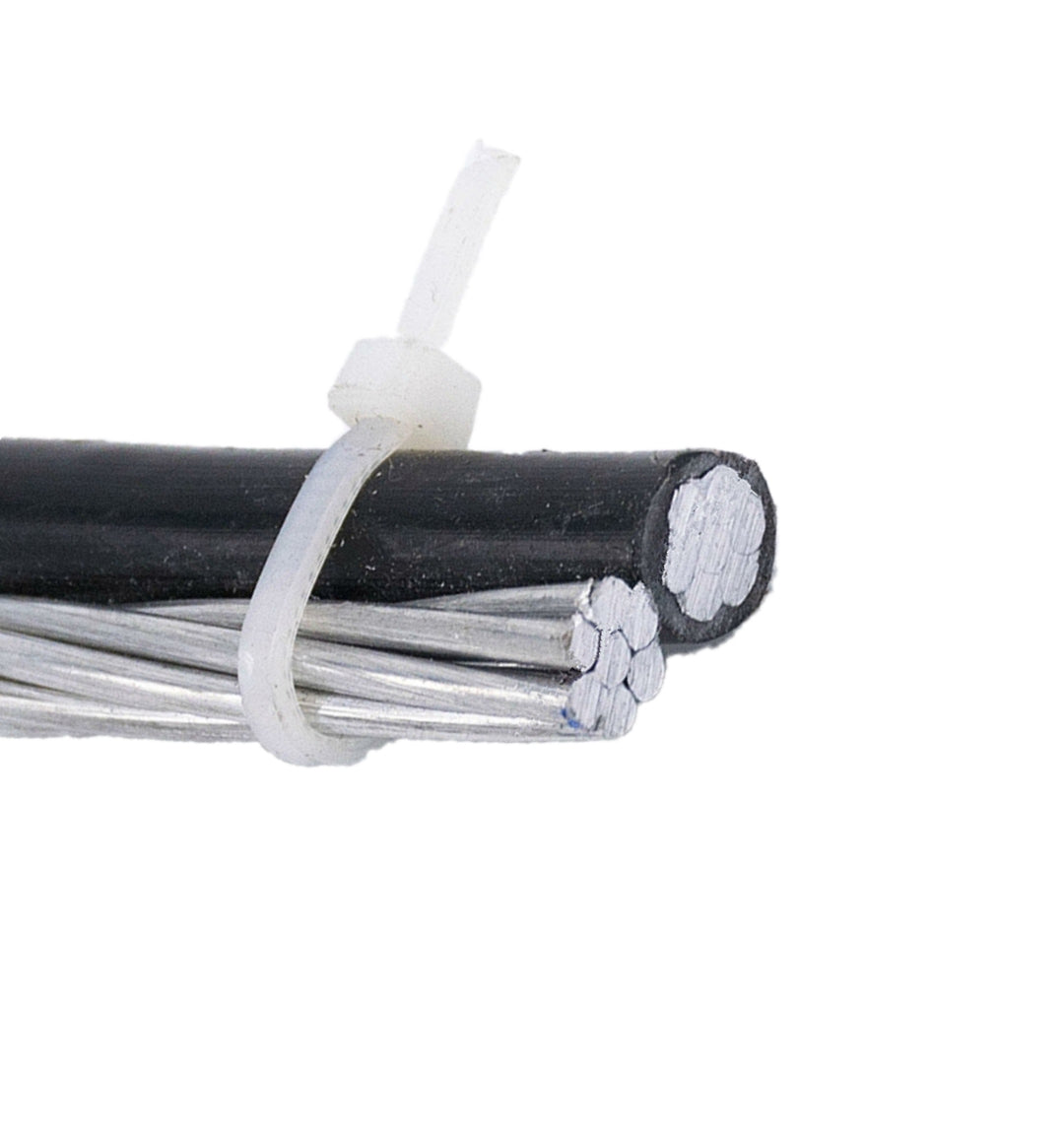

6-6 Shepherd Aluminum Duplex Overhead Service Drop Cable

6-6 Shepherd Aluminum Duplex Overhead Service Drop Cable

SKU: NES1940X   Download PDF

Select a gauge:
  • 6-6 Shepherd Aluminum Duplex Overhead Service Drop Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.39 /FT   Web pricing policy
BEFORE   Now $0.39 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

6-6 Shepherd Aluminum Duplex Overhead Service Drop Cable

Allowable Ampacity for 6-6 Shepherd Aluminum Duplex Overhead XLP at 90°C: 85 Amps

Allowable Ampacity for 6-6 Shepherd Aluminum Duplex Overhead Poly at 75°C: 70 Amps

Also Known As:

6-6 shepherd aluminium overhead cables, 6-6 shepherd overhead aluminum wire, 6-6 shepherd two conductor cable, 6-6 shepherd  2 conductor power cable, 6-6 shepherd two conductor, 6-6 shepherd aluminum drop, 6-6 shepherd overhead service drop conductors, 6-6 shepherd overhead service conductors.

Conductors:

Duplex aluminium overhead cables have a concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Duplex overhead aluminum wire has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Cables with duplex overhead service drop conductors have a black cross linked polyethylene (XLP) insulation.

Resources
Applications
Duplex aluminium overhead cables have two conductors: one for electrodes, and the other one as a messenger (neutral conductor). This electrical wire, also called duplex overhead aluminum wire, is designed and manufactured for use in 120 V power distribution facilities. It is aerially installed with a maximum operational temperature rating of 75°C.
Just as the name of the aluminum drop duplex cable suggests, it has aluminium conductors which are insulated with a cross linked polyethylene for chemical and mechanical protection, forming the circular core. A bare messenger wire of this electrical cable is made of aluminum and is longitudinally laid on the conductors.
Features
Standards:

• ASTM B-230

• ASTM B-231

• ASTM B-232

• ASTM B-399

• ICEA S - 76 - 474
Specifications
• Size AWG: 6

• Strand: 7/w

• Insulation Thickness (mils): 0.045

• Neutral Size AWG: 6

• Weight lbs./1000ft: XLP: 78

• Weight lbs./1000ft: Poly: 75

• Ampacity: XLP: 85

• Ampacity: Poly: 70
