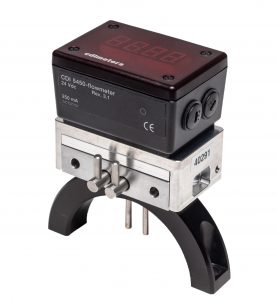

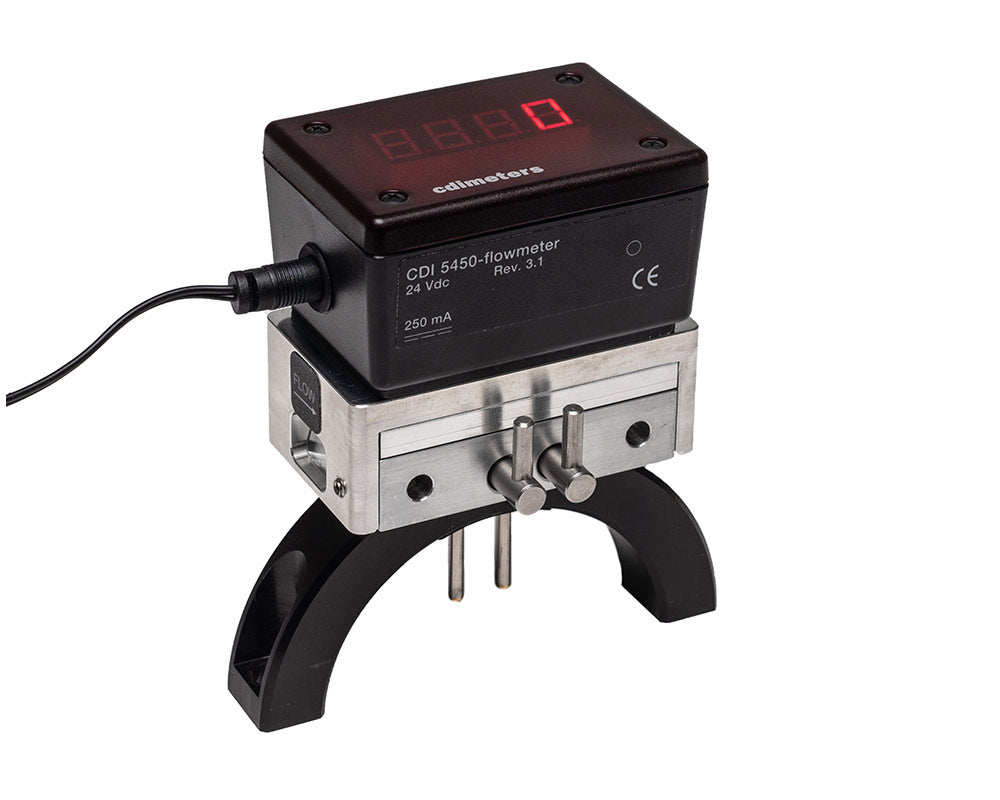

5450 Flowmeter

5450 Flowmeter

SKU: 5450-50M   Download PDF

Qty:
Now $1,435.00   Web pricing policy
BEFORE   Now $1,435.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

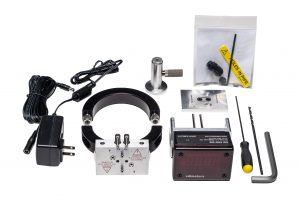

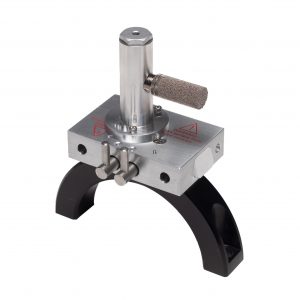

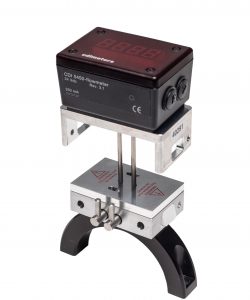

The CDI 5450 is a modified version of the 5400 model that allows installation under pressure It incorporates two valves through which the probes pass and a muffler that collects chips from the drilling process It takes an equal amount of installation time as our standard meters and requires no shutdown of the compressed-air system.

Features and Benefits:

    •No system shutdown required.

    •Installs in minutes.

    •Weather resistant and surge protected.

    •Milliamp output.

    •Pulse output convertible to threshold output.

    •User-configurable scaling, filtering and units of measure.

    •Optional wired outputs for networking.

    •Housing rotates to suit vertical or horizontal installation.

Specifications:

 Number of Rings 1 Ring
 Type of Pipe Metric Aluminum, Sch. 40 Steel, Type L Copper
 Nominal Pipe Sizes 2 in. – 8 in., DN50 – DN200
 Accuracy 5 percent of reading plus 1 percent of range for flows from 10 percent to 100 percent of indicated range at air temperatures between 20 and 120 degrees Fahrenheit
 Fluids Compressed Air, Nitrogen
 Operating Pressure 130 psig maximum
 Input Power 250 mA at 24 Vdc
 Output Resistance 600 Ohms max.
 Exposed Materials Stainless steel, gold, thermal epoxy and Viton (seal)
 Ring Material Aluminum
 Display Four digit LED display
 Response Time One second to 63 percent of change in value at flows above 30 percent of range.
