5400 Flowmeter

5400 Flowmeter

SKU: 5400-80S Download PDF

Now $2,755.00
BEFORE   Now $2,755.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

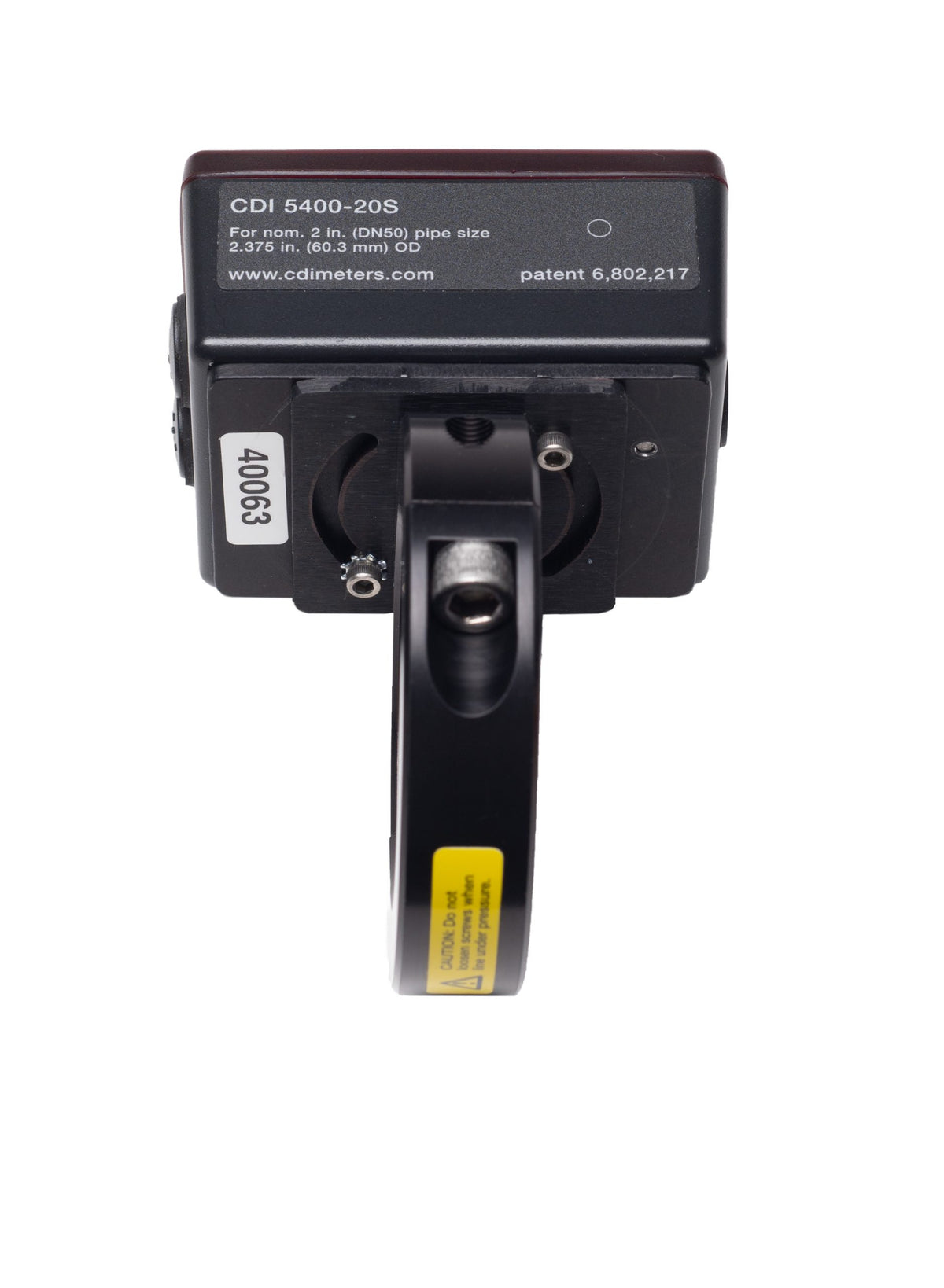

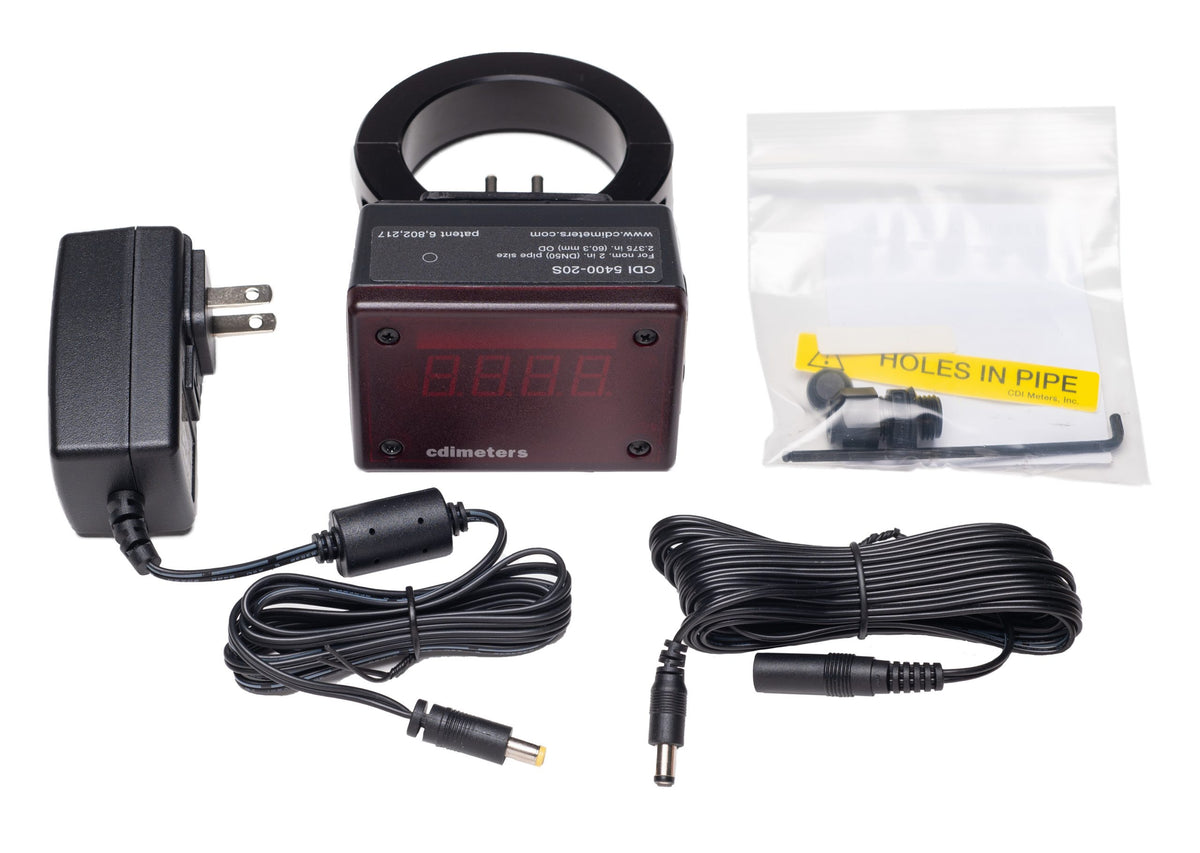

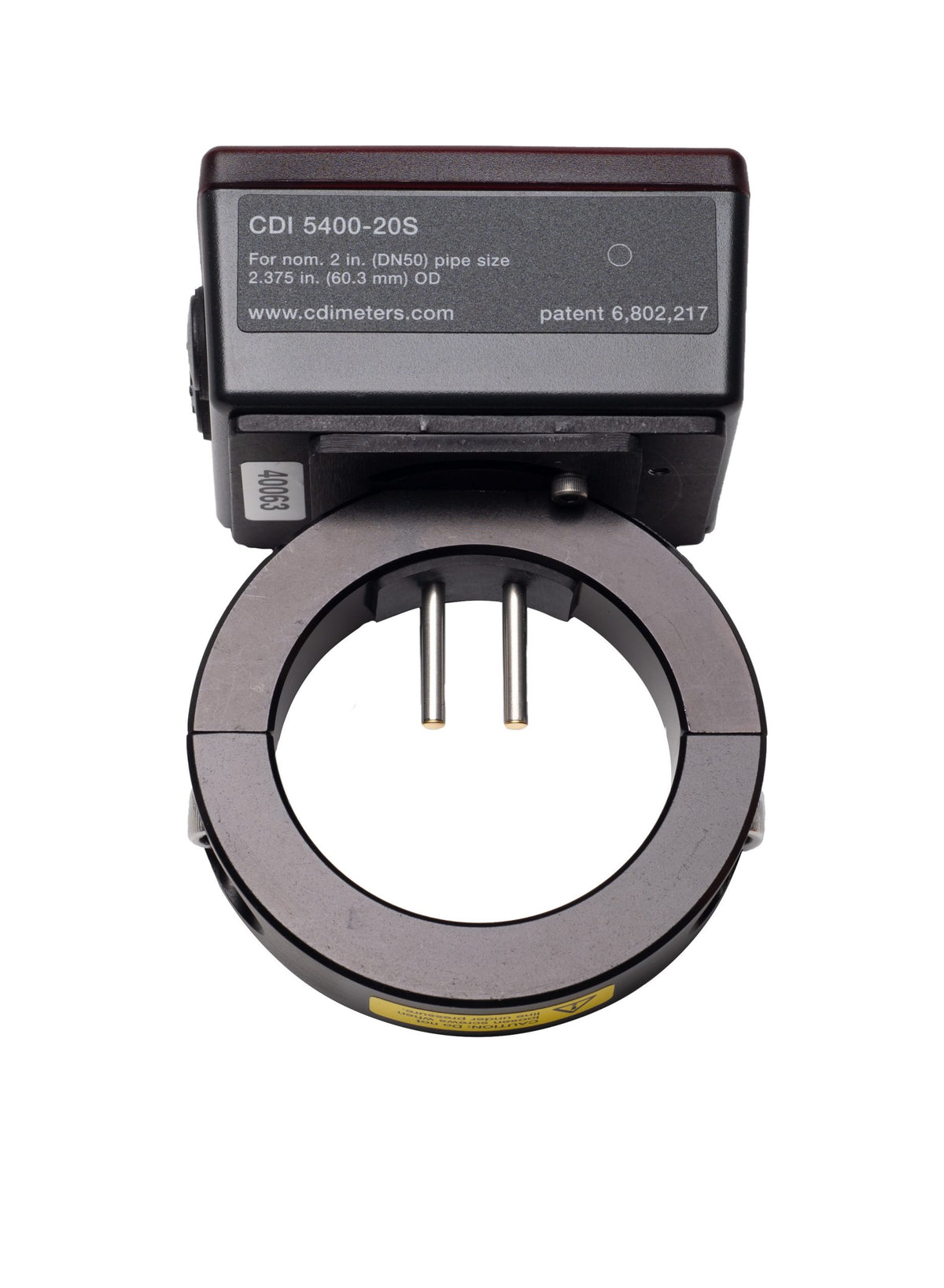

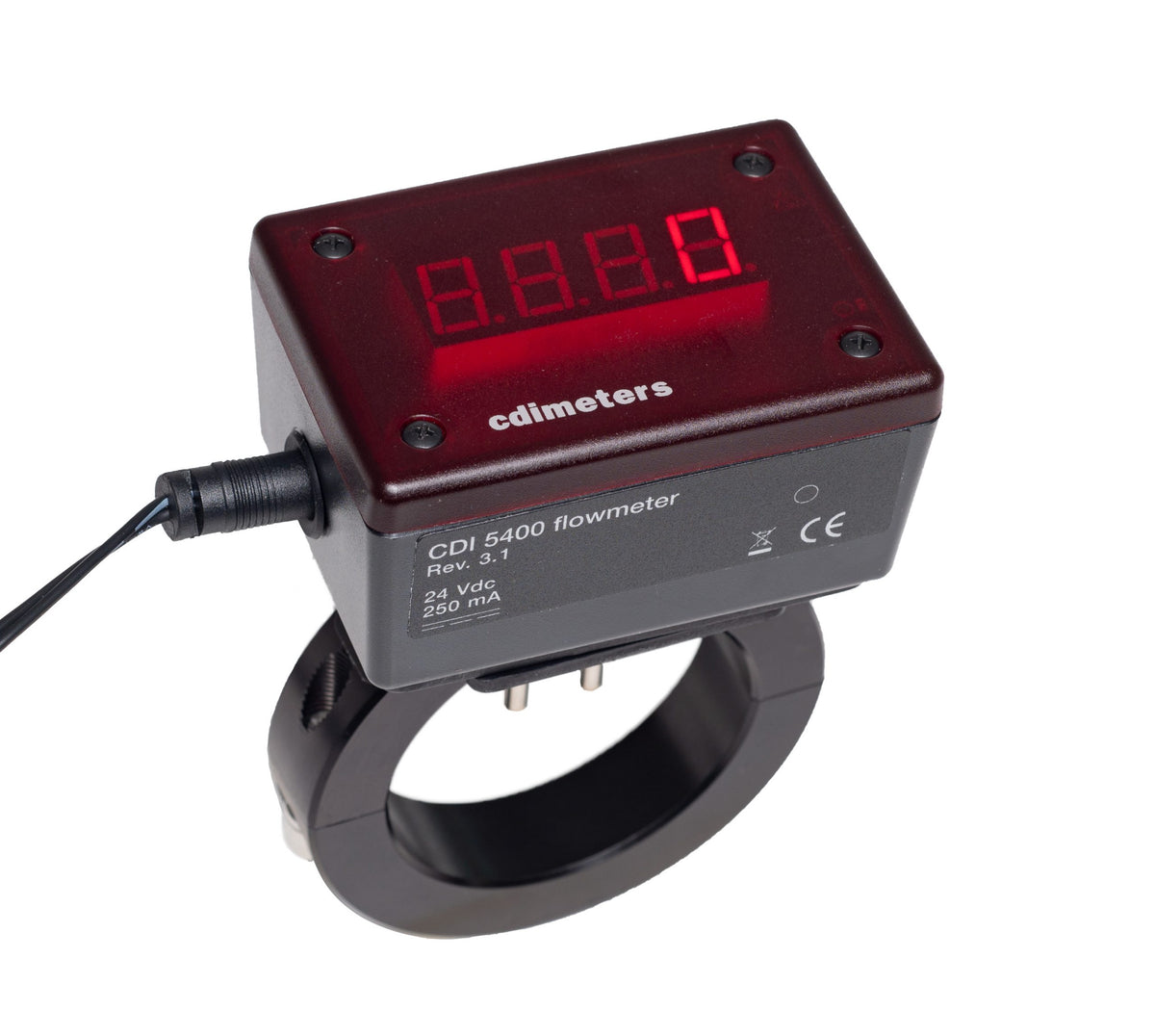

The CDI 5400 clamps onto a pipe, with two flow-sensing probes projecting into the pipe through 3/16-in drilled holes It seals directly to the pipe; no cutting or welding is required for installation Because each flowmeter is made and calibrated for a specific size of pipe, the digital display indicates flow directly, with no setup or adjustment.

Features and Benefits:

    •Easy to install.

    •Display rotates to facilitate use on horizontal or vertical pipes.

    •No moving parts.

    •Weather resistant and surge protected.

    •Milliamp output.

    •Pulse output convertible to threshold output.

    •User-configurable scaling, filtering and units of measure.

    •Optional wired outputs for networking.

    •Commonly used for monitoring of compressor-room output and distribution lines in medium to large-sized facilities..

    •Used for point-of-use monitoring in industrial processes that use large amounts of compressed air..

Specifications:

 Number of Rings 1 Ring
 Type of Pipe Metric Aluminum, Sch. 40 Steel, Type L Copper
 Nominal Pipe Sizes 2 in. – 8 in., 50 mm – 101 mm, DN50 – DN200
 Accuracy 5 percent of reading plus 1 percent of range for flows from 10 percent to 100 percent of indicated range at air temperatures between 20 and 120 degrees Fahrenheit
 Fluids Compressed Air, Nitrogen
 Operating Pressure 200 psig maximum on Sch. 40 steel and on Type L Copper; consult CDI for other materials and higher pressures.
 Input Power 250 mA at 24 Vdc
 Output Resistance 600 Ohms max.
 Exposed Materials Stainless steel, gold, thermal epoxy and Viton (seal)
 Ring Material Aluminum
 Display Four digit LED display
 Response Time One second to 63 percent of change in value at flows above 30 percent of range.
