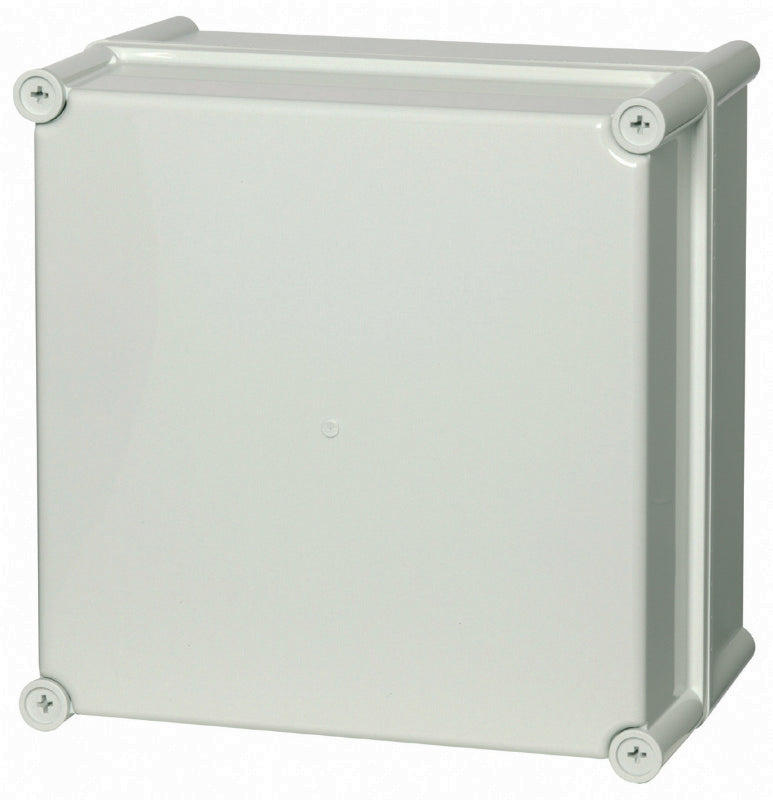

5320372 Enclosure, PC, Opaque Screw Cover

5320372 Enclosure, PC, Opaque Screw Cover

SKU: UL PC 2828 18 G Download PDF

Now $19,243.00
BEFORE   Now $19,243.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Enclosure made of polycarbonate with an opaque screw cover suitable for various applications It features a base with screws for mounting and a cover equipped with a PUR gasket and polyamide cover screws, ensuring durability and reliability in demanding environments The enclosure is rated UL Types 1, 3, 3S, 4, 4X, 6, 6P, and 12, and offers ingress protection ratings of IP66 and IP67, along with impact resistance rated at IK08.

This makes it ideal for outdoor and rough indoor use where environmental factors may pose a challenge Designed to operate in temperatures ranging from -40°F to 175°F (-40°C to 80°C), the enclosure is also halogen-free and UV resistant, providing a long-lasting protective solution for electrical components.

Features and Benefits:

    •Constructed from polycarbonate for enhanced durability.

    •Opaque screw cover for reliable sealing and protection.

    •Ingress Protection rating of IP66 and IP67 for dust and water resistance.

    •Impact resistance rated at IK08, suitable for harsh environments.

    •UL/cUL certified for safety and compliance.

    •Wide temperature range from -40°F to 175°F ensures functionality in extreme conditions.

Specifications:

 Dimensions (inches) 10.9 x 10.9 x 7.1
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type Type 1, 3, 3S, 4, 4X, 6, 6P and 12
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
