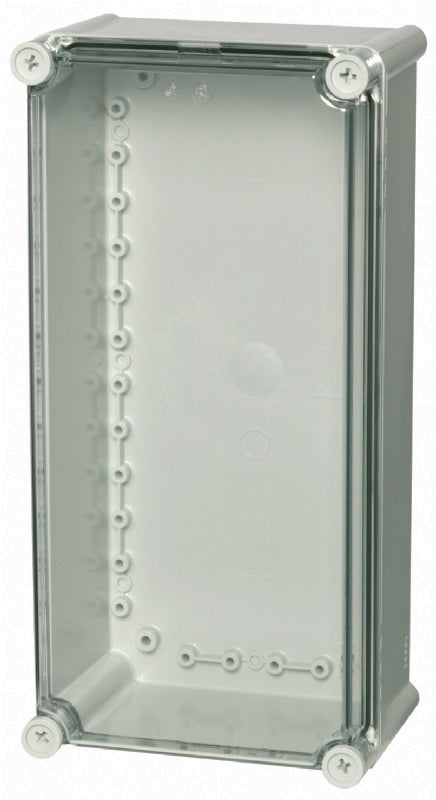

5320065 Enclosure, PC, Transparent Screw Cover

5320065 Enclosure, PC, Transparent Screw Cover

SKU: UL PC 5638 18 T Download PDF

Now $39,236.00
BEFORE   Now $39,236.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Enclosure, PC, Transparent Screw Cover is designed with dimensions of 22 x 149 x 71 Inches This product is made from polycarbonate and offers a base color of light grey (RAL 7035) and a transparent cover It features a polyurethane gasket for added sealing The enclosure is suitable for a wide range of environments, with a temperature rating of -40°F to 175°F Additionally, it meets various UL/cUL type ratings including Type 1, 3, 3S, 4, 4X, 6, 6P and 12, making it suitable for harsh conditions.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •Base color RAL 7035 - light grey, with a transparent cover.

    •Temperature range of -40°F to 175°F.

    •Ingress protection rated at IP66 and IP67.

    •Impact resistance rated IK08.

    •Totally insulated for electrical safety.

Specifications:

 Dimensions (Inches) 22 x 14.9 x 7.1
 Dimensions (mm) 558 x 378 x 180
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type Type 1, 3, 3S, 4, 4X, 6, 6P and 12
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK08
 Electrical insulation Totally insulated
 Halogen free (DIN/VDE 0472, Part 815) No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
