522KIT Oil Burner and Boiler Install Kit

522KIT Oil Burner and Boiler Install Kit

SKU: SKU: 522KIT   Download PDF

Qty:
Regular price Now $1,834.95   Web pricing policy
Regular price BEFORE   Sale price Now $1,834.95 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

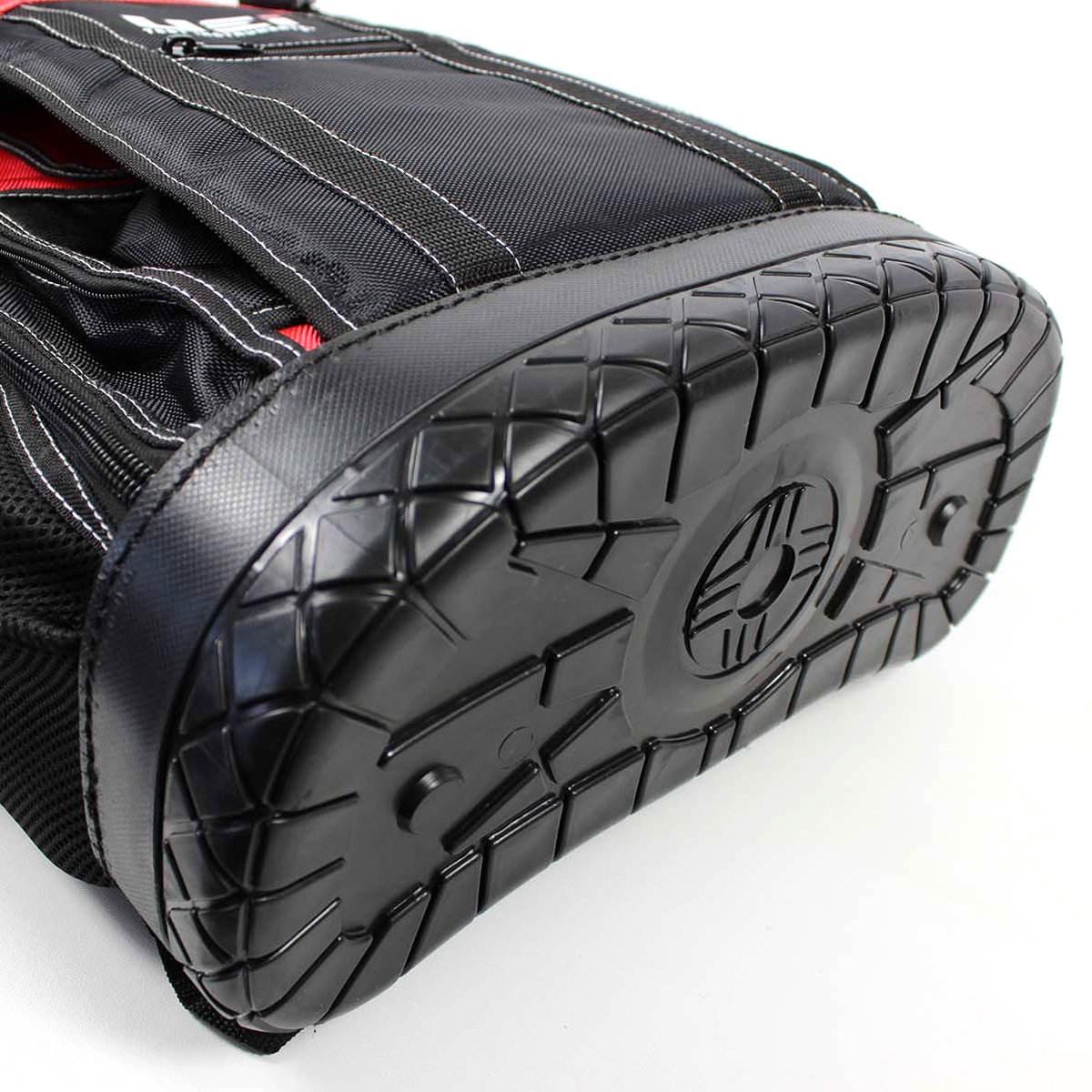

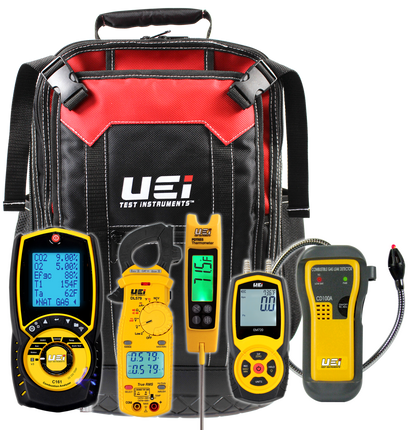

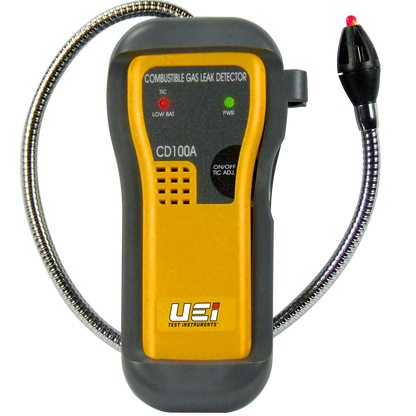

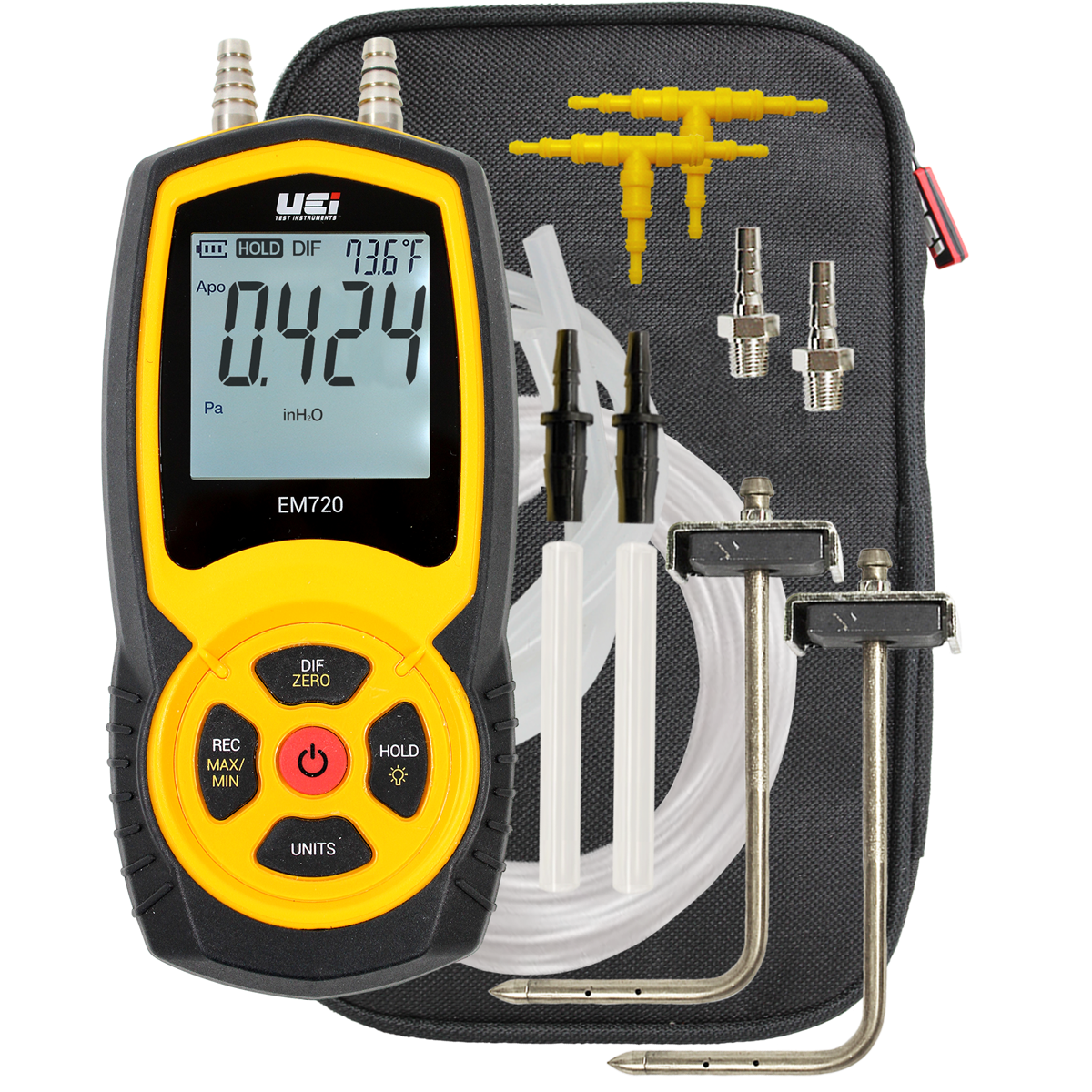

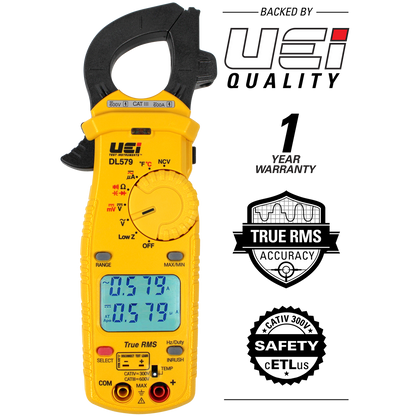

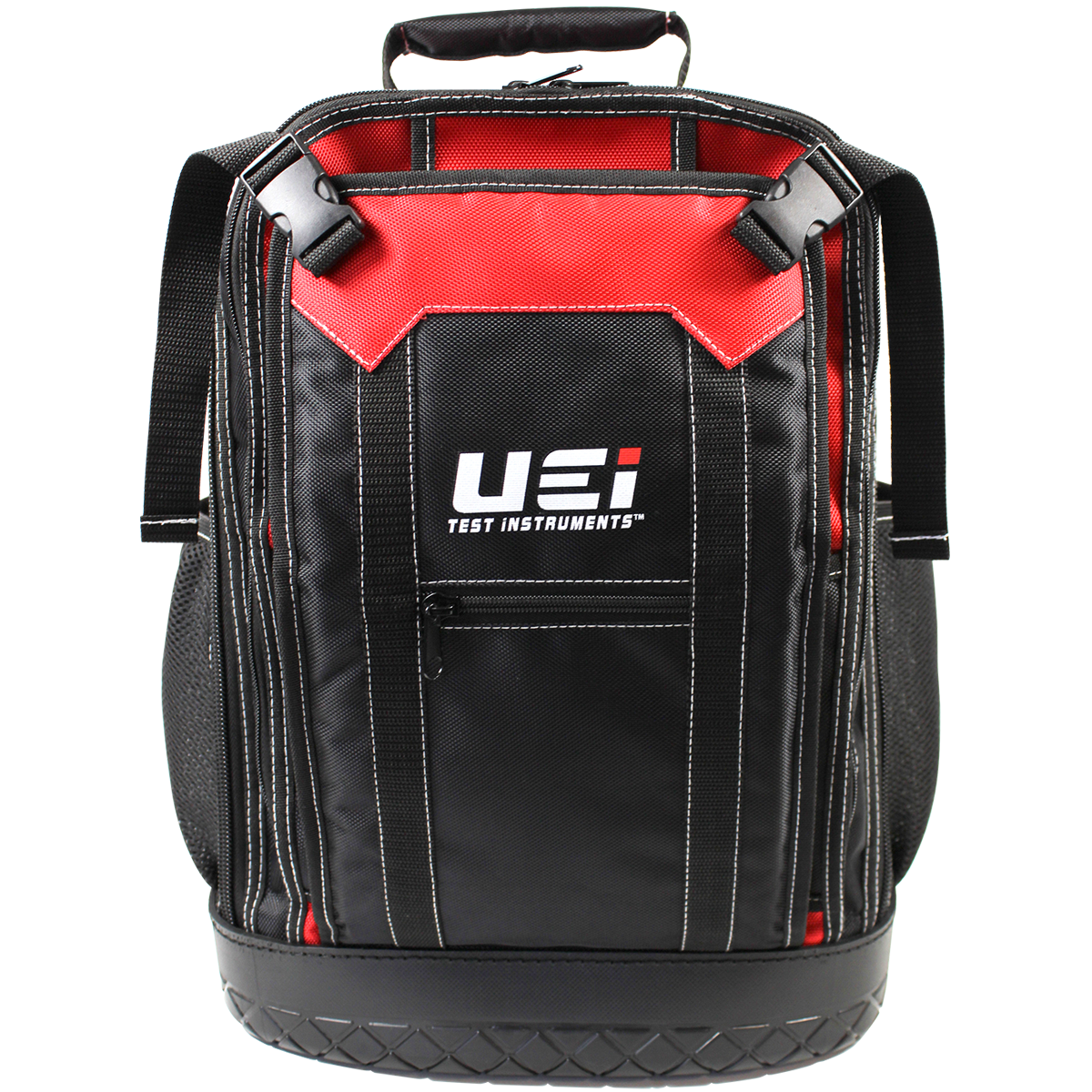

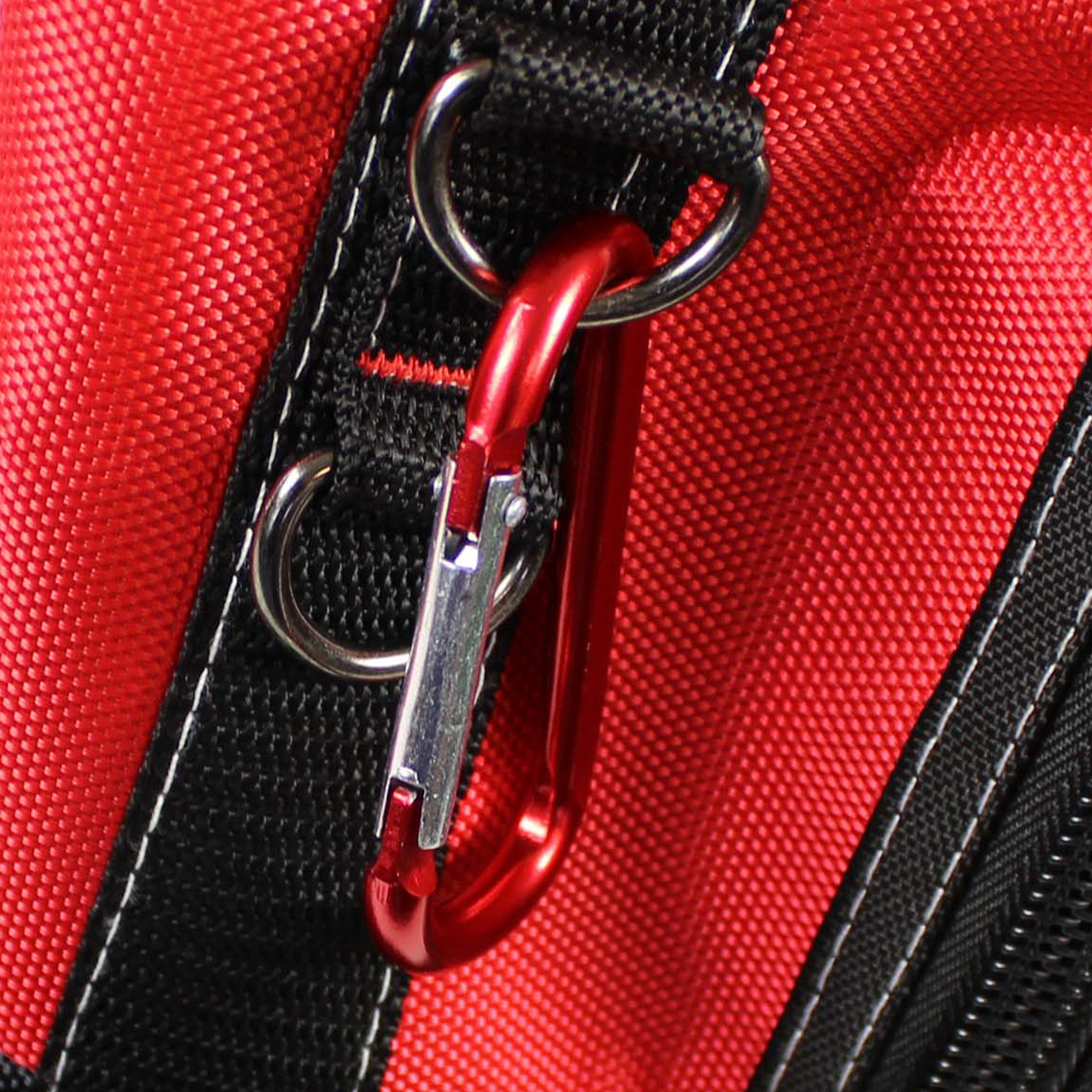

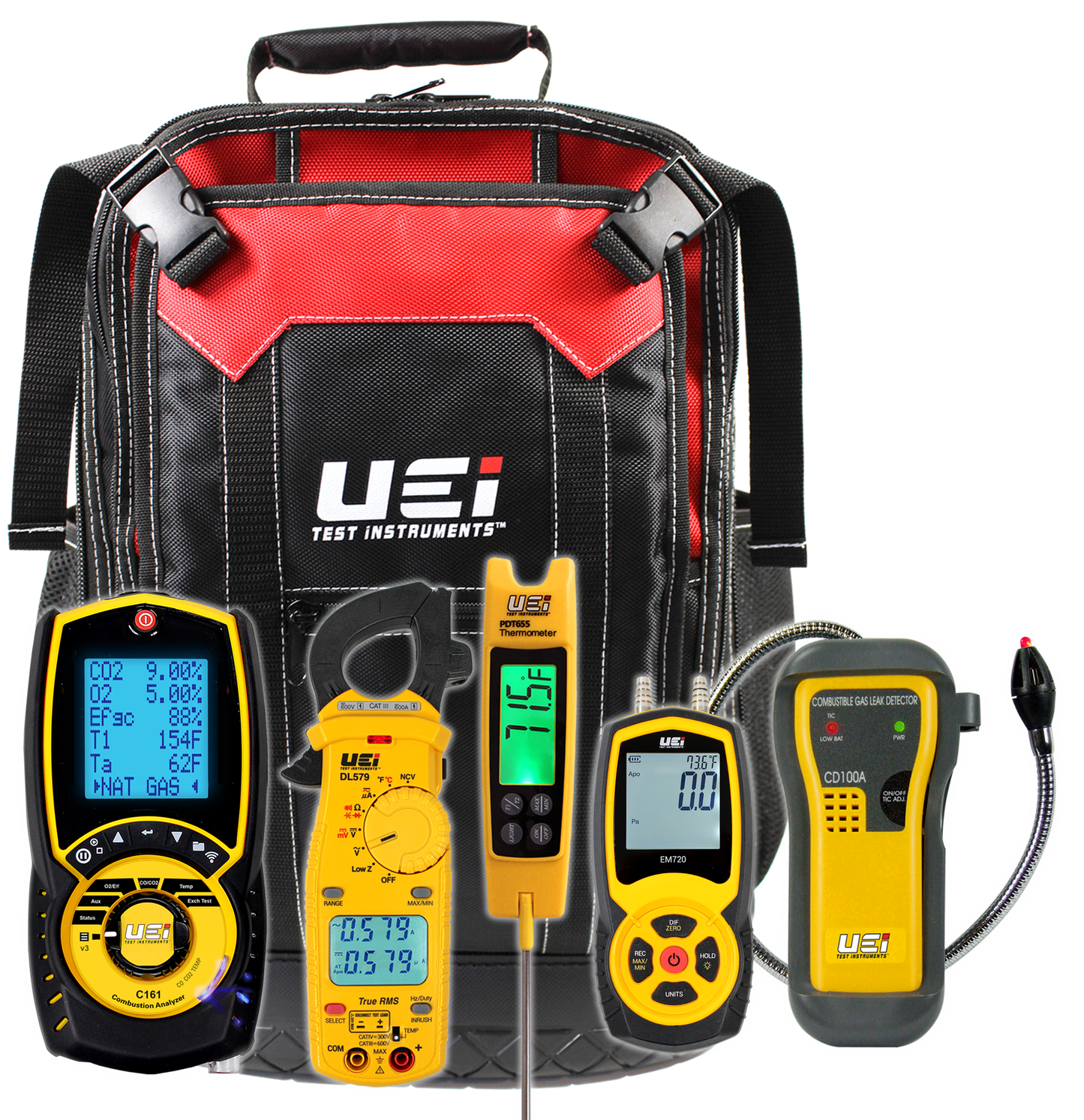

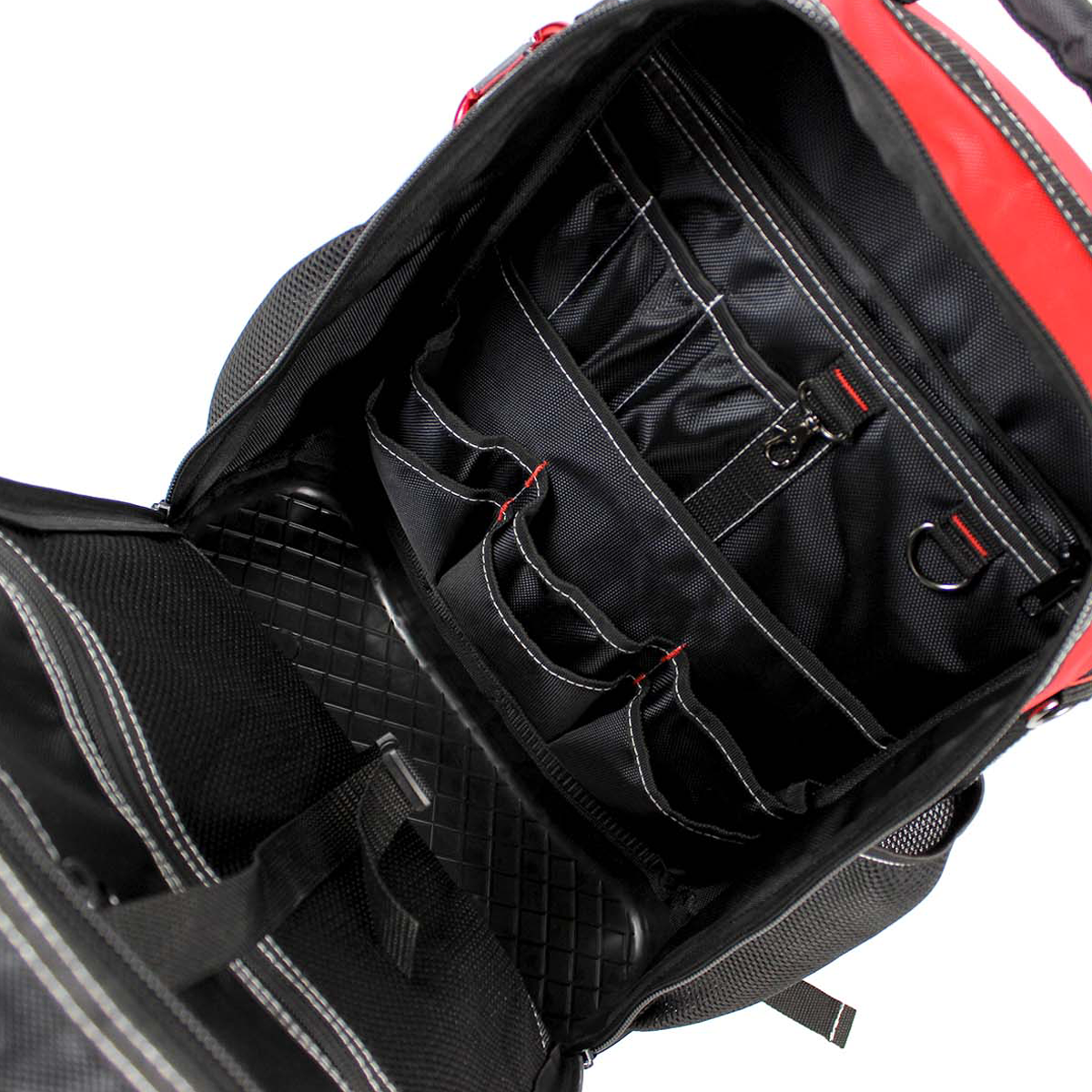

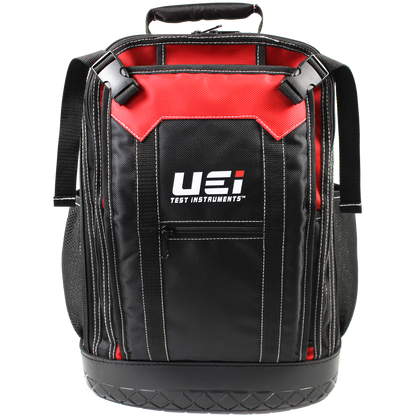

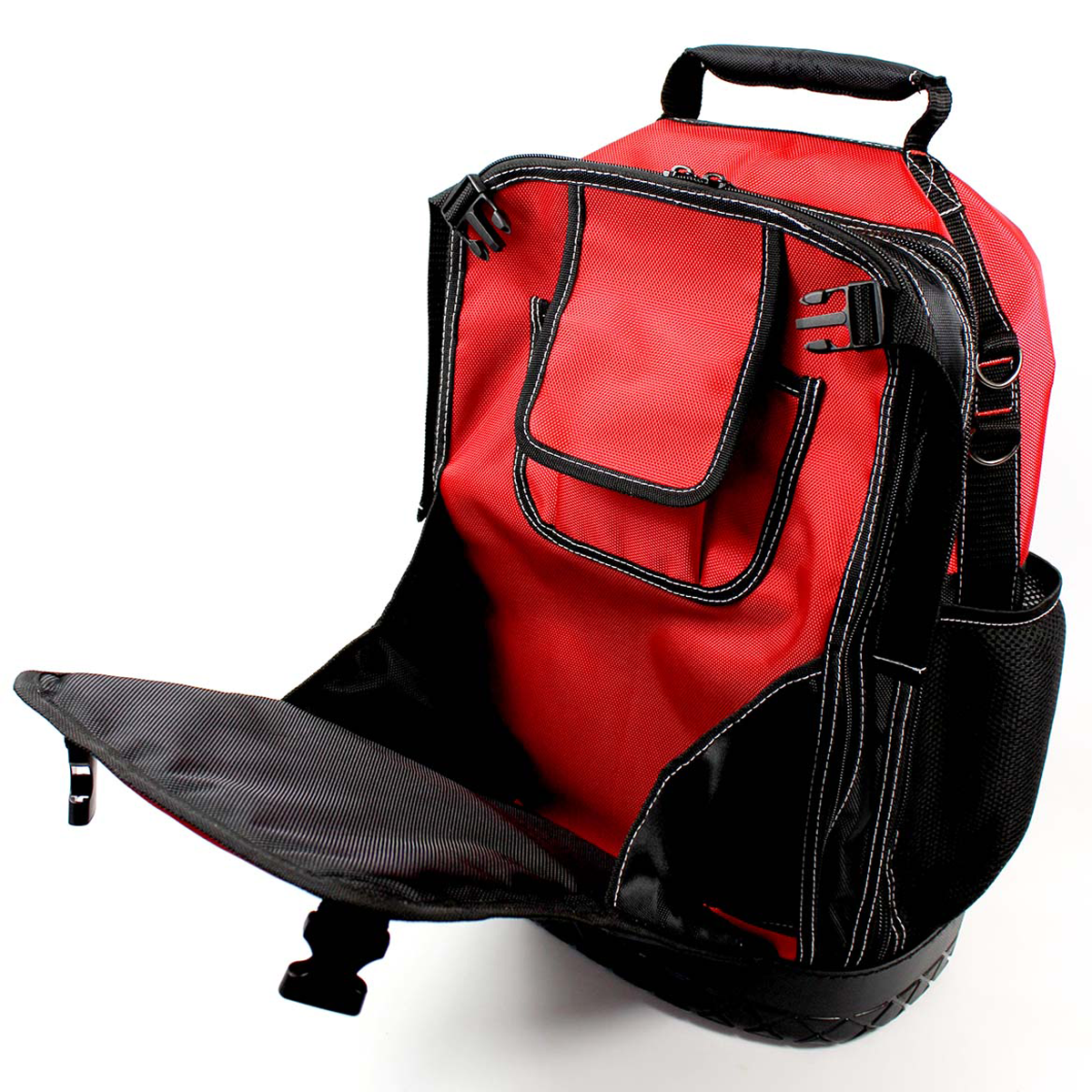

This Kit provides the recommended test instruments required by Oil Burner & Boiler start up manuals for proper installation and maintenance Most equipment warranties require initial install readings to be documented upon installation 522KIT is packed in this UEi Tool Backpack Built rugged, waterproof base, two compartments with inner pocket options and includes D-clip This equipment helps confirm: Manufacturer requirements to maintain warranty, Combustion analysis for fuel efficiency, Heat exchanger integrity, Smoke level in the flue gases, CFM via external static pressure test, Gas flow pressure, System is safe from gas leaks, Proper high voltage to power supply and ground, Low voltage meets wiring diagram requirement.

Features and Benefits:

    •Backlight.

    •Up to 10-Year Warranty with Annual Recertification.

    •Eligible for UEi Service+.

    •Temperature Differential.

    •Differential Pressure.

    •2 Types of Sensor Protection.

    •NOx Filtered CO Sensor.

    •Low Flow Detection.

    •Hold.

    •Min/Max.

    •Auto Power Off.

    •Display Count.

    •Dual Display.

    •Temperature Inputs.

    •Wireless Output.

    •Protective Boot/Overmolding.

    •Dual Pressure Input.

    •Preprogrammed Fuels.

    •High Altitude Compensation.

    •Memory positions.

    •Zero.

    •Selectable Units.

    •Magnetic Mount.

    •Recording/Data Logging.

    •Hi-Resolution Accuracy.

    •Digital.

    •Automatic Fresh Air Purge.

    •Number of Display Parameters.

    •IR Printer Link.

    •TRMS.

    •Continuity.

    •NCV Detection.

    •Low Z.

    •LRA Inrush.

    •Gas Detection Sensitivity.

Specifications:

 AC Current (Amps) 600A AC
 AC Micro Current (Amps) 2000µA
 DC Micro Current (Amps) 2000µA
 AC Volts 750V AC
 DC Volts 1000V DC
 Resistance (Ohms) 60 MΩ
 Capacitance (Farads) 6000µF
 Temperature -328˚ to 2462˚F
 Frequency (Hertz) 99.99kHz
 Duty Cycle (%) 1.0 to 99.0%
 CO 2000ppm
 CO2 20%
 O2 21%
 Flue Temperature 32˚ to 1112˚F
 Inlet Temperature 32˚ to 1112˚F
 Pressure ±60 InH2O
 Ingress Protection IP42
 ETL Listed cETLus
 CE Conformity Yes
 CAT Rating CATIV 300V / CATIII 600V
 RoHS Yes
 FCC/IC Compliant FCC
 REACH Compliant Yes

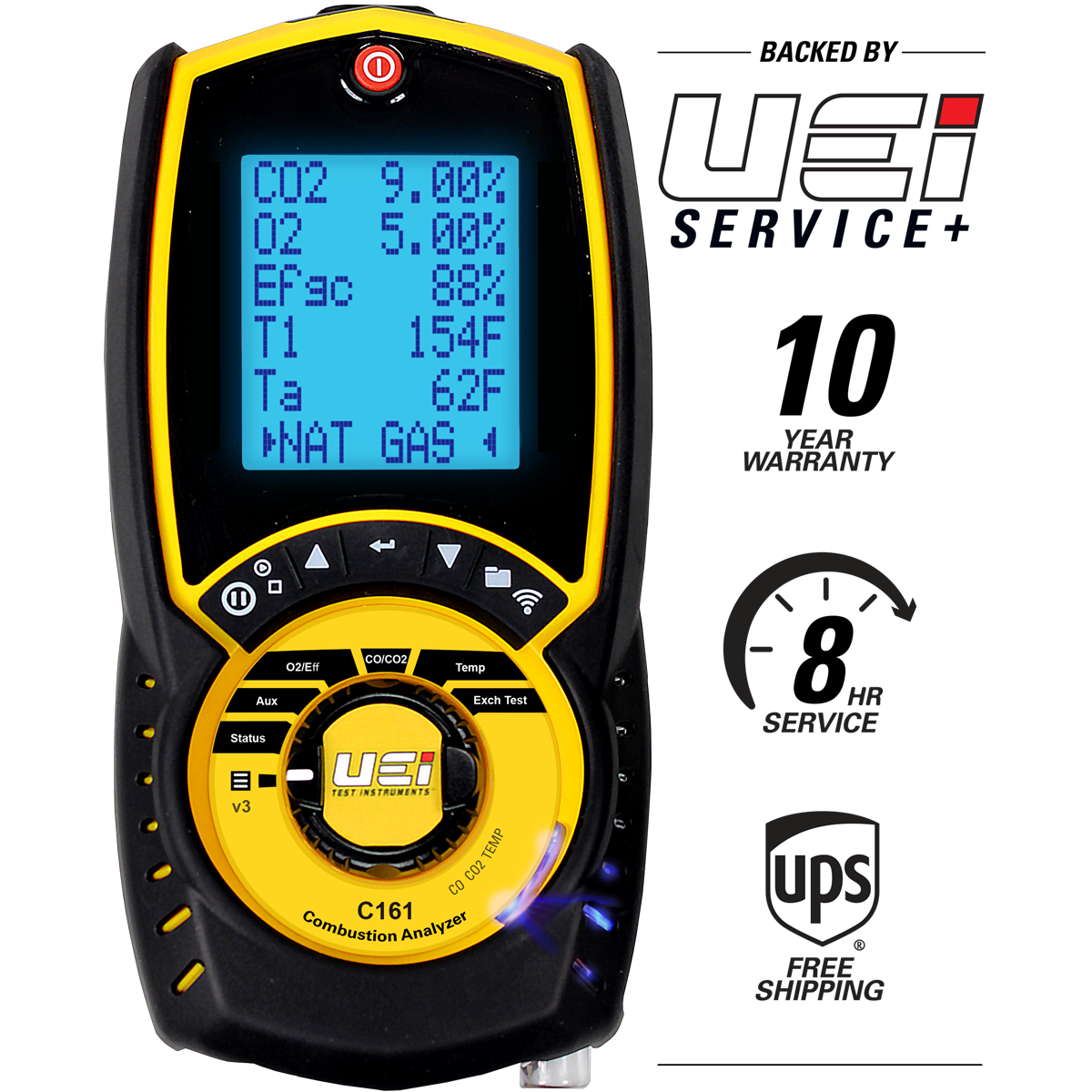

 Certification The C161 is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
 EMC EN50270:2015
 Safety EN61010-1:2010
 Batteries AAA (2), 9V, CR2032, Rechargeable AA (3)
