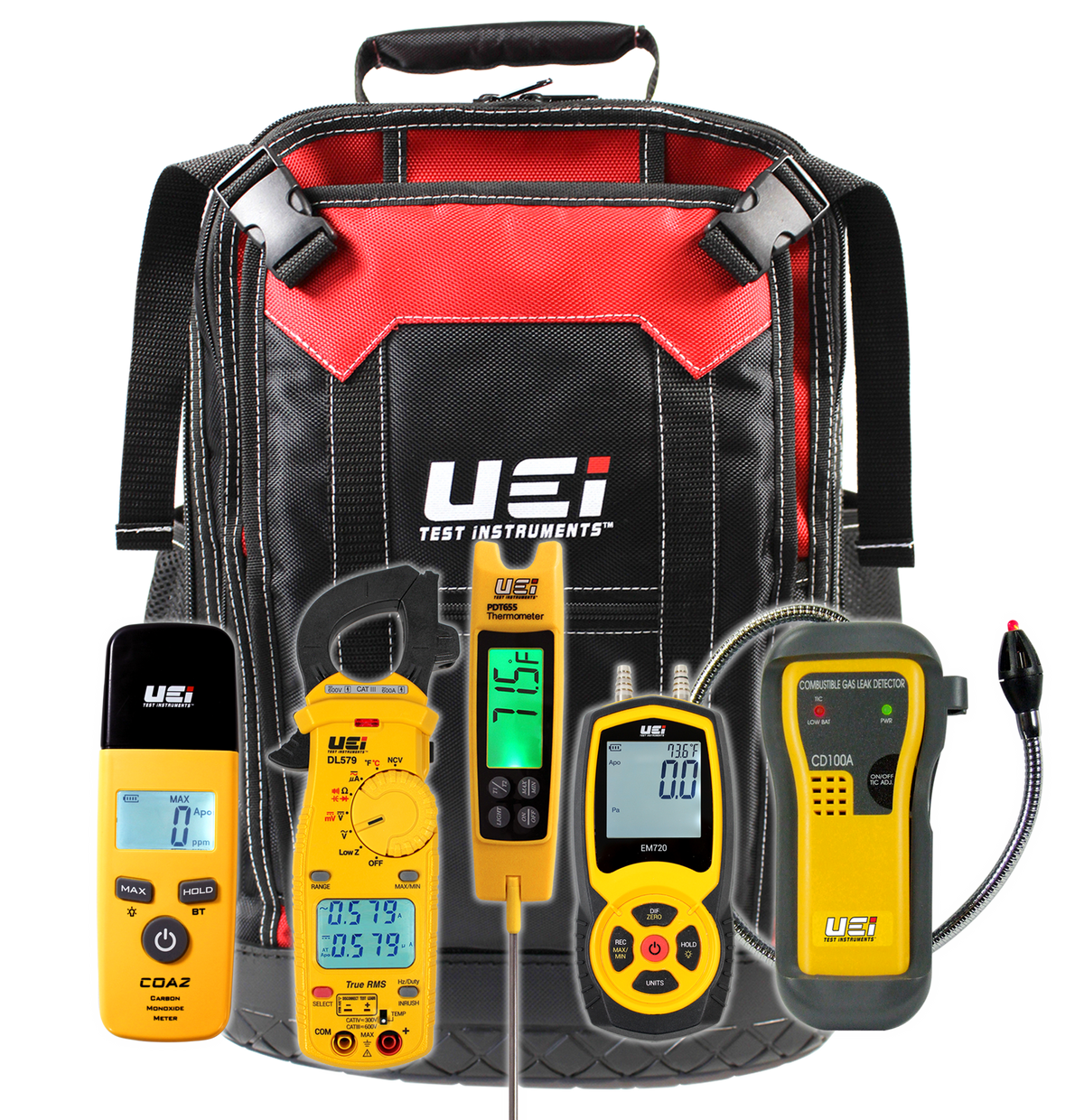

521KIT Gas Furnace Install Kit

Description:

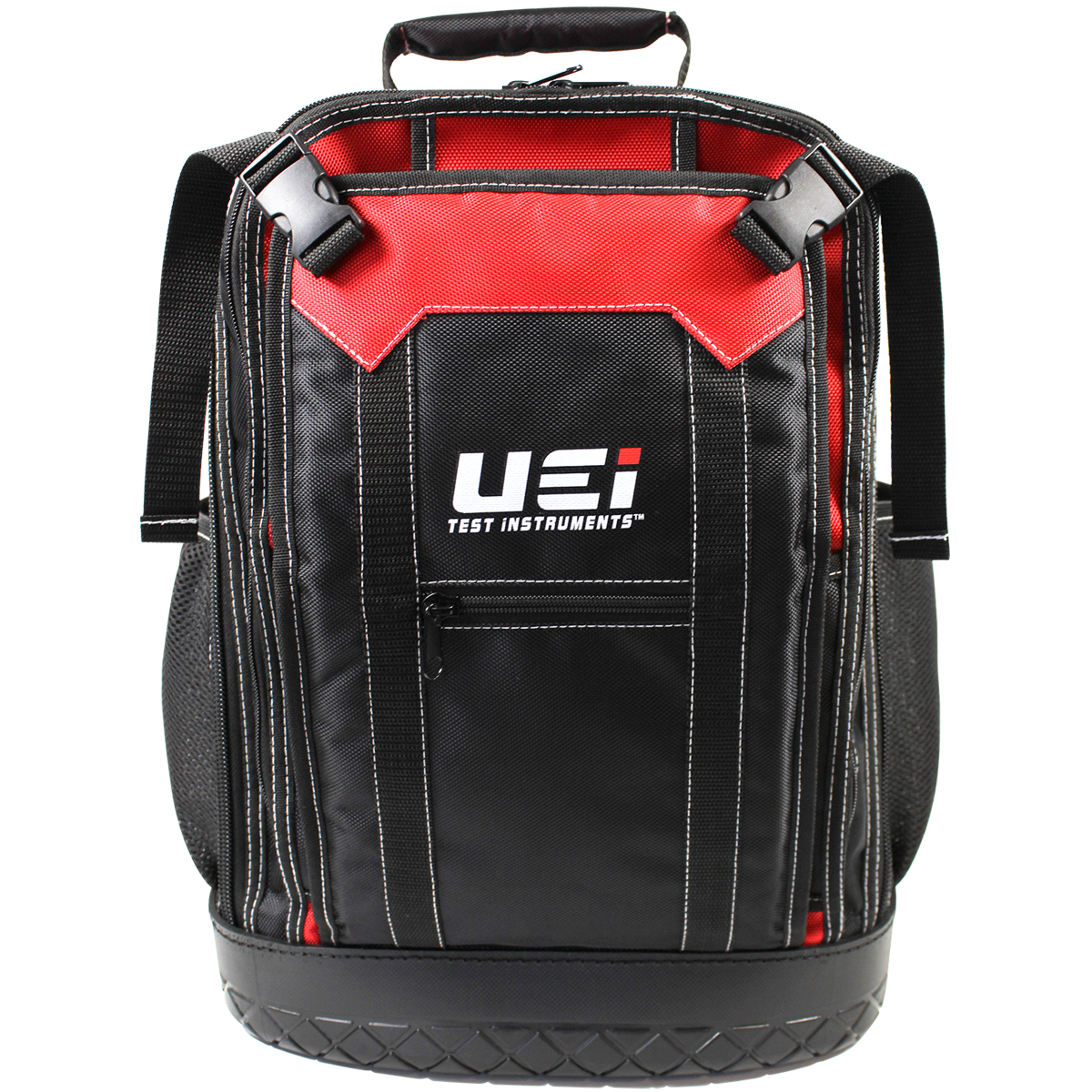

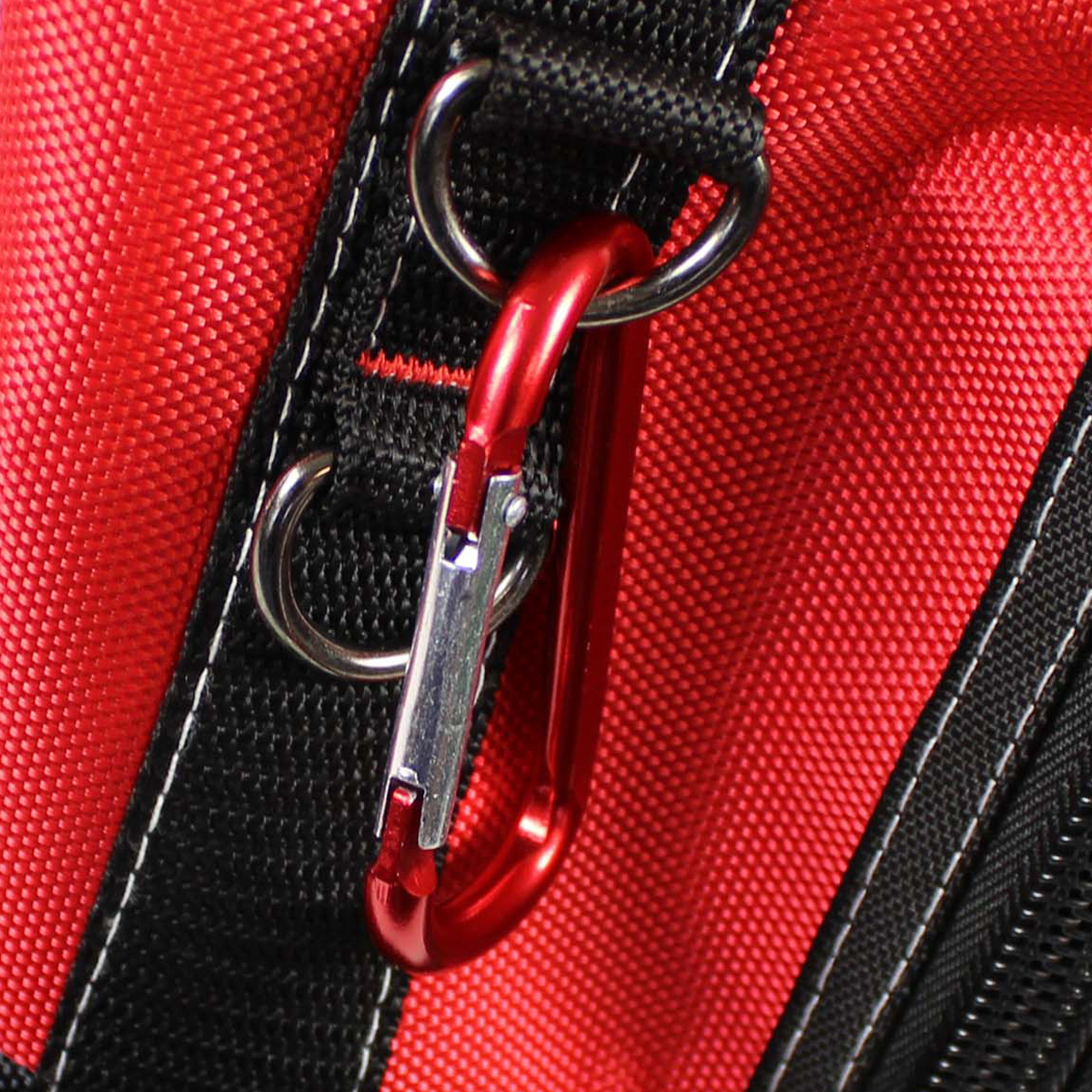

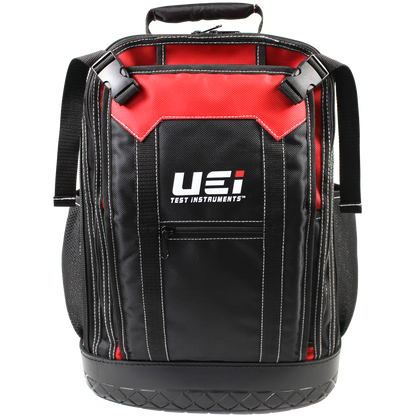

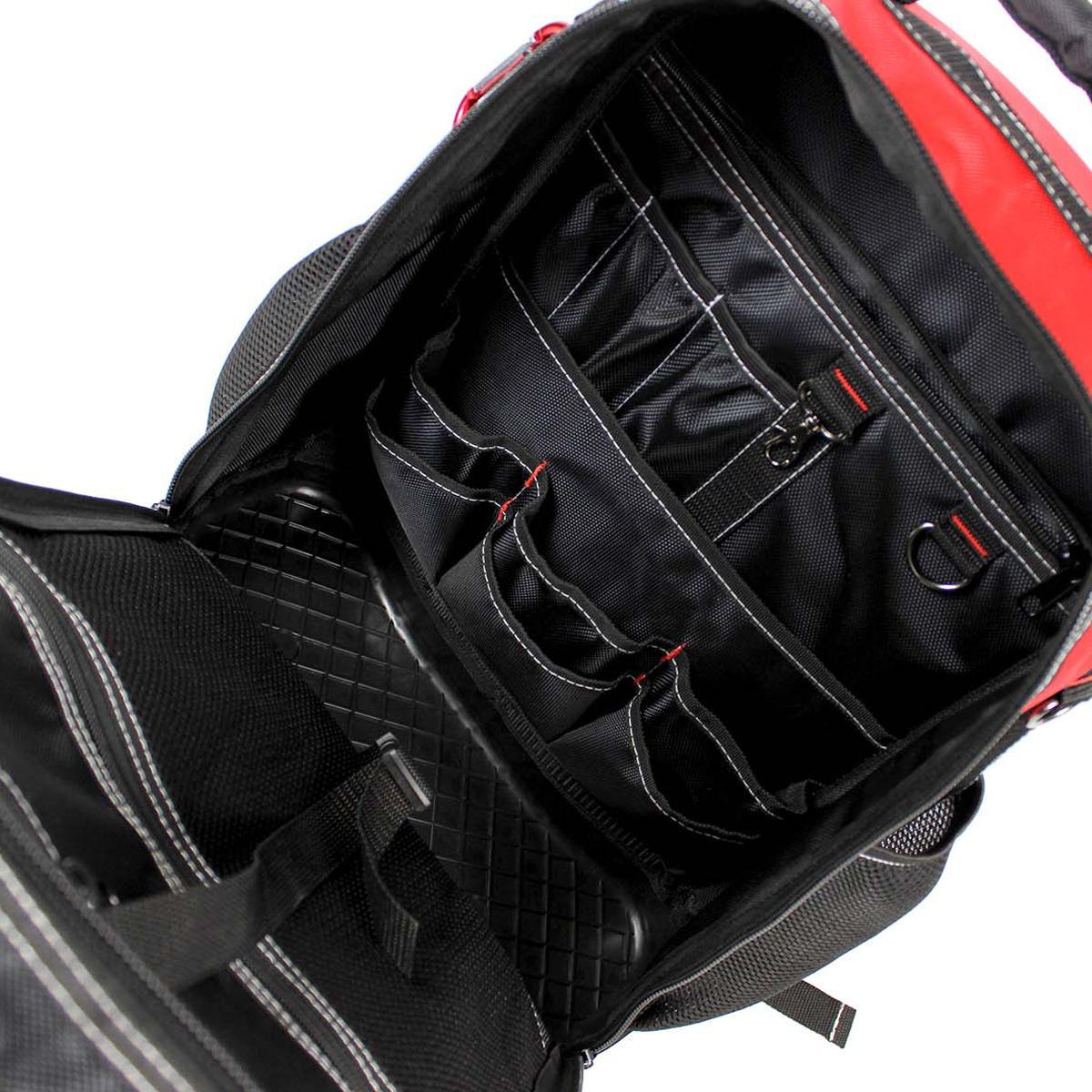

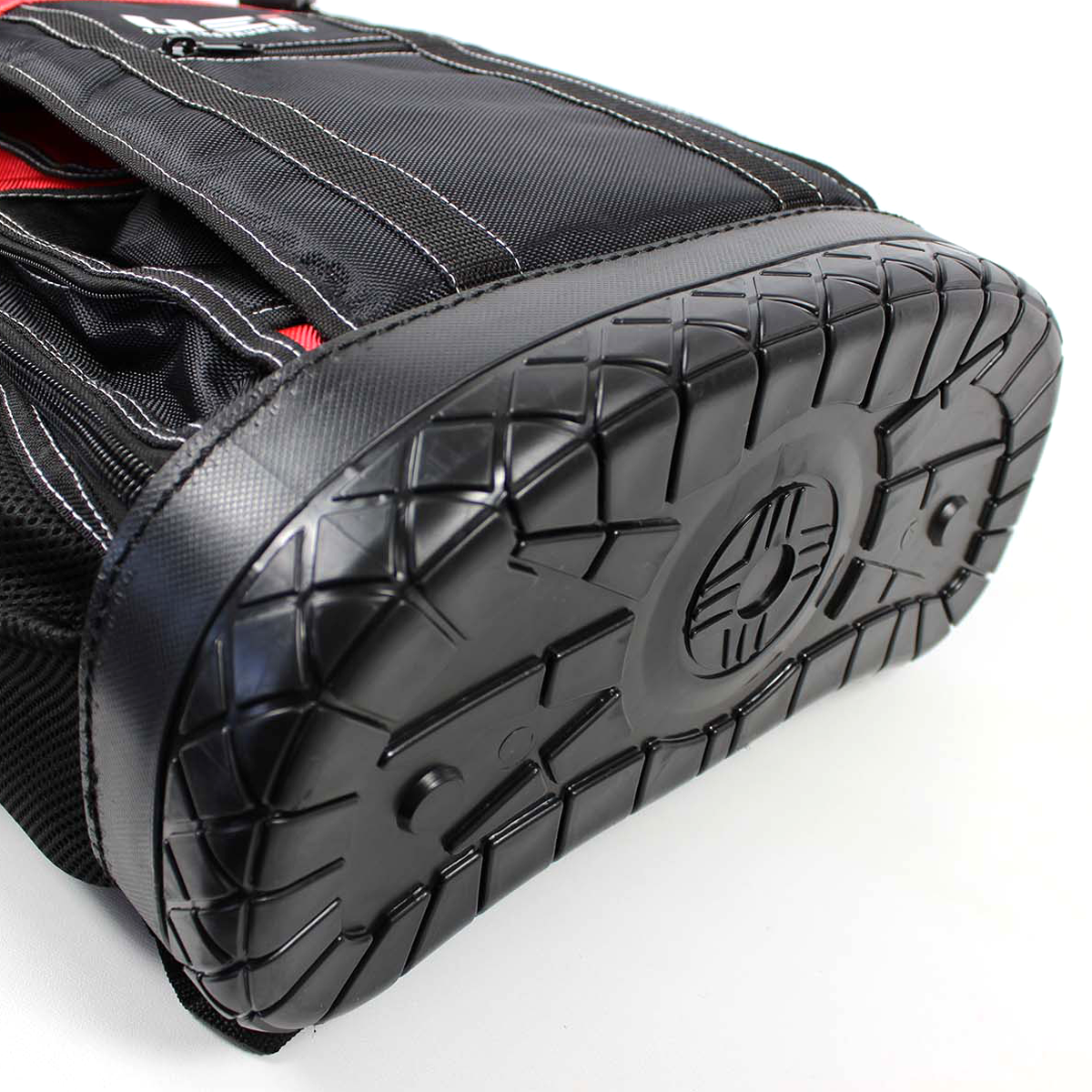

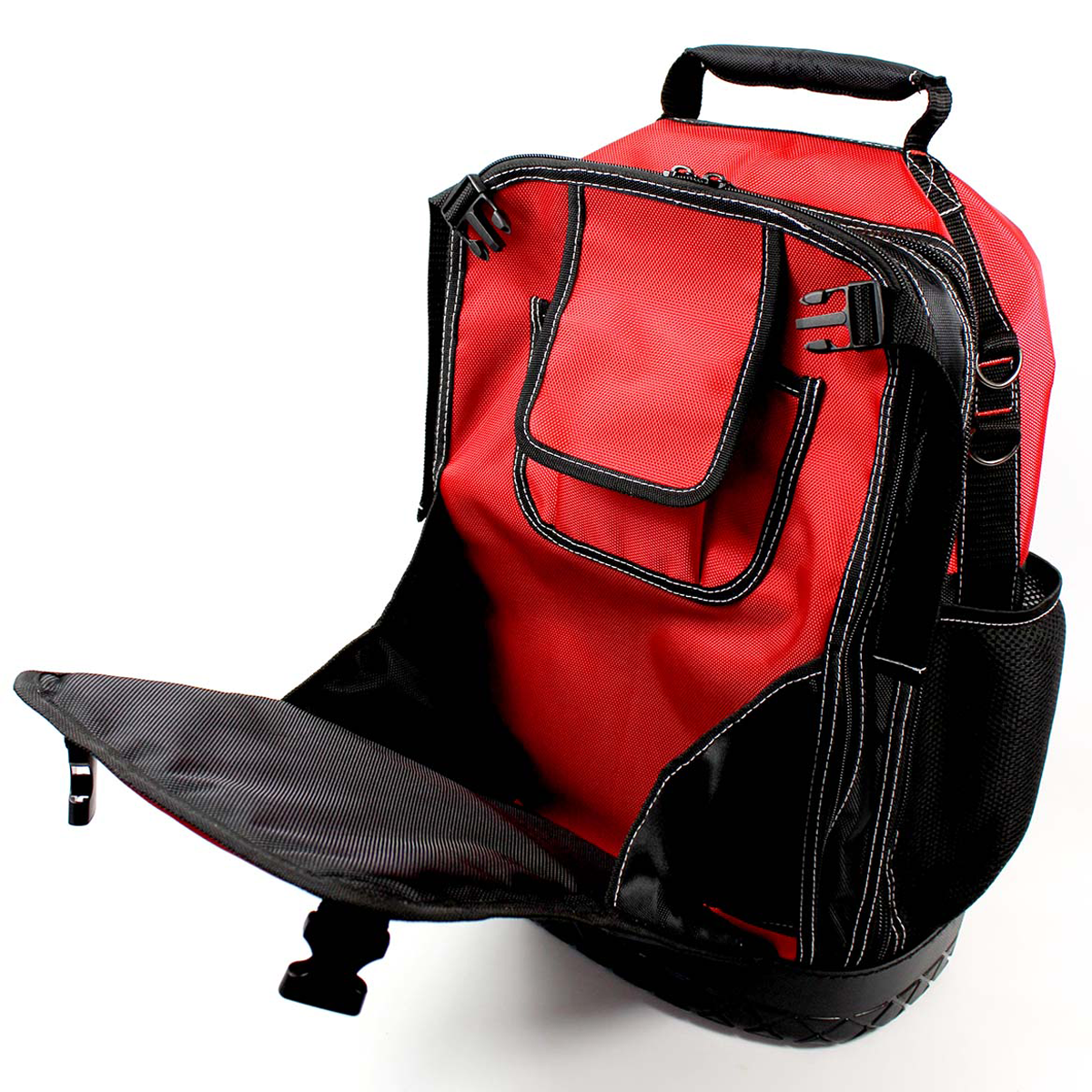

This Kit provides the recommended test instruments required by Gas Furnace start up manuals for proper installation and maintenance Most equipment warranties require initial install readings to be documented upon installation 521KIT is packed in this UEi Tool Backpack, which is built rugged with a waterproof base and features two compartments with inner pockets and an included D-clip This equipment helps confirm: Manufacturer requirements to maintain warranty, Safe Carbon Monoxide levels, CFM via external static pressure test, Gas flow pressure, System is safe from gas leaks, Proper high voltage to power supply and ground, Low voltage meets wiring diagram requirements.

Features and Benefits:

•Backlight: Yes.

•Temperature Differential: Yes.

•Differential Pressure: Yes.

•Hold: Yes.

•Min/Max: Yes.

•Auto Power Off: Yes.

•Display Count: 6000.

•Dual Display: Yes.

•Temperature Inputs: K-Type.

•Free App Available: Yes (Android and iOS compatible).

•Protective Boot/Overmolding: Yes.

•Dual Pressure Input: Yes.

•Zero: Yes.

•Selectable Units: Yes.

•Magnetic Mount: Yes.

•Digital Numeric Leak Indicator: Yes.

•Recording/Data Logging: In App.

•Hi-Resolution Accuracy: Yes.

•K-Type Input: Yes.

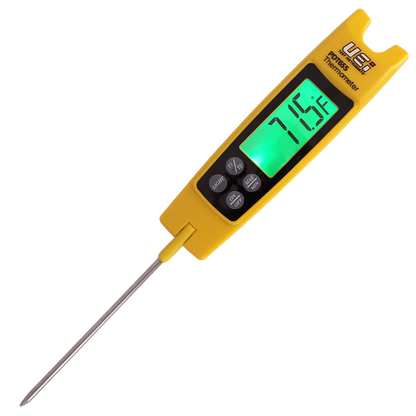

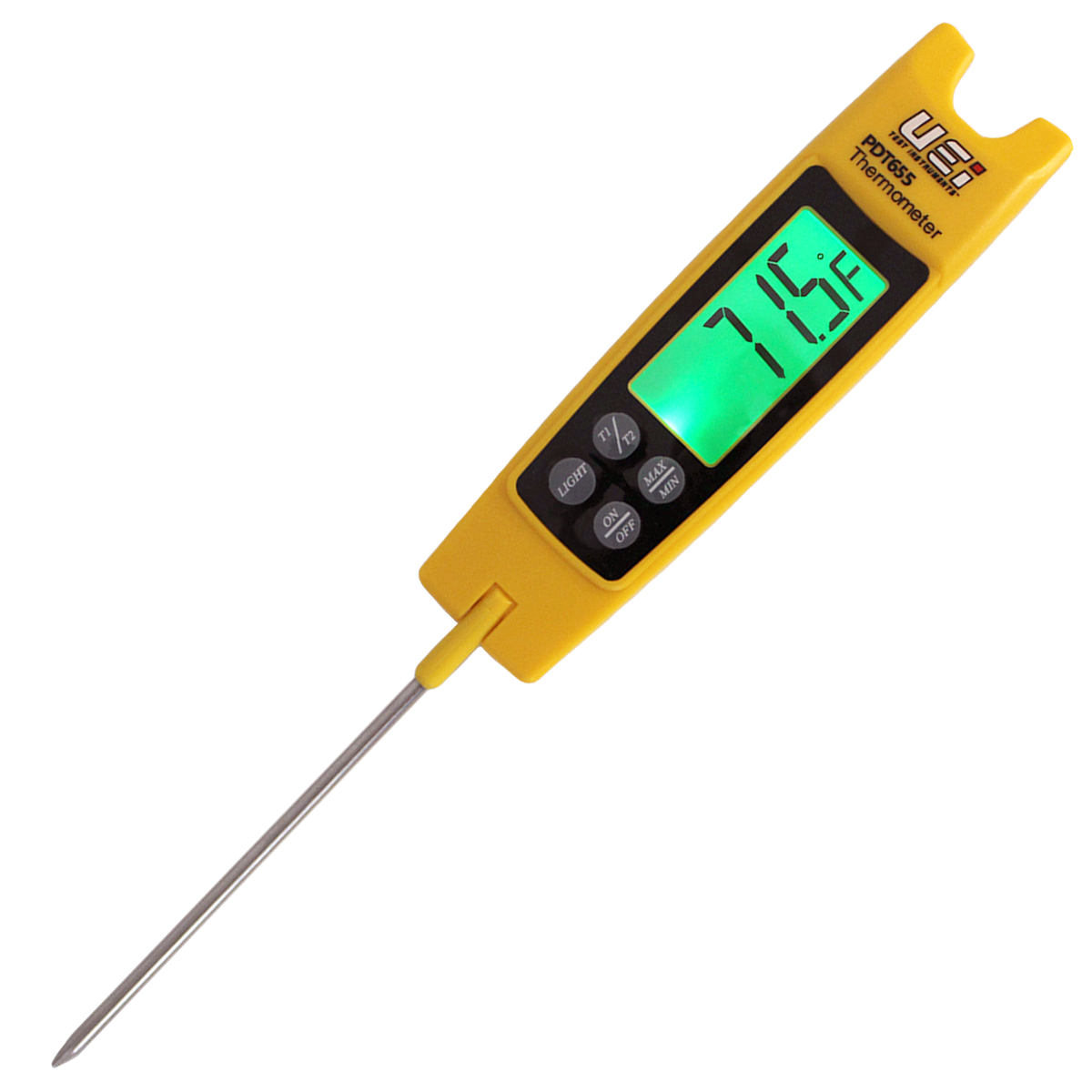

•Folding Temperature Probe: Yes.

•Digital: Yes.

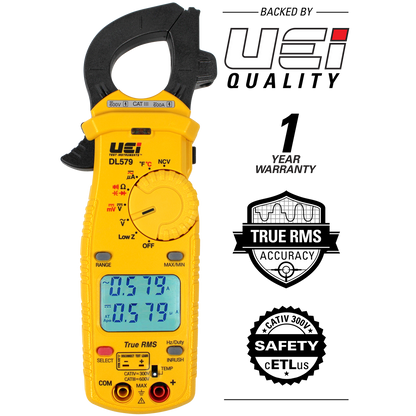

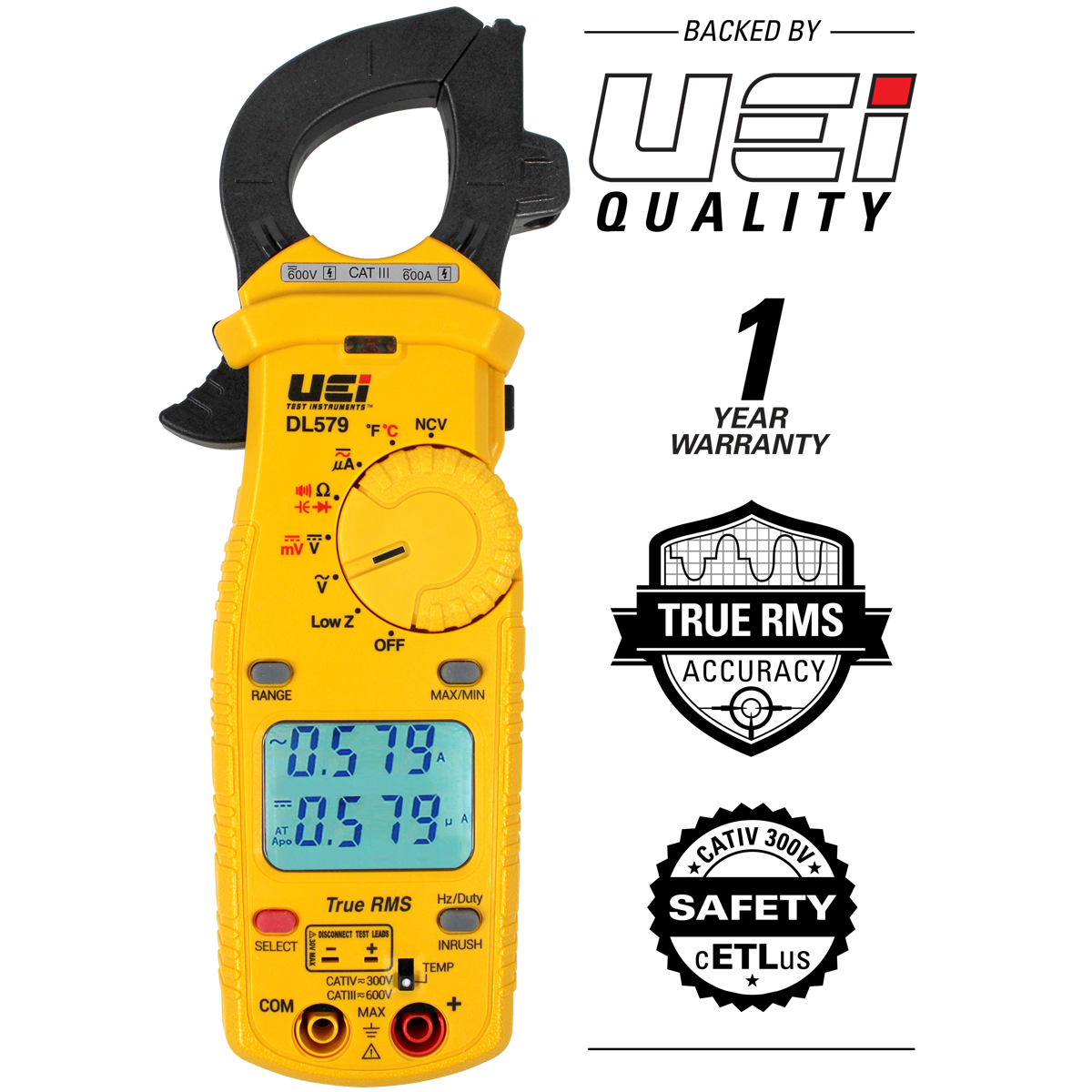

•TRMS: Yes.

•AC Current (Amps): 600A AC.

•AC Micro Current (Amps): 2000µA.

•DC Micro Current (Amps): 2000µA.

•AC Volts: 750VAC.

•DC Volts: 1000V DC.

•Resistance (Ohms): 60 MΩ.

•Diode: Yes.

•Capacitance (Farads): 6000µF.

•Temperature: -328˚ to 2462˚F.

•Frequency (Hertz): 99.99kHz.

•Duty Cycle (%): Yes.

•Continuity: Yes.

•NCV Detection: Yes.

•Low Z: Yes.

•LRA Inrush: Yes.

•DC Microvolts: 600mV.

•AC Microvolts: 600mV.

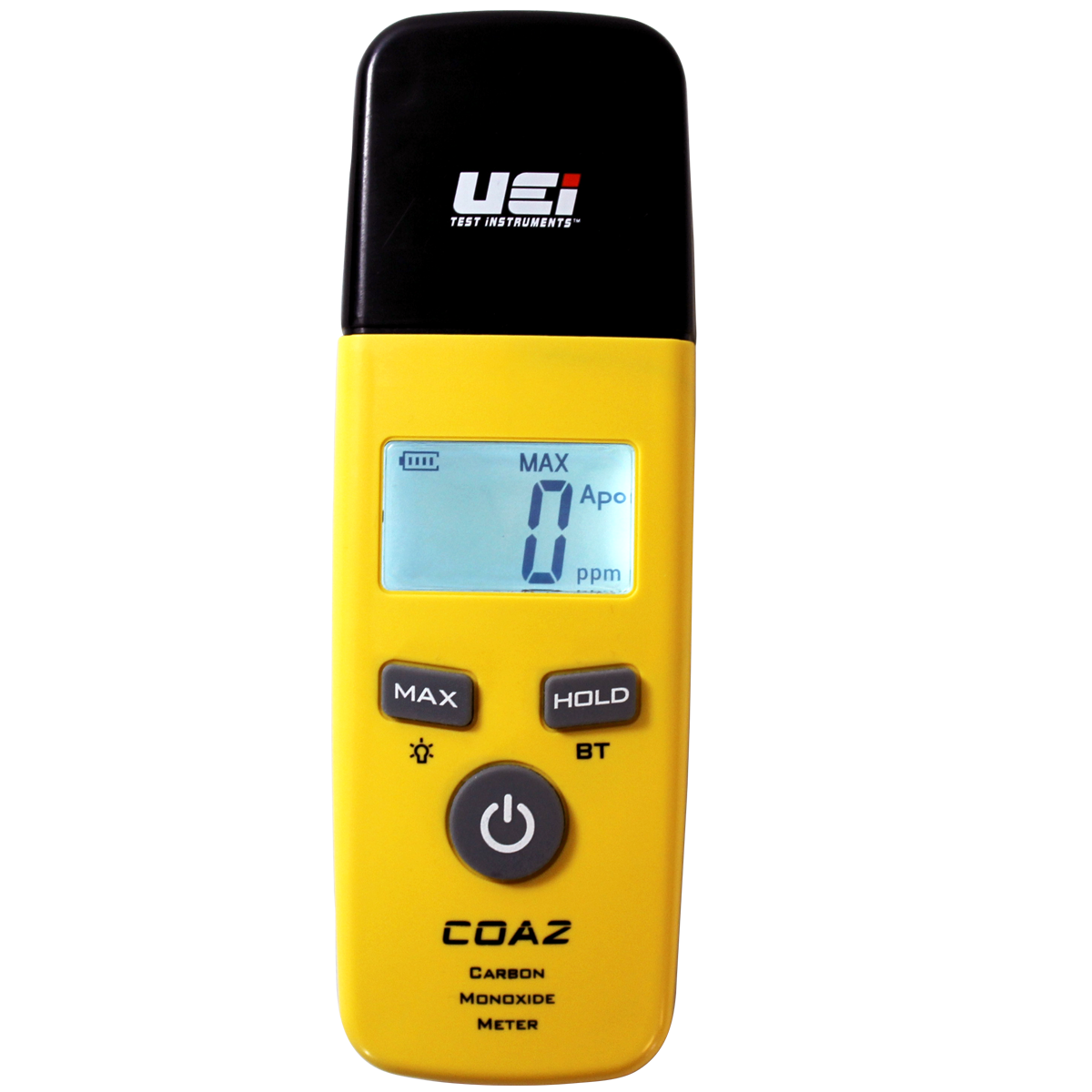

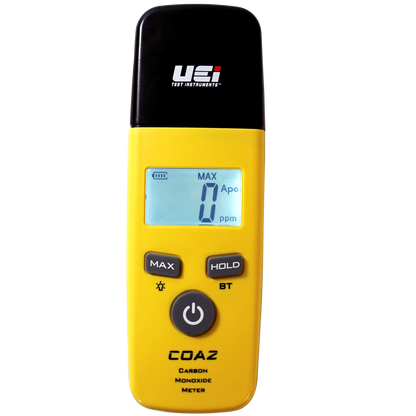

•CO: 0-999ppm.

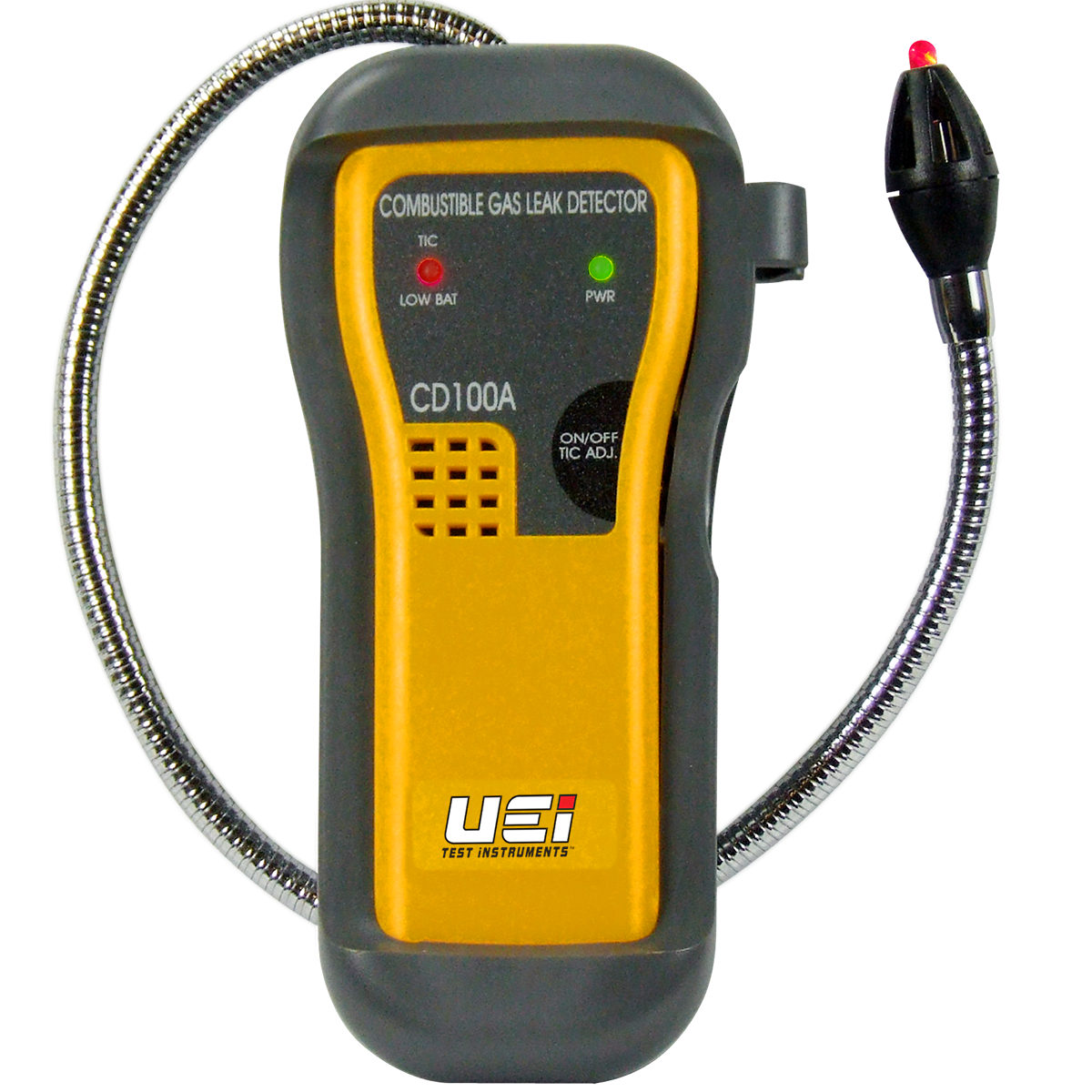

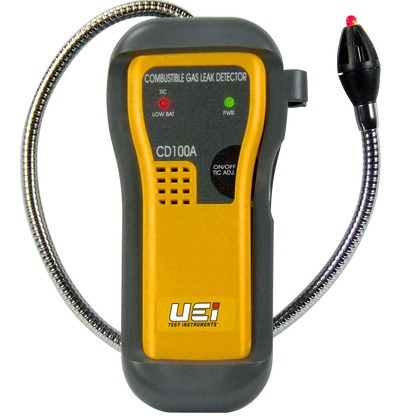

•Detects: Combustible Gas.

•Detection Sensitivity: < 50ppm methane.

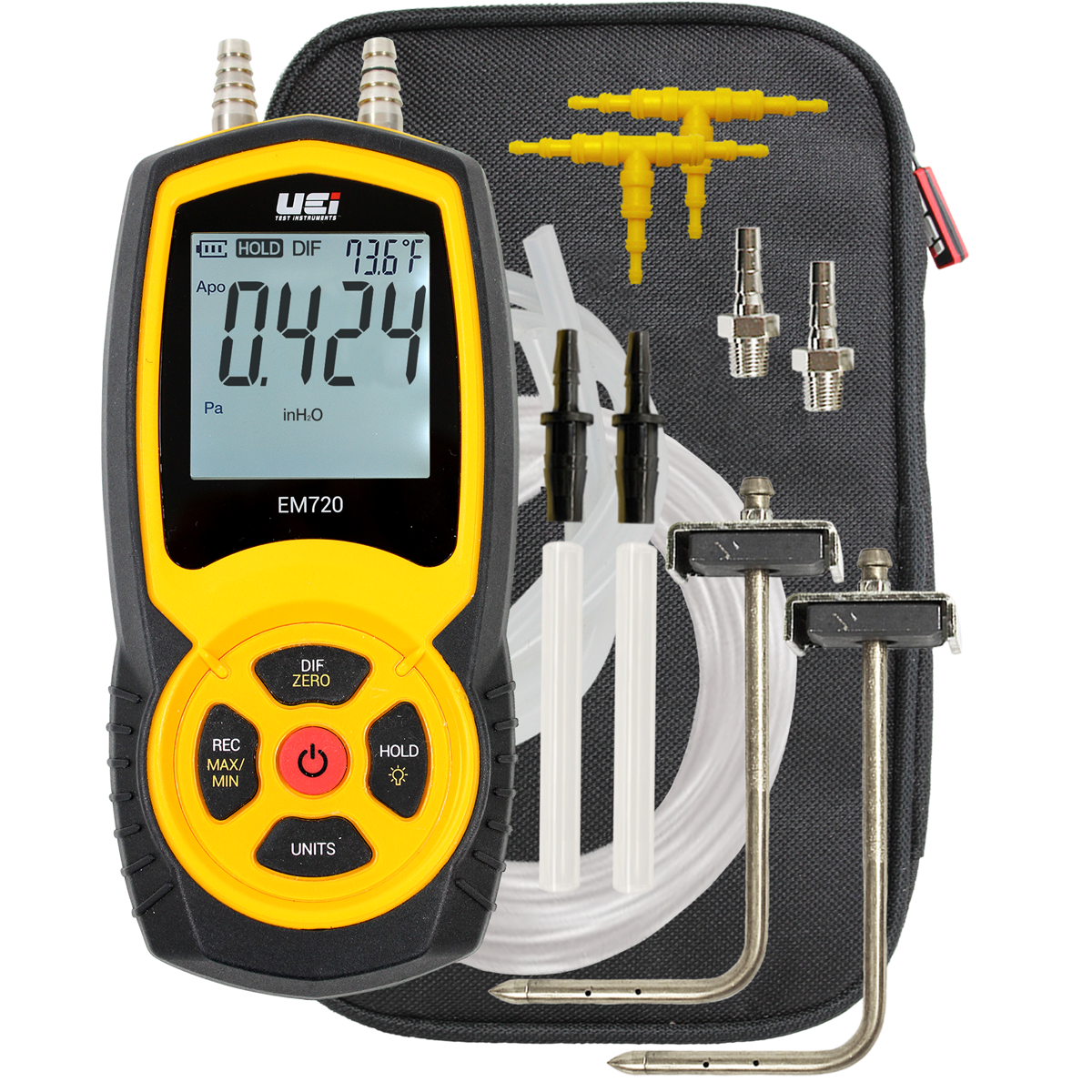

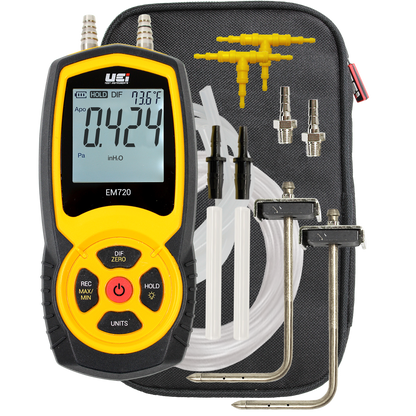

•Pressure: ±60 InH2O.

•Ingress Protection: IP42.

•ETL Listed: cETLus.

•IEC 61010: 61010-1: 2012.

•CE Conformity: Yes.

•CAT Rating: CATIV 300V / CATIII 600V.

•RoHS: Yes.

•FCC/IC Compliant: FCC.
