520KIT Furnace Install Kit

Description:

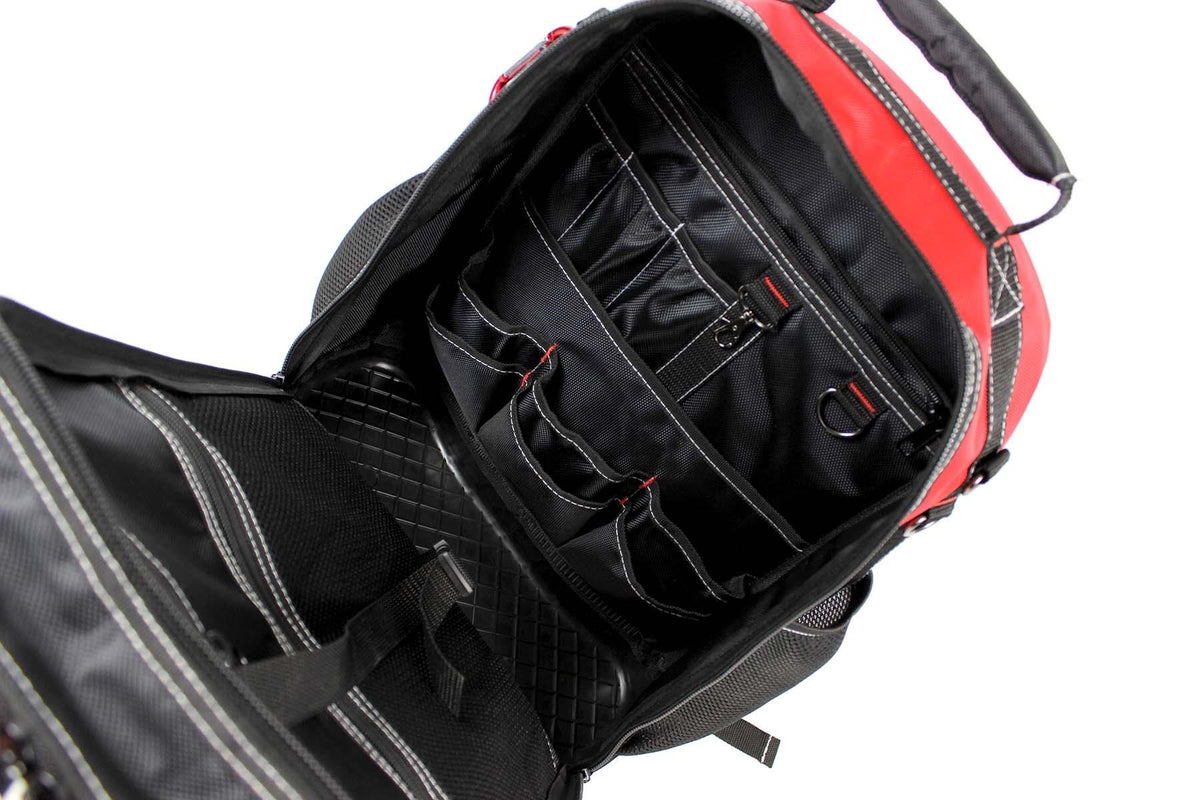

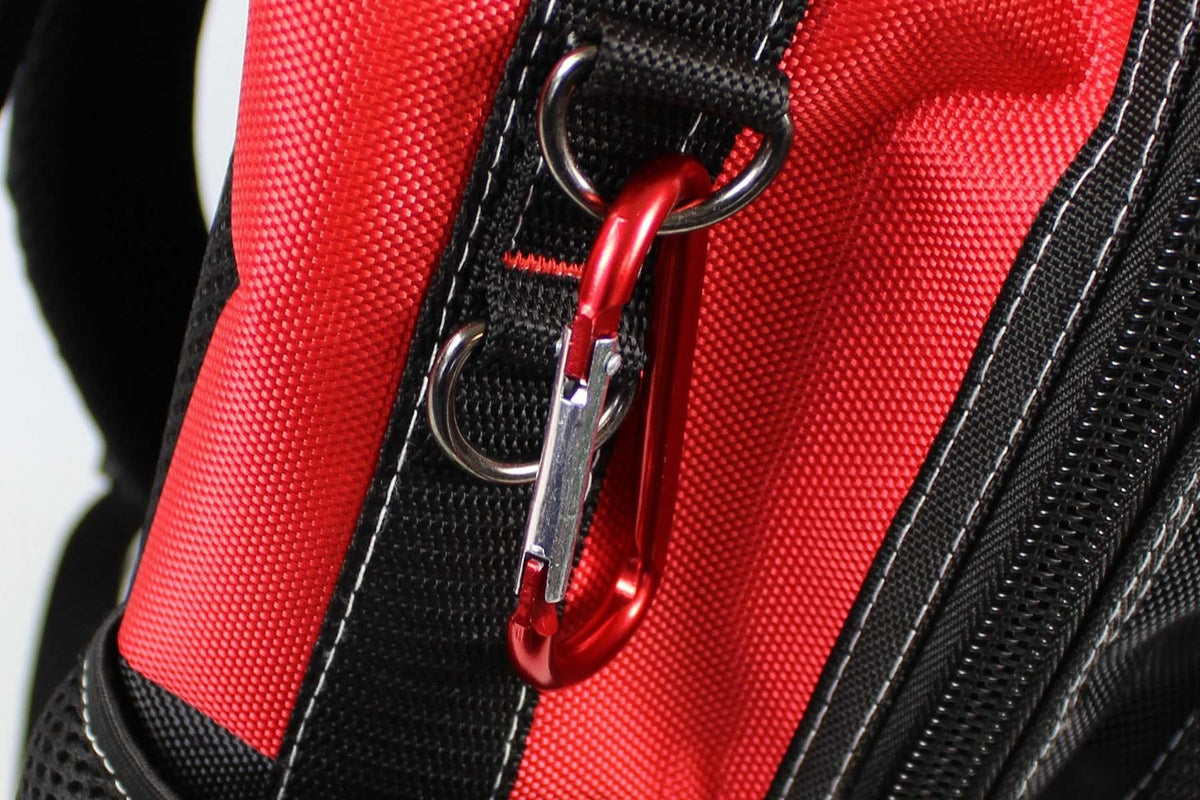

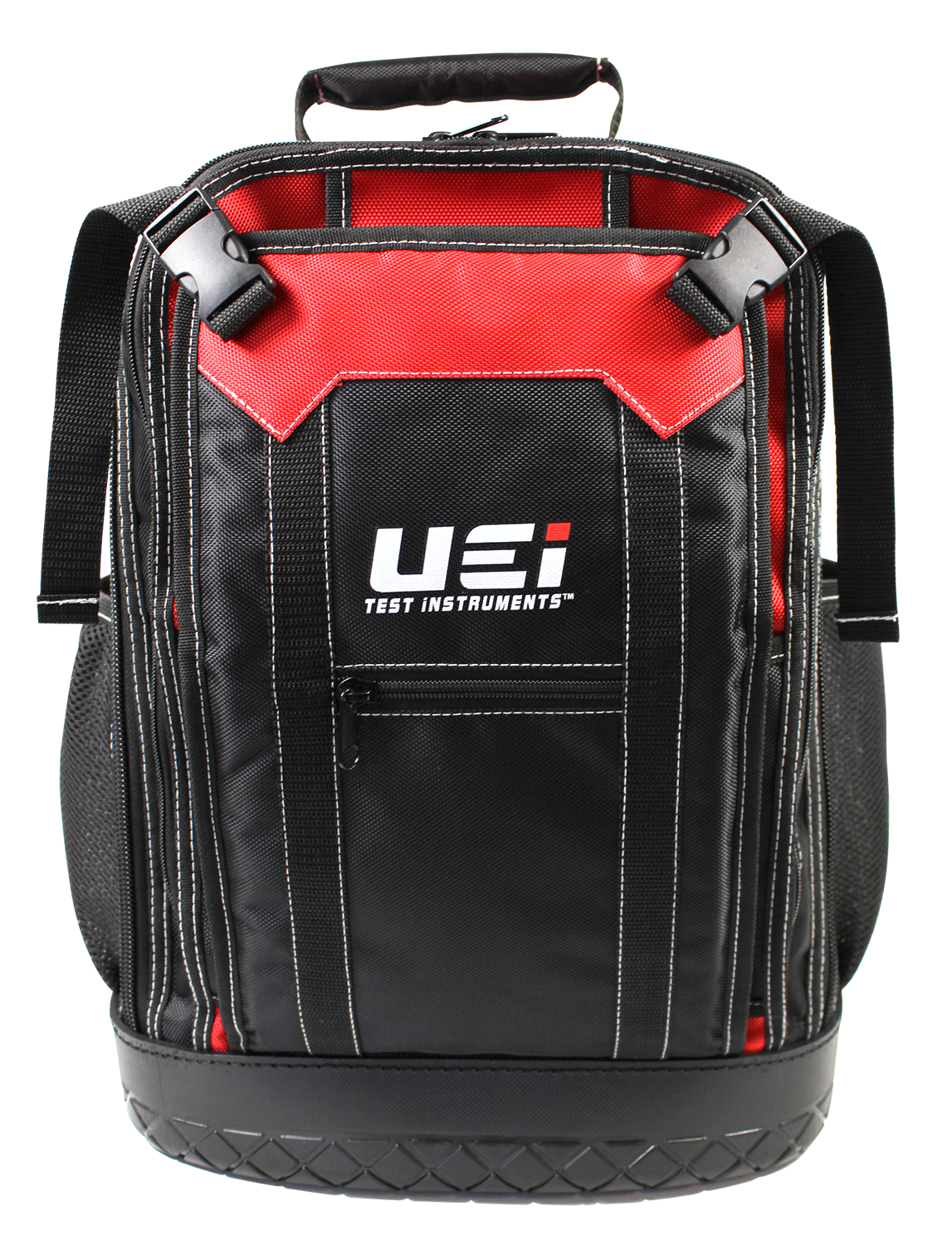

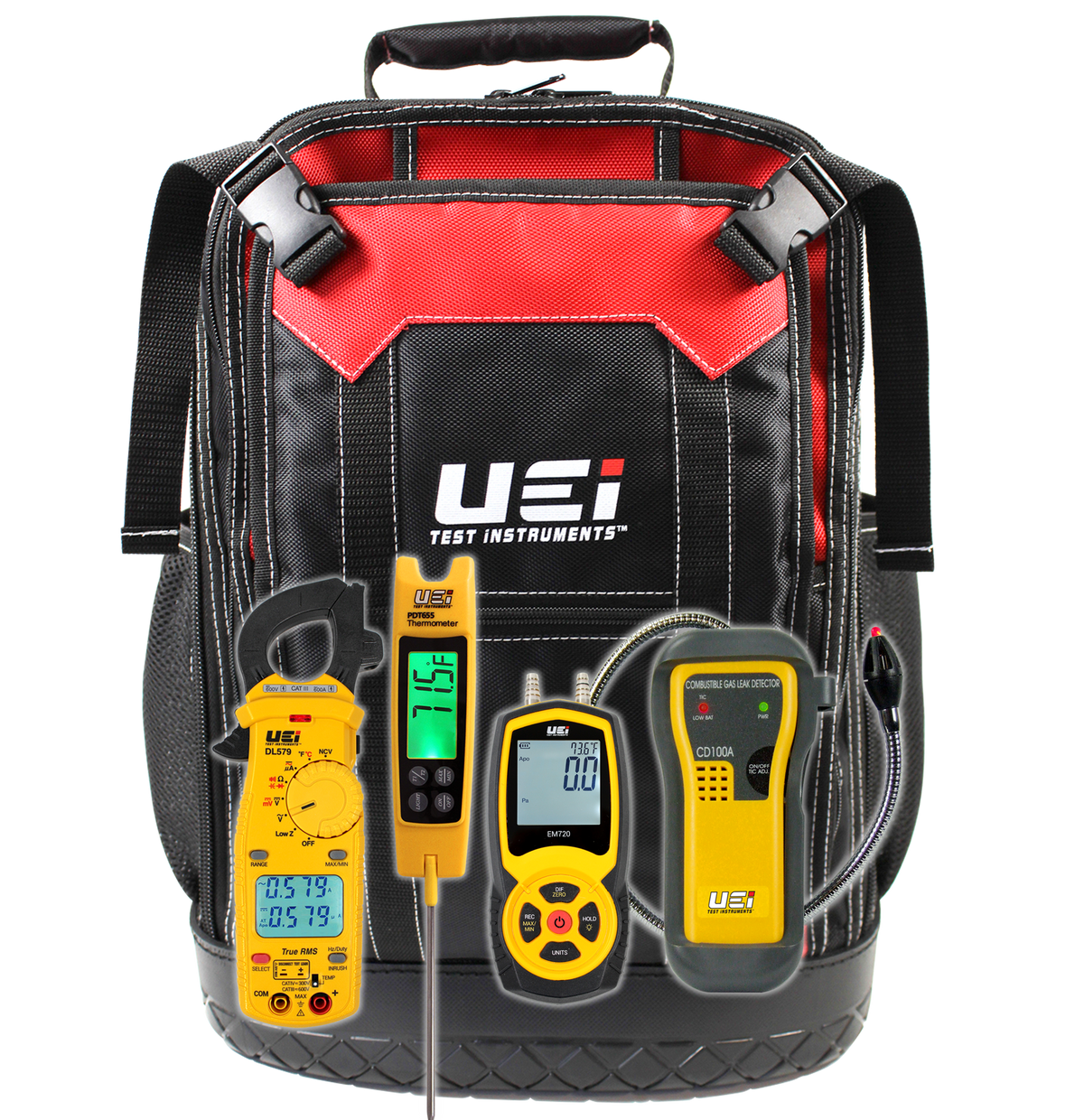

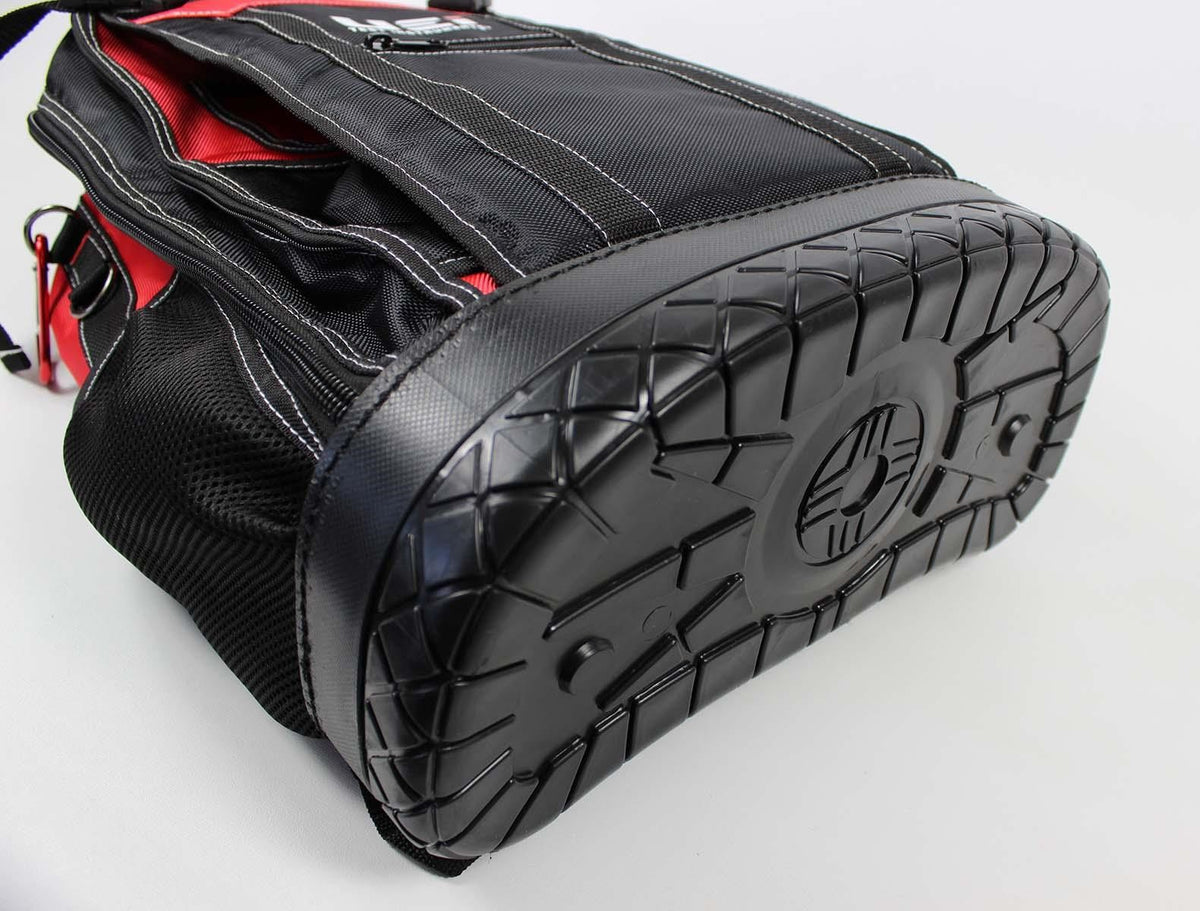

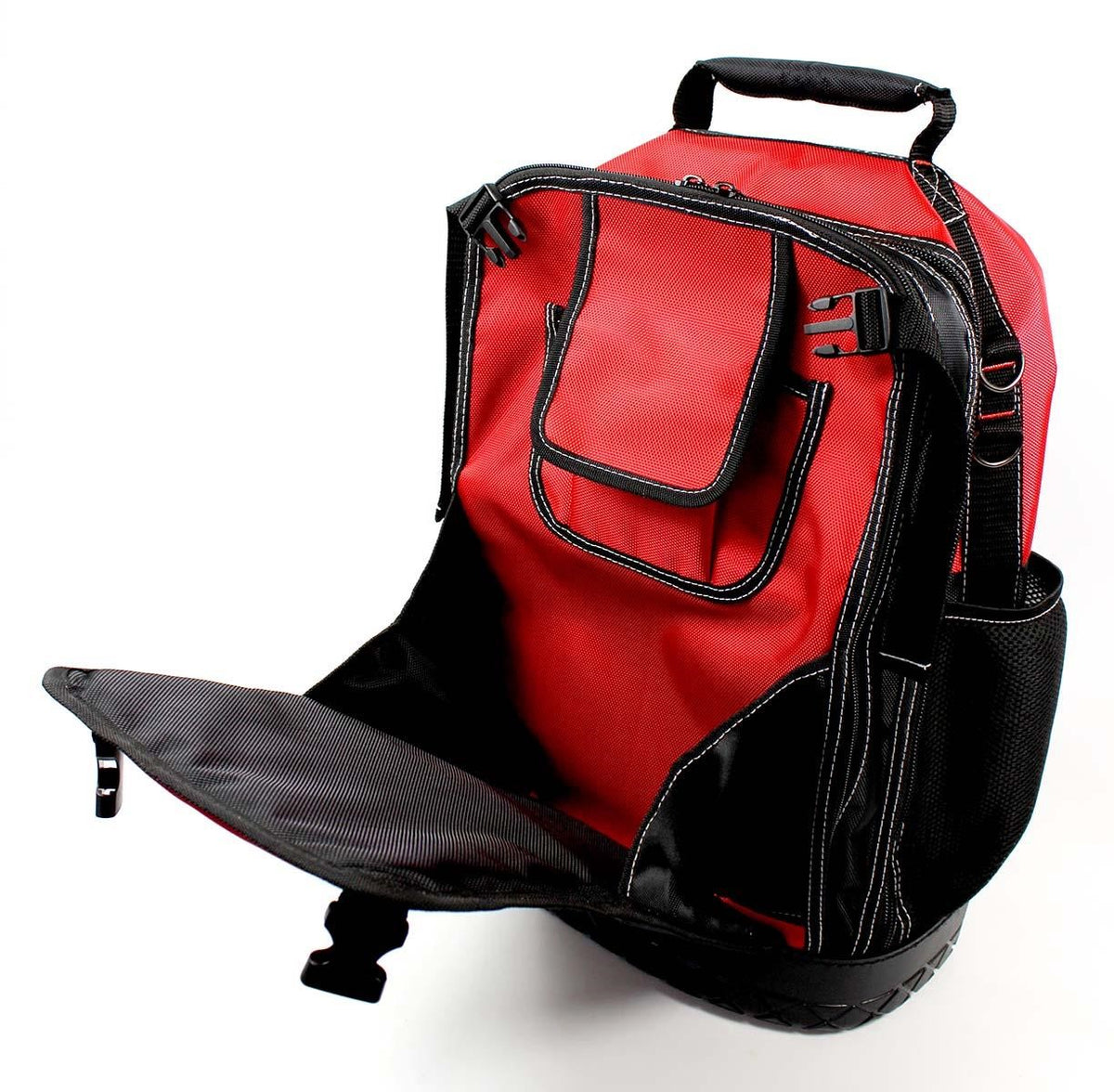

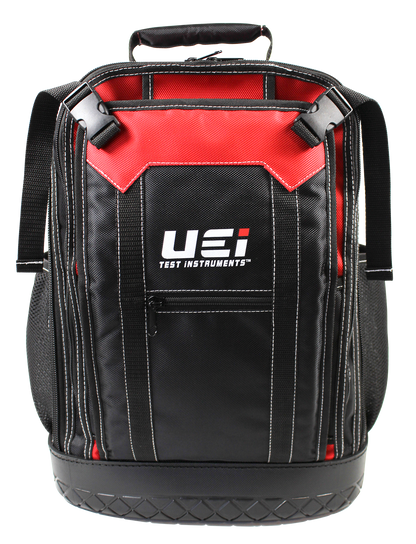

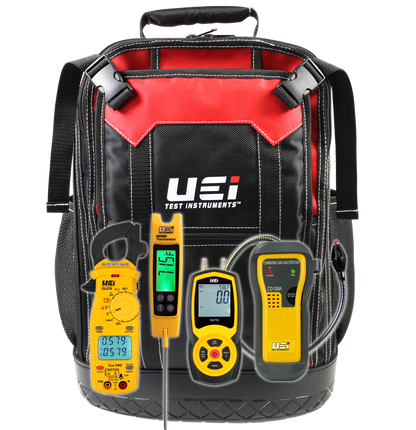

This Kit provides the recommended test instruments required by furnace start up manuals for proper installation and maintenance Most equipment warranties require initial install readings to be documented upon installation 520KIT is packed in this UEi Tool Backpack, which is built rugged with a waterproof base and features two compartments with inner pockets and an included D-clip This equipment helps confirm: Manufacturer requirements to maintain warranty, CFM via external static pressure test, gas flow pressure, system is safe from gas leaks, proper high voltage to power supply and ground, low voltage meets wiring diagram requirements.

Features and Benefits:

•Backlight.

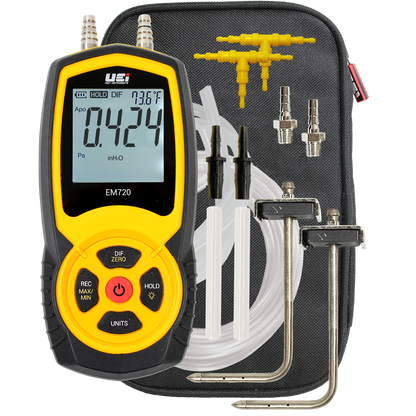

•Differential Pressure.

•Hold function.

•Min/Max.

•Auto Power Off.

•Dual Display.

•K-Type Temperature Inputs.

•Protective Boot/Overmolding.

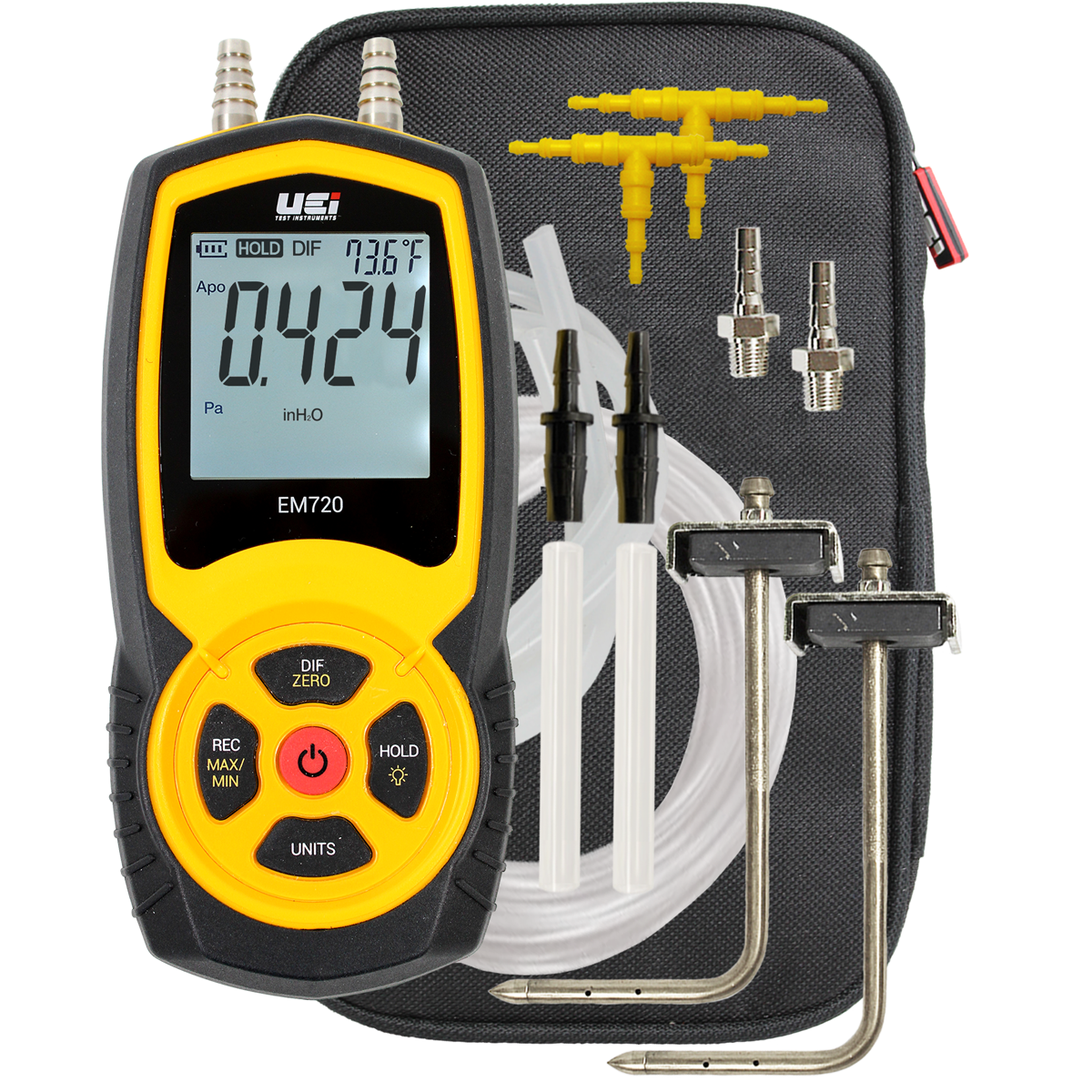

•Dual Pressure Input.

•Zero function.

•Selectable Units.

•Magnetic Mount.

•Hi-Resolution Accuracy.

•Folding Temperature Probe.

•Digital readings.

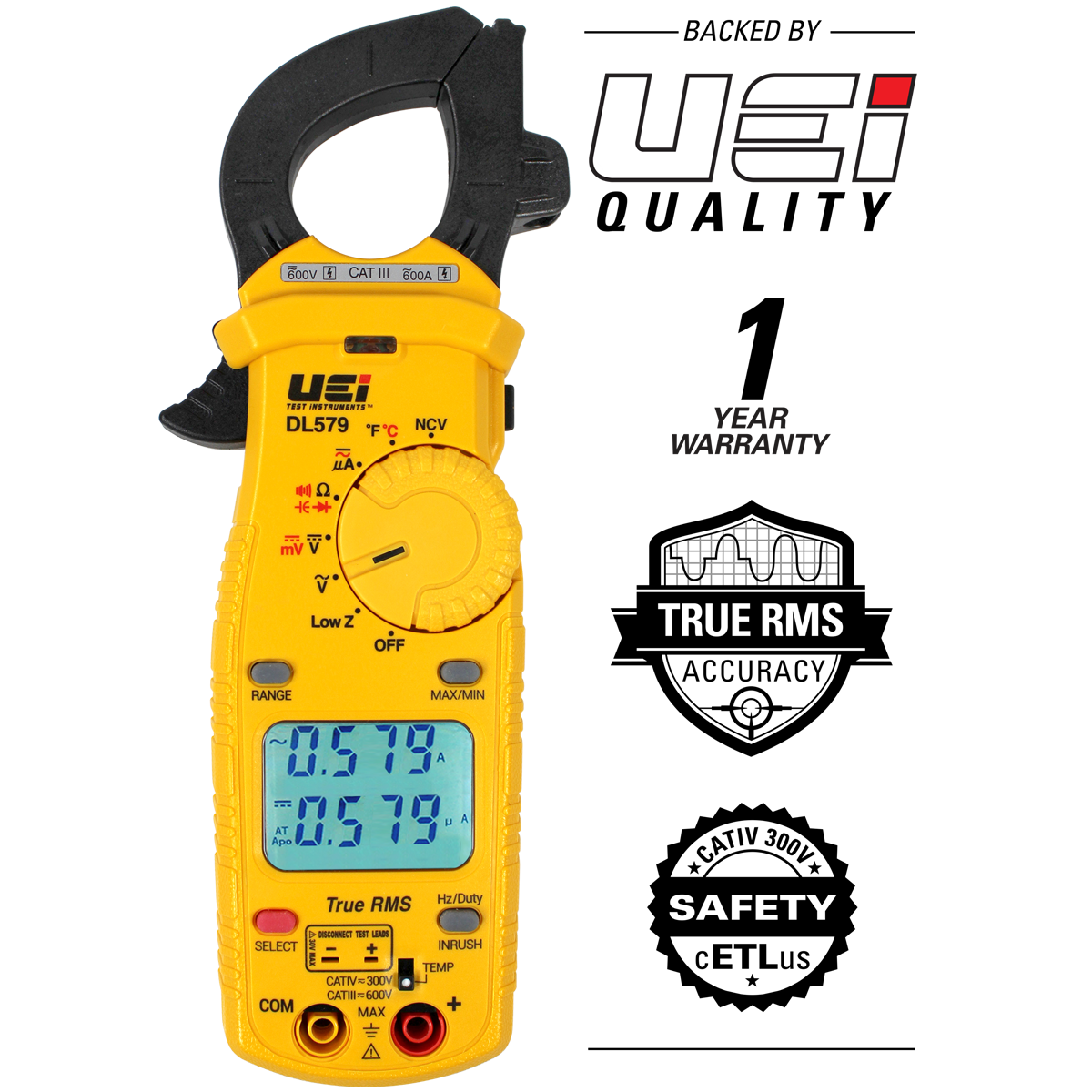

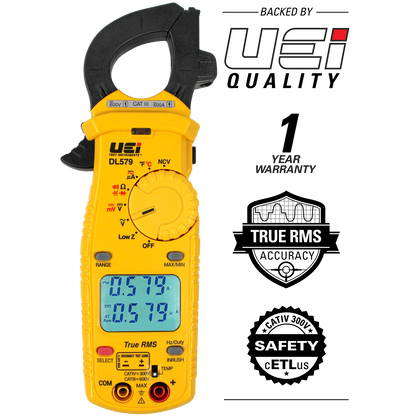

•TRMS.

•AC Current (Amps) 600A AC.

•AC Micro Current (Amps) 2000µA.

•DC Micro Current (Amps) 2000µA.

•AC Volts 750VAC.

•DC Volts 1000VDC.

•Resistance (Ohms) 60 MΩ.

•Capacitance (Farads) 6000µF.

•Frequency (Hertz) 99.99kHz.

•Duty Cycle (%) 1.0 to 99.0%.

•Detects Combustible Gas.

•Pressure ±60 InH2O.

•Ingress Protection IP42.

•CAT Rating CATIV 300V / CATIII 600V.

•RoHS compliant.

Specifications:
