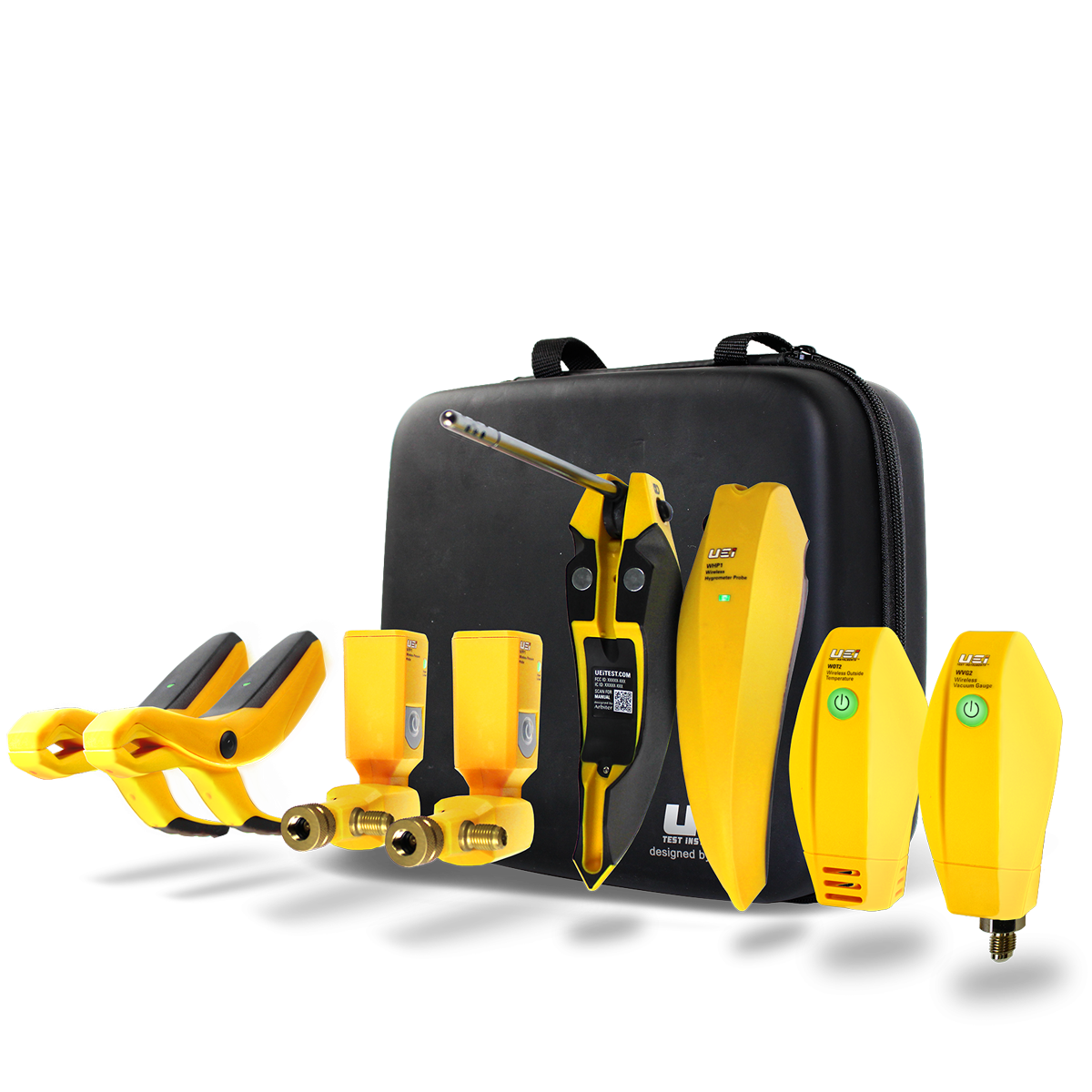

511KIT Heat Pump Install Kit

511KIT Heat Pump Install Kit

SKU: SKU: 511KIT Download PDF

Regular price Now $1,341.95
Regular price BEFORE   Sale price Now $1,341.95
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

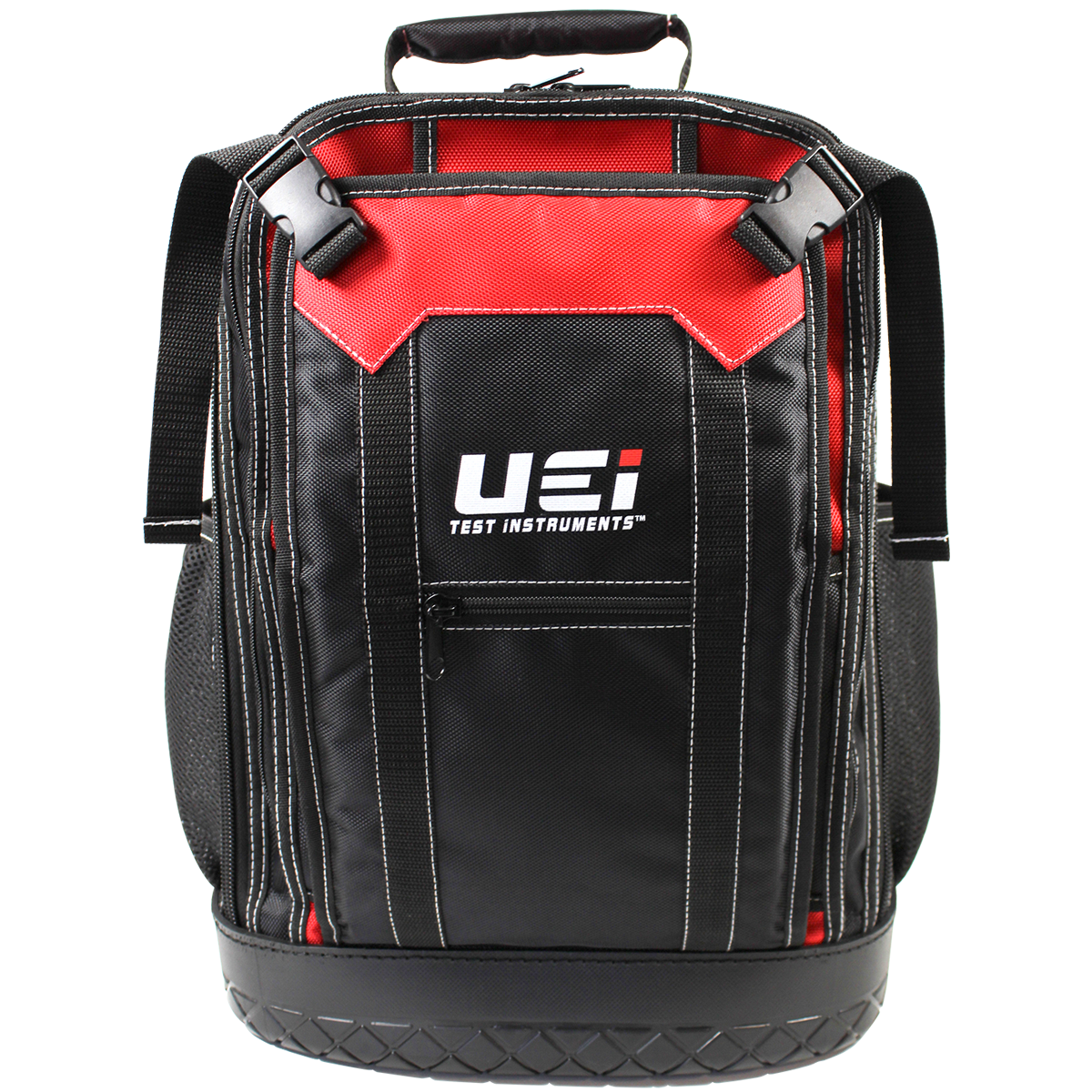

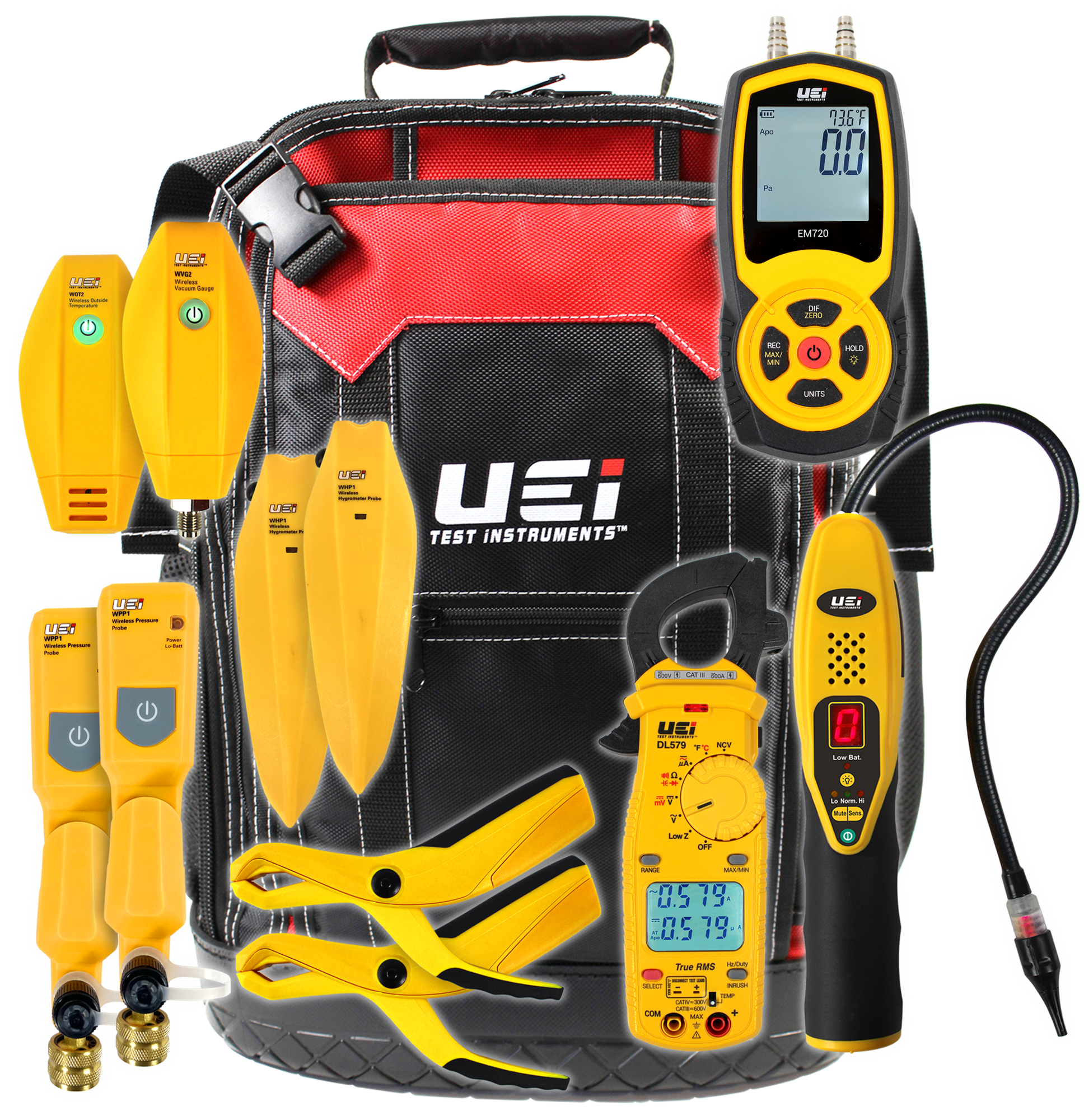

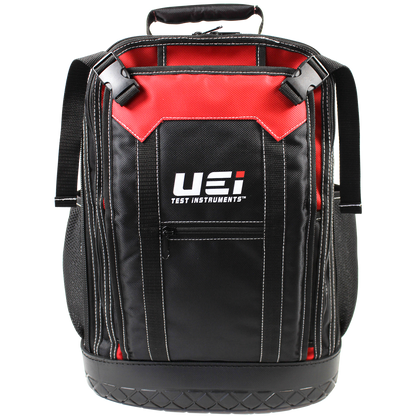

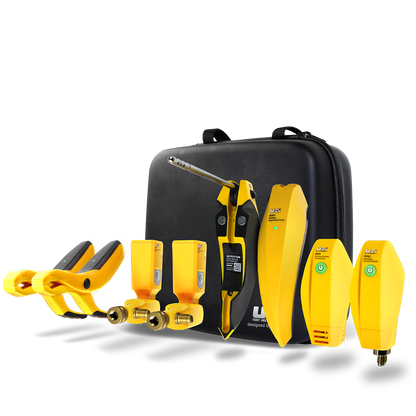

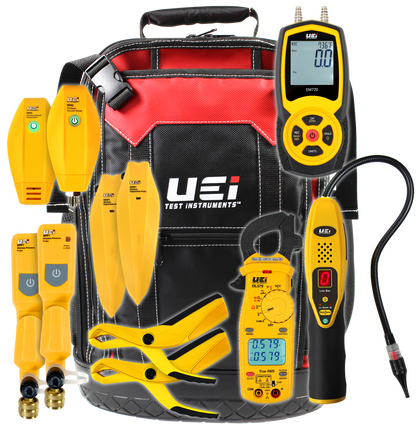

This Kit provides the recommended test instruments required by heat pump start up manuals for proper installation and maintenance Most equipment warranties require initial install readings to be documented upon installation 511KIT is packed in this UEi Tool Backpack, which is built rugged with a waterproof base and features two compartments with inner pockets and an included D-clip This equipment helps confirm: Manufacturer requirements to maintain warranty, CFM via external static pressure test, System is free from refrigerant leaks, Proper high voltage to power supply and ground, Low voltage meets wiring diagram requirements, Evacuation Suction & Liquid valves, Temperatures of Suction & Liquid lines, Superheat and Subcool values for adjustments.

Features and Benefits:

    •Hold: Yes.

    •Min/Max: Yes.

    •Auto Power Off: Yes.

    •Display Count: 6000.

    •Dual Display: Yes.

    •Temperature Inputs: K-Type.

    •Dual Pressure Input: Yes.

    •Digital Numeric Leak Indicator: Yes.

    •Digital: Yes.

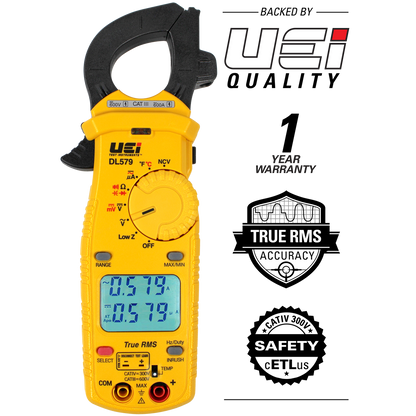

    •TRMS: Yes.

    •Continuity: Yes.

    •NCV Detection: Yes.

    •Low Z: Yes.

    •LRA Inrush: Yes.

    •Senses HFC, CFC, and HCFC Refrigerants and Blends: Yes.

Specifications:

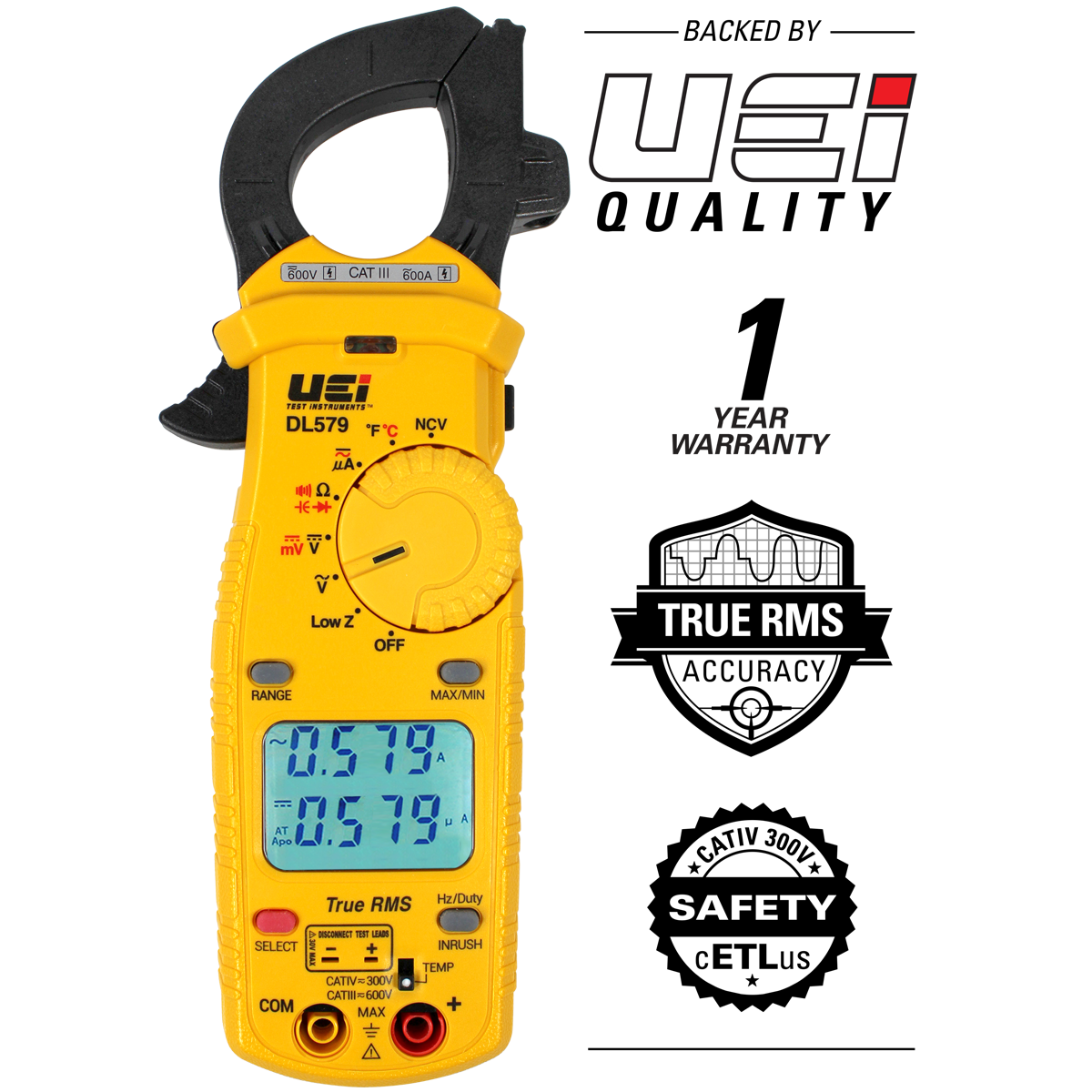

 AC Current (Amps) 600A AC
 AC Micro Current (Amps) 2000µA
 DC Micro Current (Amps) 2000µA
 AC Volts 750V AC
 DC Volts 1000V DC
 Resistance (Ohms) 60 MΩ
 Capacitance (Farads) 6000µF
 Temperature Range -328˚ to 2462˚F
 Frequency (Hertz) 99.99kHz
 Duty Cycle (%) 1.0 to 99.0%
 Hygrometer - Temp Range 32˚ to 140˚F
 Super Heat 32˚ to 180˚F
 Subcool 32˚ to 180˚F
 Vapor/Liquid Saturation 32˚ to 180˚F
 Relative Humidity 0% to 100%
 Detection Sensitivity .05 oz/year
 Pressure 0 to 725 PSIG

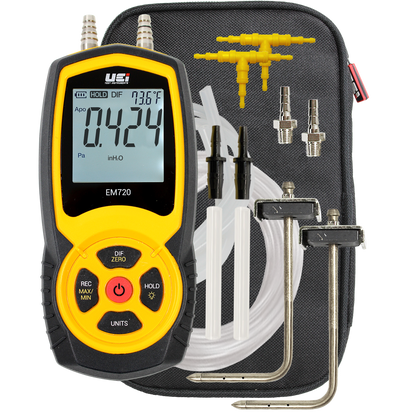

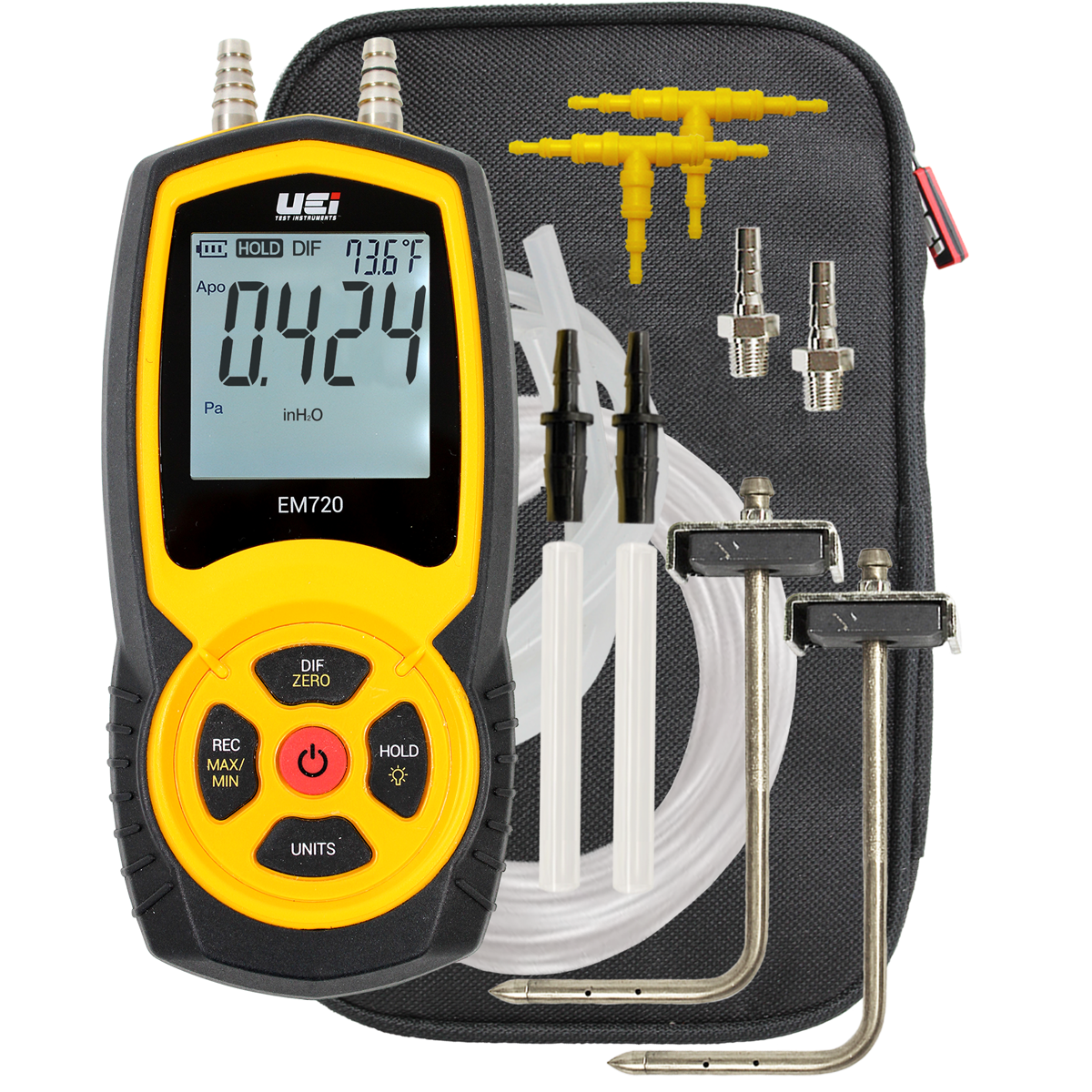

 Pressure Range ±60 InH2O
 Microns Range 0 to 20000 microns
 Ingress Protection IP42
 ETL Listed cETLus
 IEC 61010 61010-1: 2012
 CE Conformity Yes
 CAT Rating CATIV 300V / CATIII 600V
 RoHS Yes
 FCC/IC Compliant FCC
 Batteries AAA (4), AA (9), 9V
