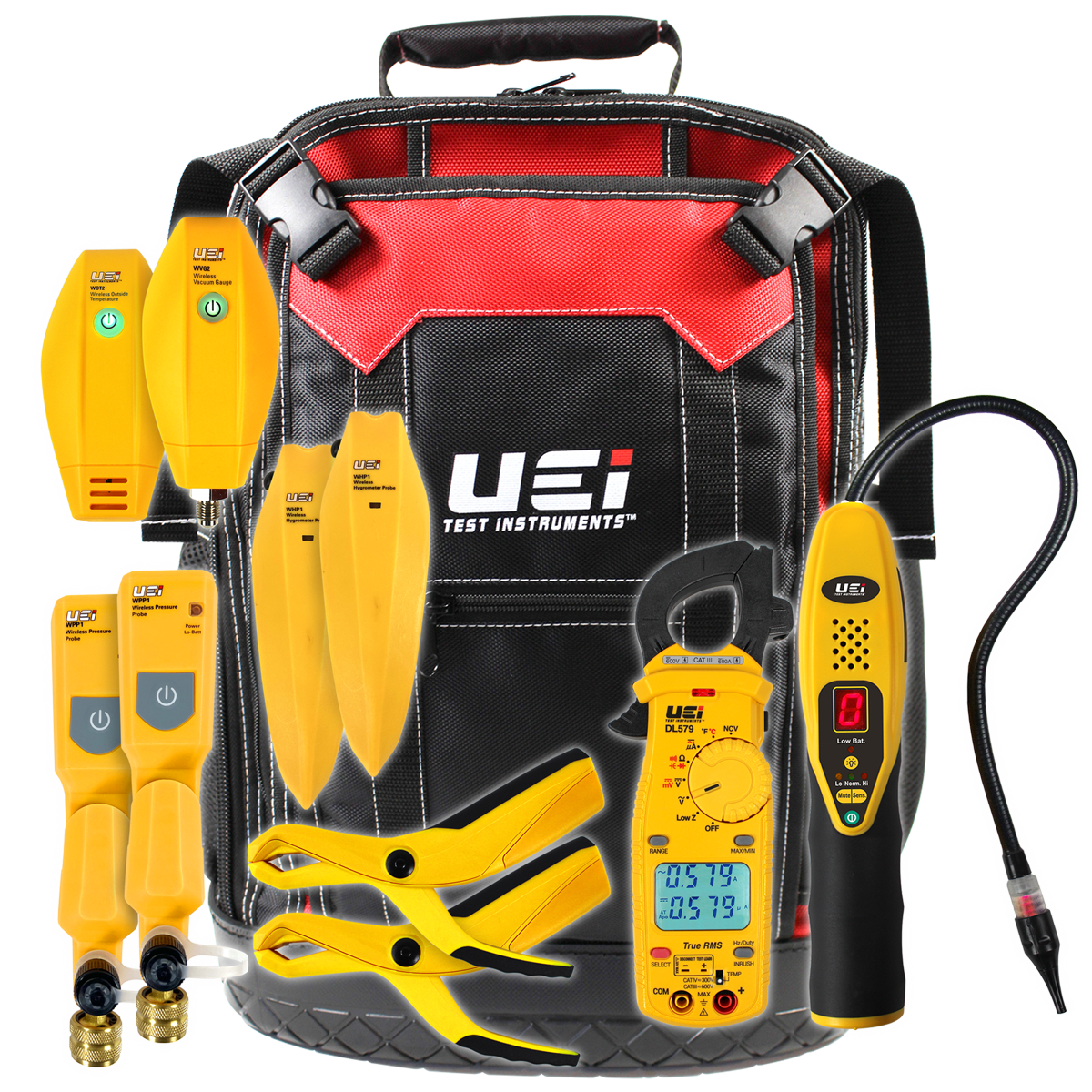

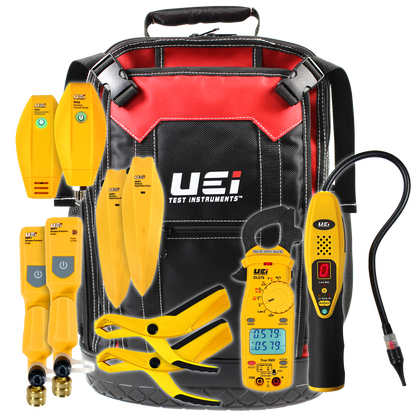

510KIT Condensing Unit Install Kit

510KIT Condensing Unit Install Kit

SKU: 510KIT Download PDF

Now $1,148.95
BEFORE   Now $1,148.95
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This kit provides the recommended test instruments required by condensing unit start up manuals for proper installation and maintenance Most equipment warranties require initial install readings to be documented upon installation Packed in the UEi Tool Backpack, which is built rugged with a waterproof base and features two compartments with inner pockets and an included D-clip The equipment helps confirm manufacturer requirements to maintain warranty, checks if the system is free from refrigerant leaks, ensures proper high voltage to power supply and ground, and low voltage meets wiring diagram requirements.

It also verifies evacuation suction & liquid valves, temperatures of suction & liquid lines, and superheat and subcool values for adjustments.

Features and Benefits:

    •Packed in a rugged UEi Tool Backpack with waterproof base.

    •Includes necessary test instruments for installation and maintenance.

    •Helps confirm manufacturer requirements to maintain warranty.

    •Checks for refrigerant leaks.

    •Monitors power supply and voltage meet required standards.

    •Verifies system temperature and superheat/subcool values.

Specifications:

 Hold Yes
 Min/Max Yes
 Auto Power Off Yes
 Display Count 6000
 Dual Display Yes
 Temperature Inputs K-Type
 Digital Numeric Leak Indicator Yes
 K-Type Input Yes
 Digital Yes
 TRMS Yes
 AC Current (Amps) 600A AC
 AC Micro Current (Amps) 2000µA
 DC Micro Current (Amps) 2000µA
 AC Volts 750V AC
 DC Volts 1000V DC
 Resistance (Ohms) 60 MΩ
 Diode Yes
 Capacitance (Farads) 6000µF
 Temperature -328˚ to 2462˚F
 Frequency (Hertz) 99.99kHz
 Duty Cycle (%) 1.0 to 99.0%
 Continuity Yes
 NCV Detection Yes
 Low Z Yes
 LRA Inrush Yes
 DC Microvolts 600mV
 AC Microvolts 600mV
 Hygrometer - Temp Range 32˚ to 140˚F
 Super Heat 32˚ to 180˚F
 Subcool 32˚ to 180˚F
 Vapor/Liquid Saturation 32˚ to 180˚F
 Relative Humidity 0% to 100%
 Detects Refrigerant
 Detection Sensitivity .05 oz/year
 Senses HFC, CFC, and HCFC Refrigerants and Blends Yes
 Pipe Clamp - temp range 32˚ to 180˚F
 Pressure 0 to 725 PSIG
 Pressure Range 0 to 20000 microns
 Ingress Protection IP42
 ETL Listed cETLus
 IEC 61010 61010-1: 2012
 CE Conformity Yes
 CAT Rating CATIV 300V / CATIII 600V
 RoHS Yes
 FCC/IC Compliant FCC
 SAE J2913 Yes
 ASHRAE 173-2012 Yes
 J2791 Certified Yes
 EN 14624 Certified Yes

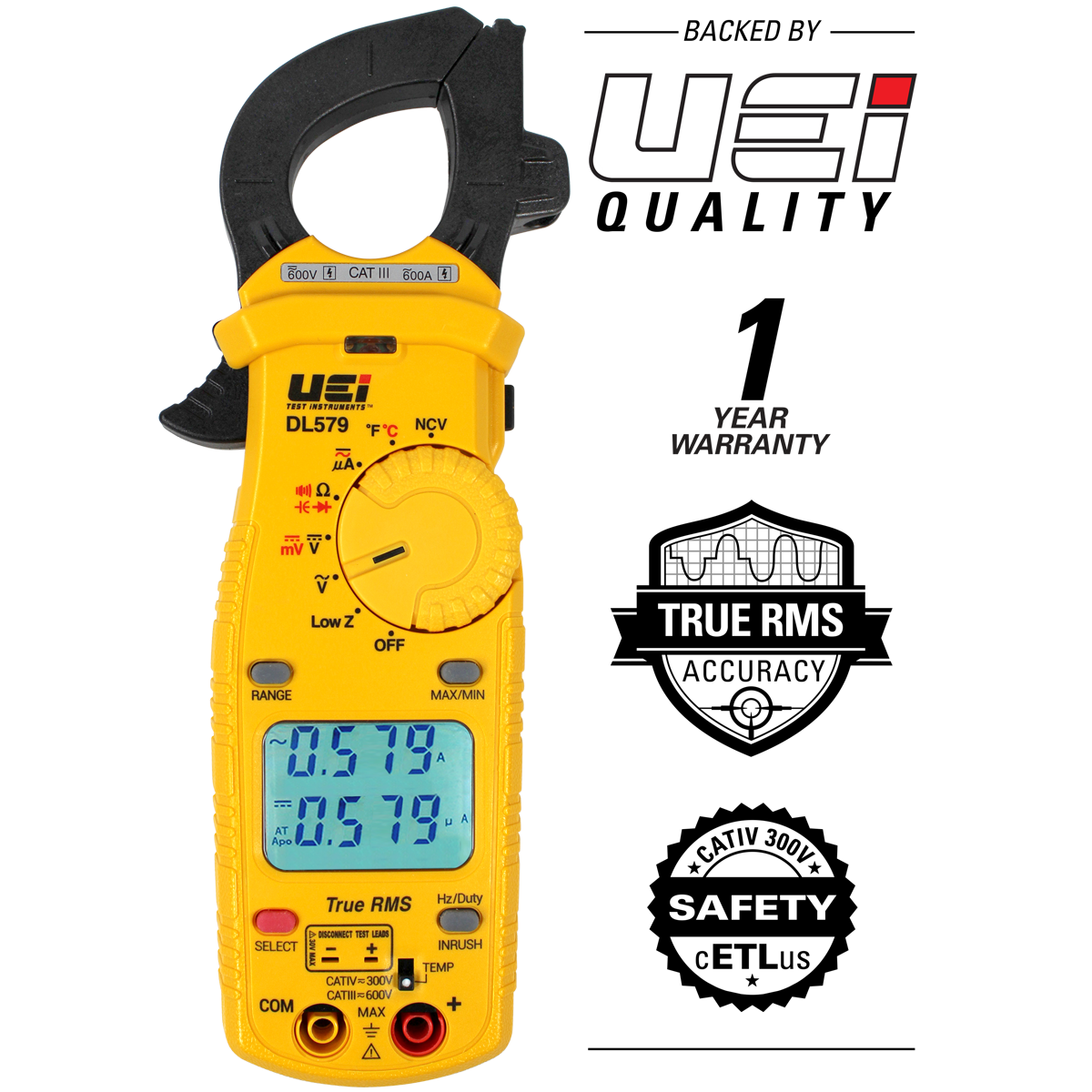

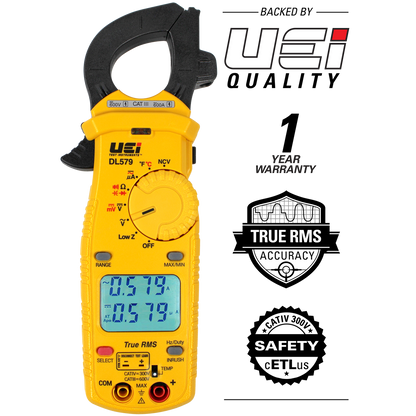

 Meter DL579

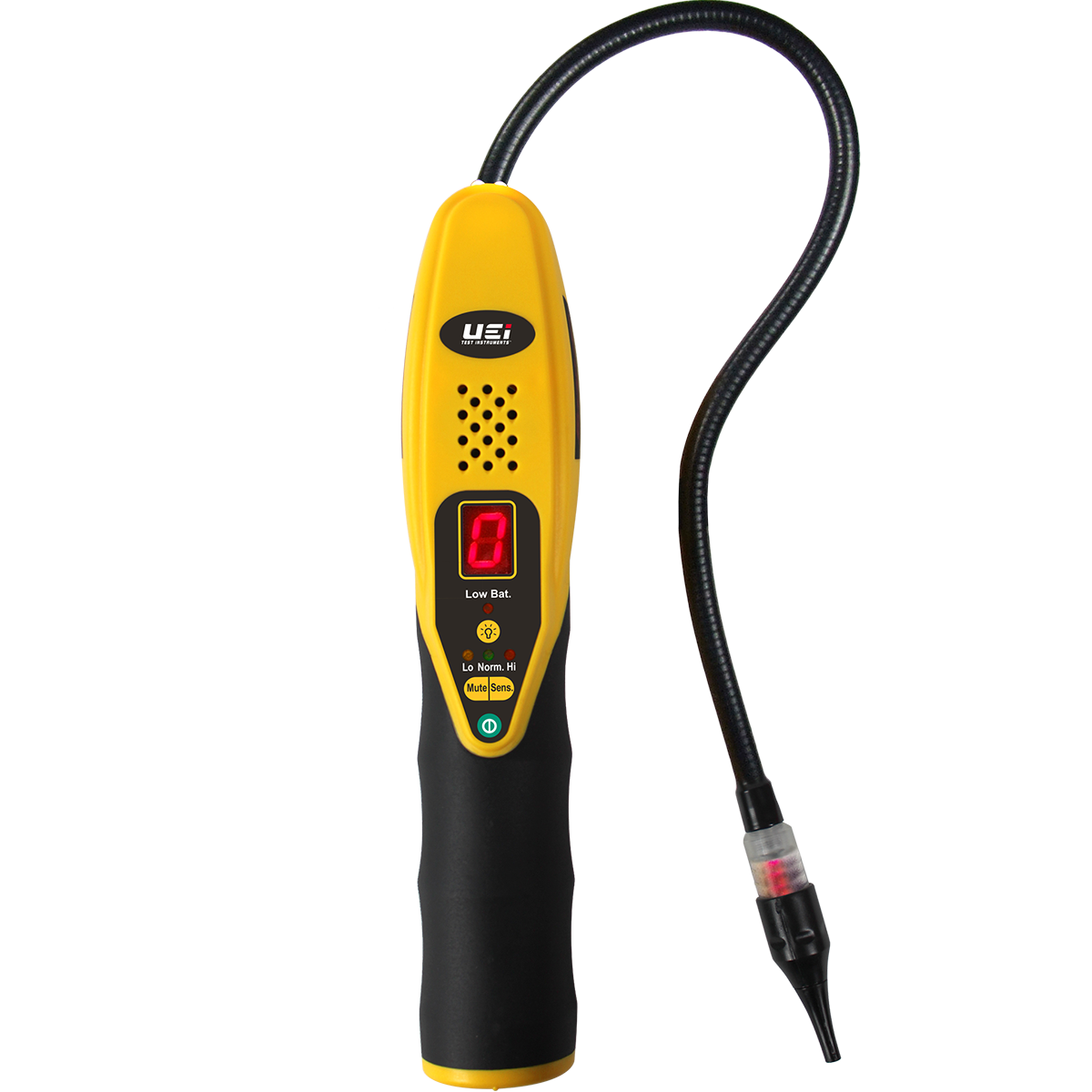

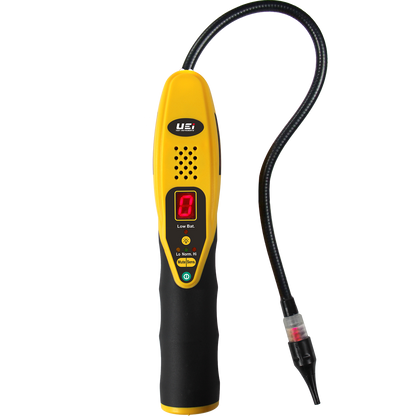

 Leak Detector RLD15B
 Batteries AAA (4), AA (9)

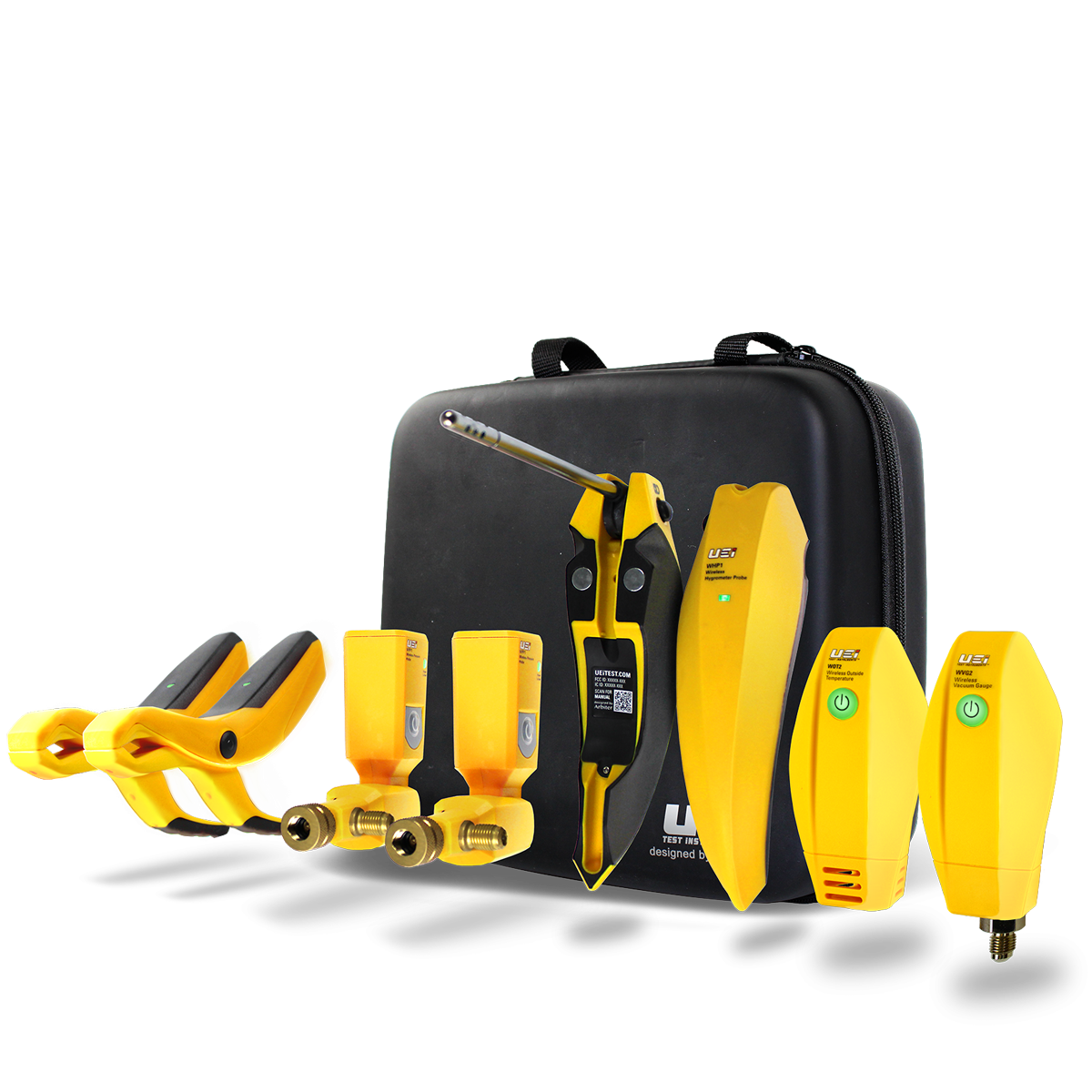

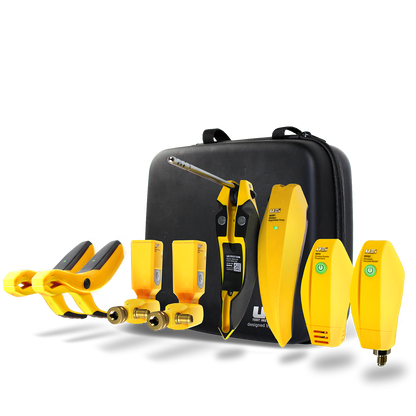

 Wireless Outside Temperature Probe WOT2
 Wireless Hygrometer Probe WHP1 (2)
 Wireless Vacuum Gauge Probe WVG2
 Wireless Pressure Probe WPP1 (2)
 Wireless Pipe Clamp Probes WPC2 (2)

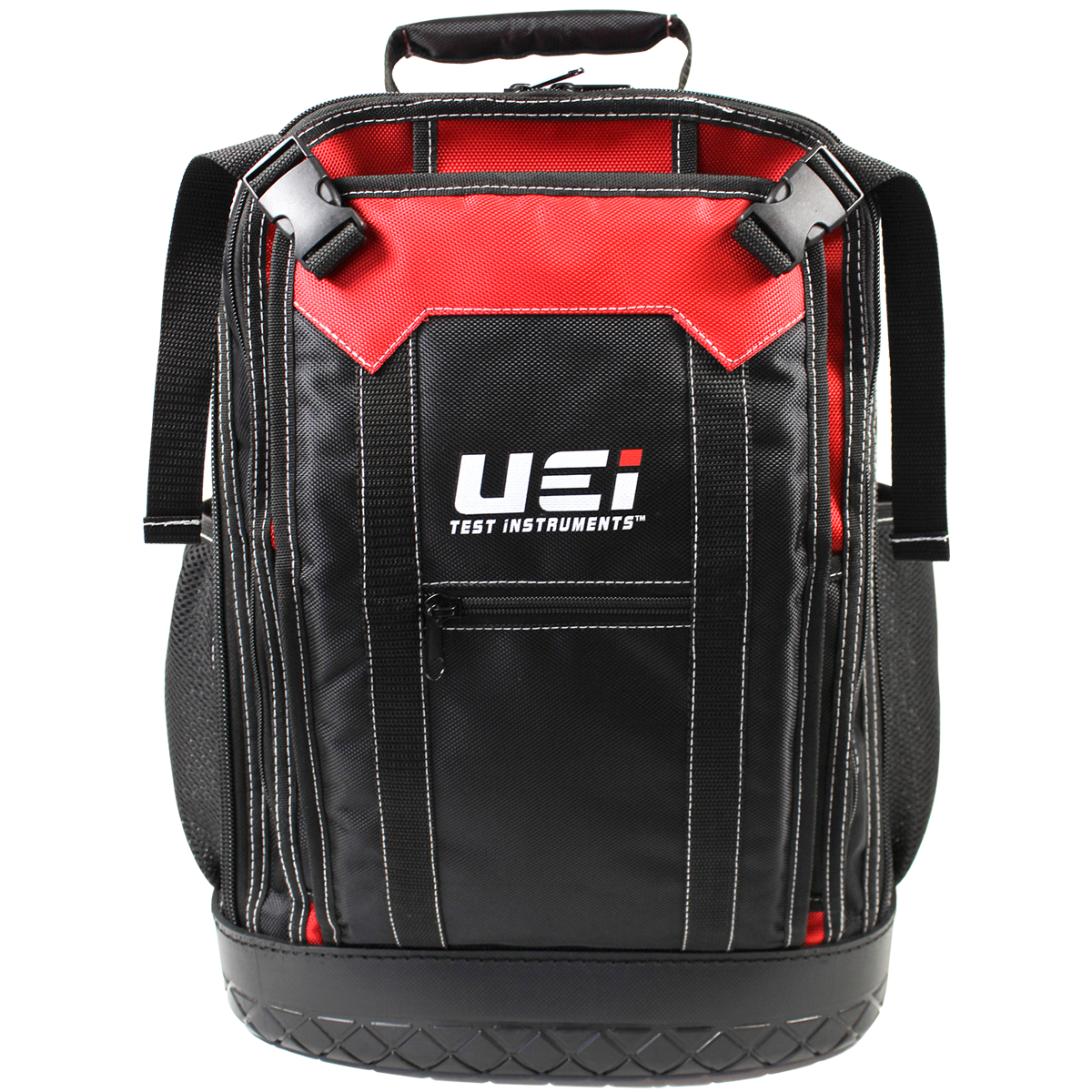

 Tool Backpack AC550
