5100 Flowmeter

5100 Flowmeter

SKU: 5100-03S-20 Download PDF

Now $62,500.00
BEFORE   Now $62,500.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

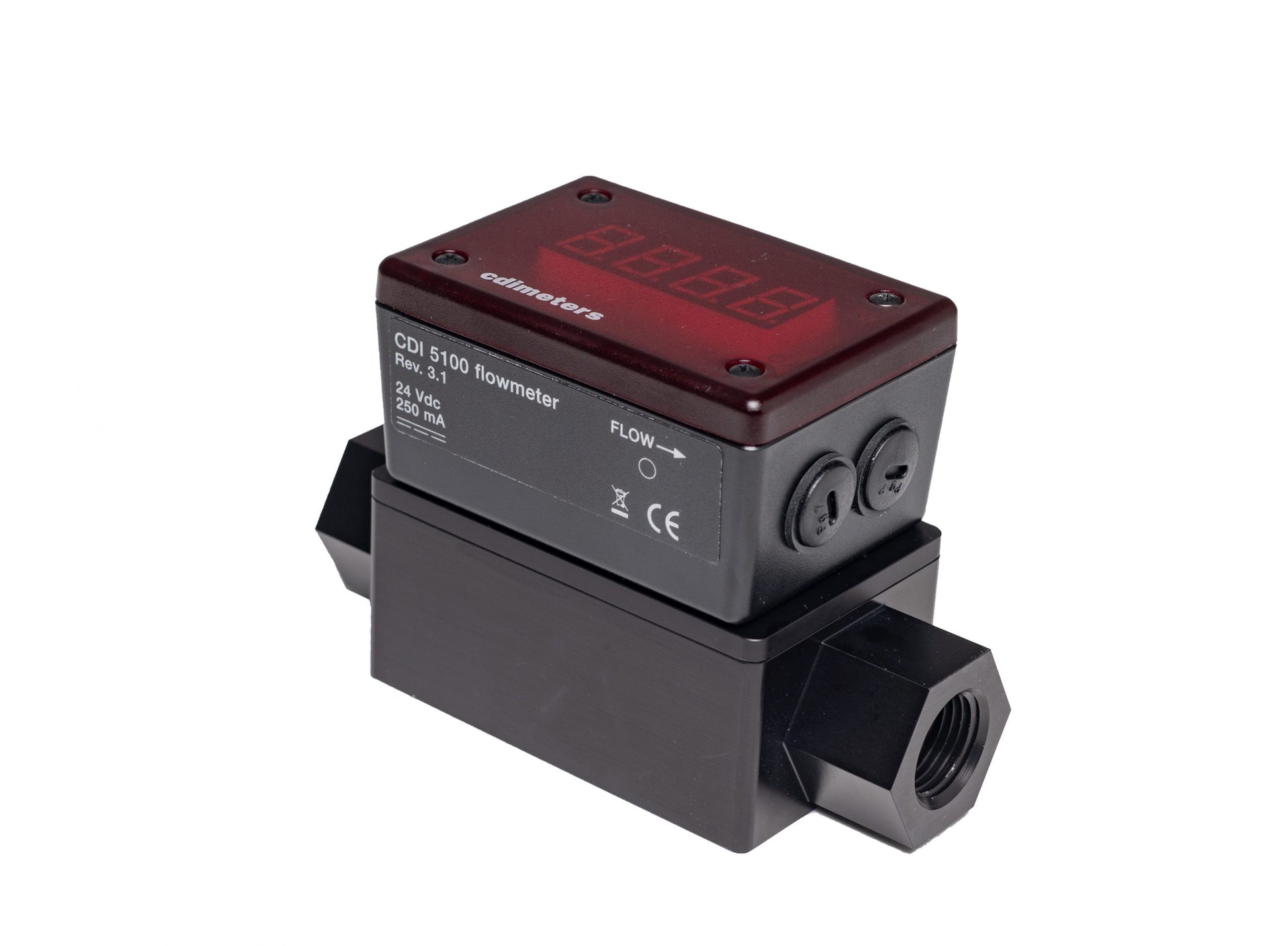

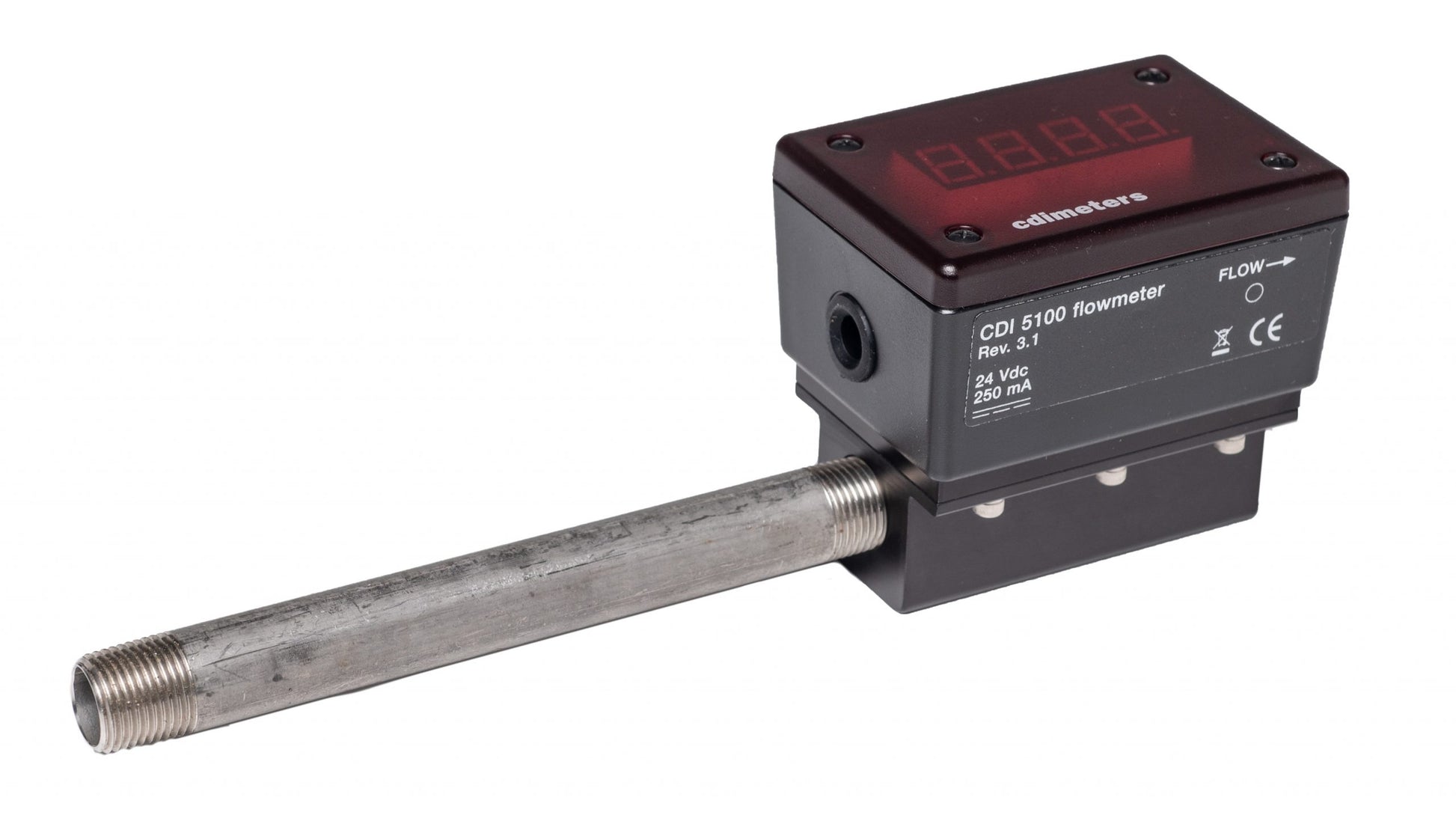

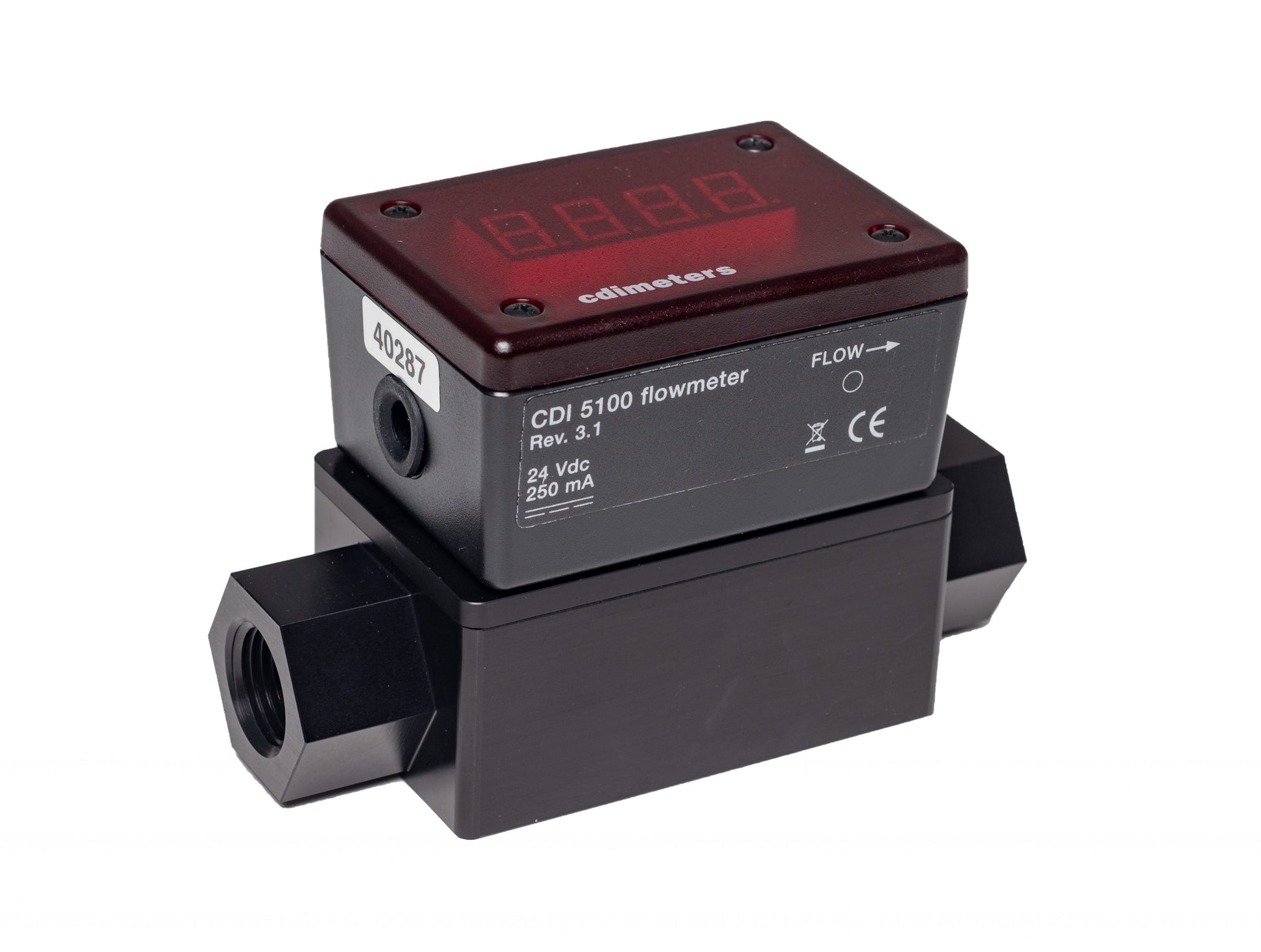

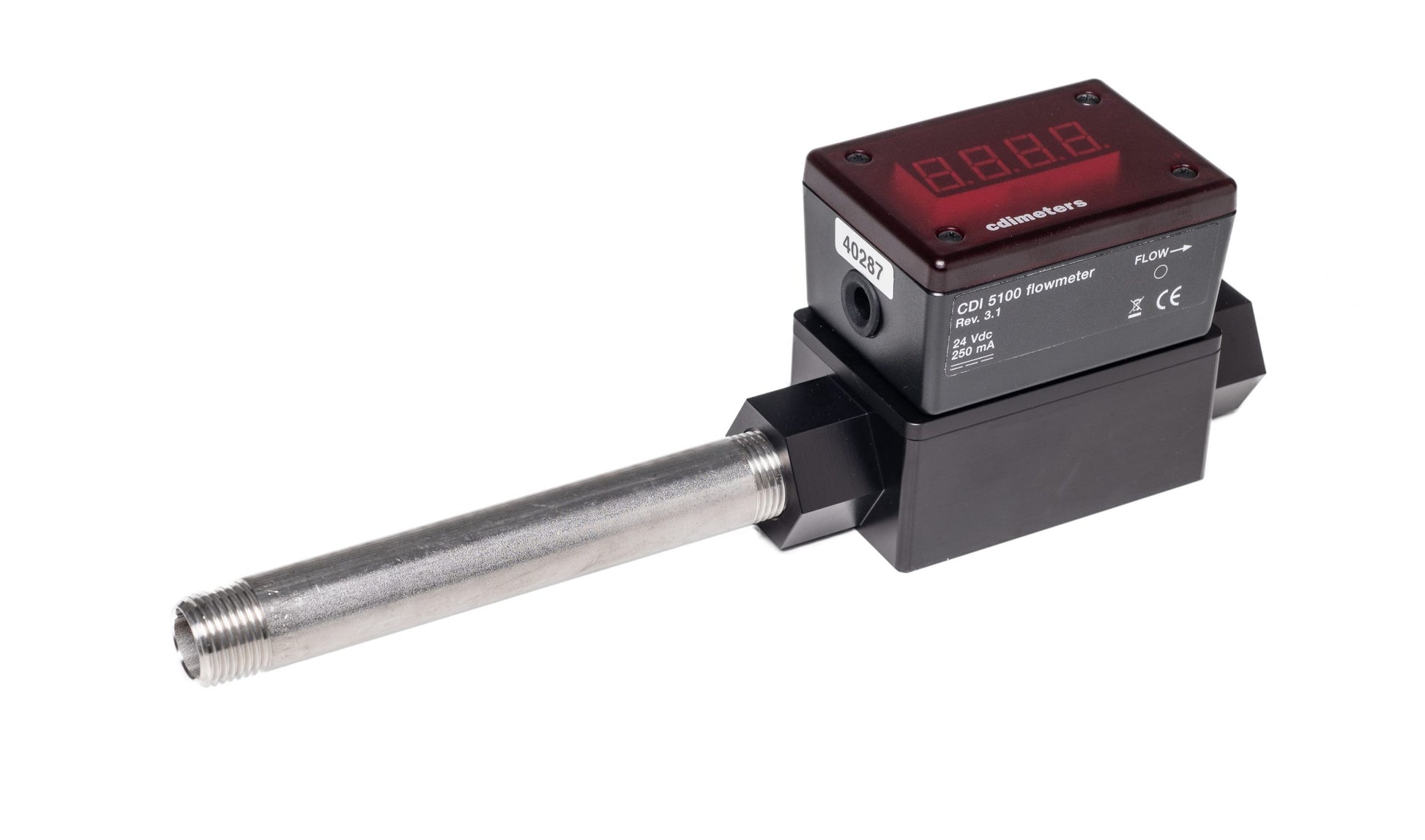

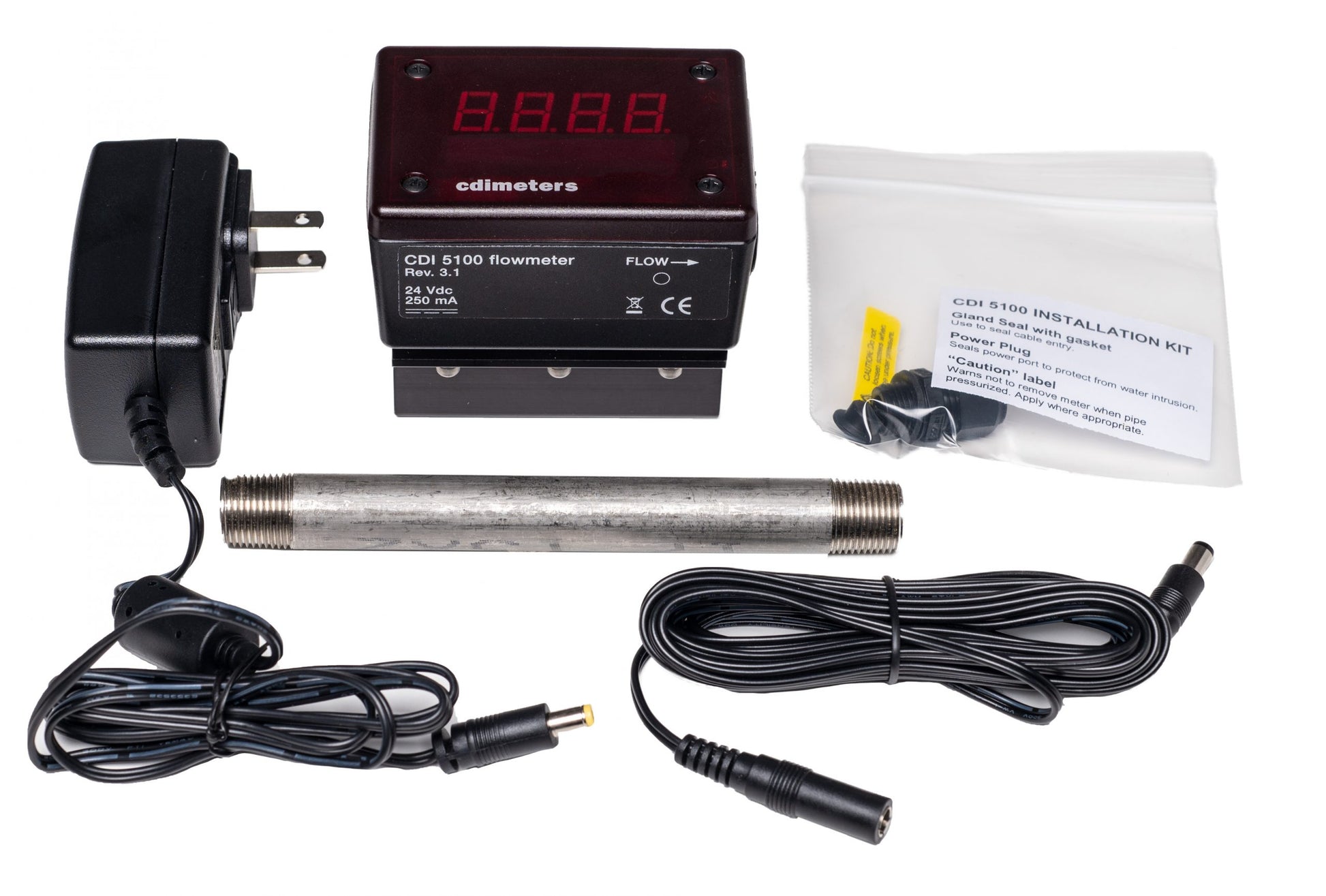

The CDI 5100 extends the capability of the CDI 5000 series to the low flow rates found in many point-of-use applications It does this by concentrating the flow into a small area that is chosen to optimize the tradeoff between pressure drop and low-flow sensitivity Used in its intended flow range and at a pressure of 100 psig, the 5100 will create a pressure drop no greater than one psi Accurate measurement of small point-of-use flows, minimal pressure drop, weather resistant and surge protected, milliamp output, pulse output convertible to threshold output, user-configurable scaling, filtering and units of measure, optional wired outputs for networking are key features of this device.

Features and Benefits:

    •Accurate measurement of small point-of-use flows.

    •Minimal pressure drop.

    •Weather resistant and surge protected.

    •Milliamp output.

    •Pulse output convertible to threshold output.

    •User-configurable scaling, filtering and units of measure.

    •Optional wired outputs for networking.

Specifications:

 Nominal Pipe Sizes 3/8 in. - 1/2 in.
 Accuracy 5 percent of reading plus 1 percent of range at air temperatures between 20 and 120 degrees Fahrenheit
 Fluids Compressed Air, Nitrogen
 Operating Pressure 200 psig maximum
 Input Power 250 mA at 24 Vdc
 Output Resistance 600 Ohms max.
 Exposed Materials Anodized aluminum, aluminum, stainless steel, gold, thermal epoxy and Viton (seal)

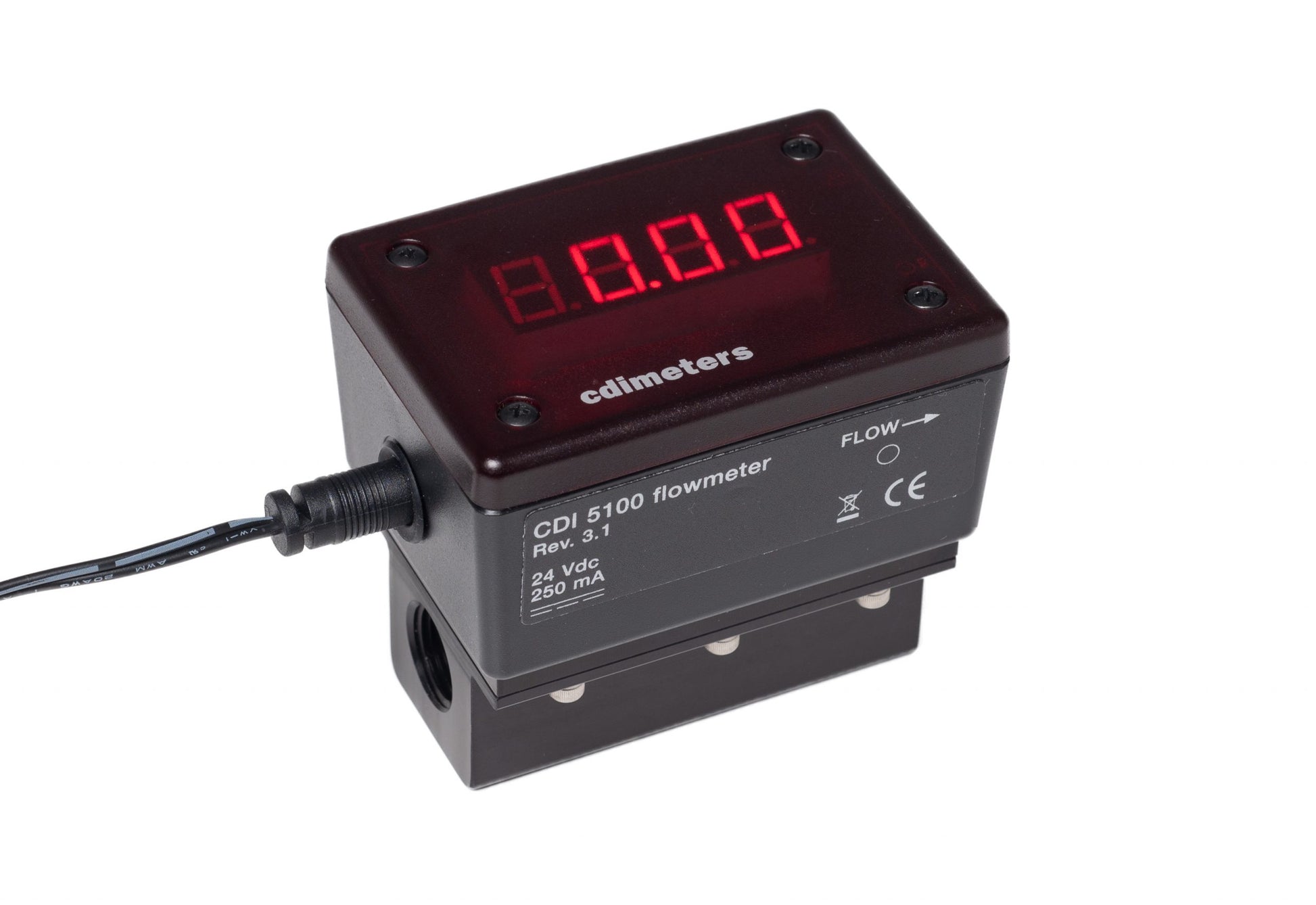

 Display Four digit LED display
 Response Time One second to 63 percent of change in value at flows above 30 percent of range.
