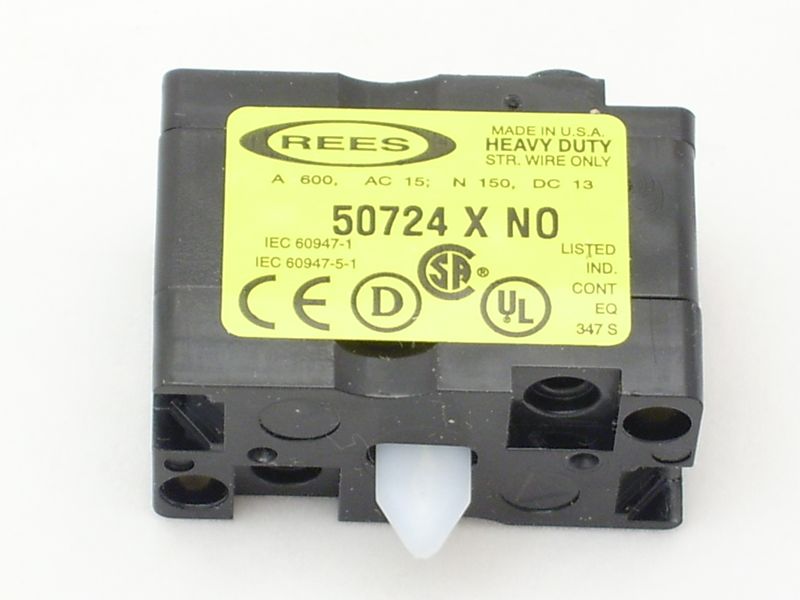

50724-000 Contact Blocks

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This contact block is designed for use on ALL REES push button operators and selector switches Each captive terminal on the contact block will accept (2) #14 AWG stranded wires Gold plated contacts eliminate high resistance tarnishing Listed under UL 508 – File # E 58589 Certified under CSA C222 – File # LR 3648 CE Compliant IEC/EN 60947-5-1 The contact block is classified as HEAVY DUTY with an electrical rating of A600 / N150 and is suitable for operating temperatures ranging from +32°F and above.

Features and Benefits:

•Designed for use with ALL REES push button operators and selector switches.

•Accepts (2) #14 AWG stranded wires per captive terminal.

•Gold plated contacts to prevent high resistance tarnishing.

•Heavy duty electrical ratings (A600 / N150).

•Listed under UL 508 and certified under CSA C22.2.

•CE compliant with IEC/EN 60947-5-1.

Specifications:
