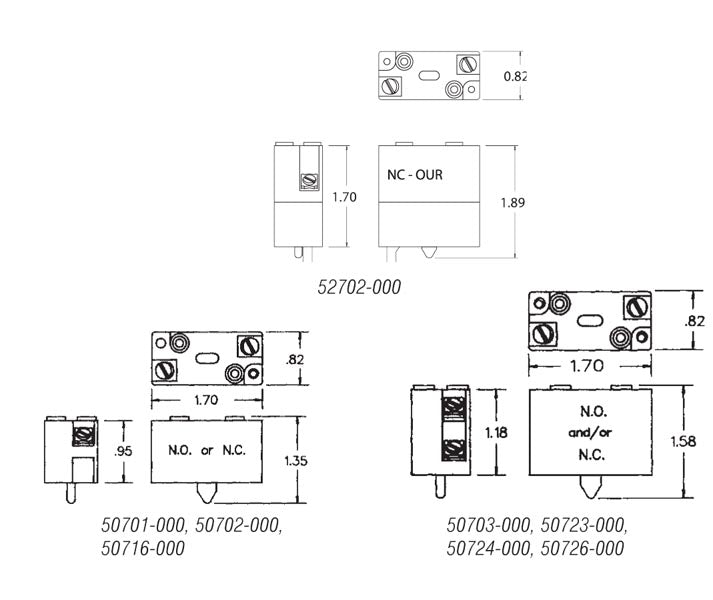

50723-000 Contact Blocks
50723-000 Contact Blocks
SKU: SKU: 50723000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This contact block is specifically designed for all REES push button operators and selector switches Each captive terminal on the contact block can accommodate two #14 AWG stranded wires Gold plated contacts are used to prevent high resistance tarnishing, ensuring reliable performance The contact block is recognized as 'HEAVY DUTY – A600 / N150' and is listed under UL 508 – File # E 58589, certified under CSA C22.
2 – File # LR 3648, and is CE compliant with IEC/EN 60947-5-1.
Features and Benefits:
•Designed for use on all REES push button operators and selector switches.
•Each terminal accepts two #14 AWG stranded wires.
•Gold plated contacts eliminate high resistance tarnishing.
Specifications:
| Electrical Ratings | HEAVY DUTY – A600 / N150 |
| UL Compliance | Listed under UL 508 – File # E 58589 |
| CSA Compliance | Certified under CSA C22.2 – File # LR 3648 |
| CE Compliance | CE Compliant IEC/EN 60947-5-1 |
| Environmental Temperature Range | +32°F and above |
| Approx. Shipping Weight | 0.10 lb |
